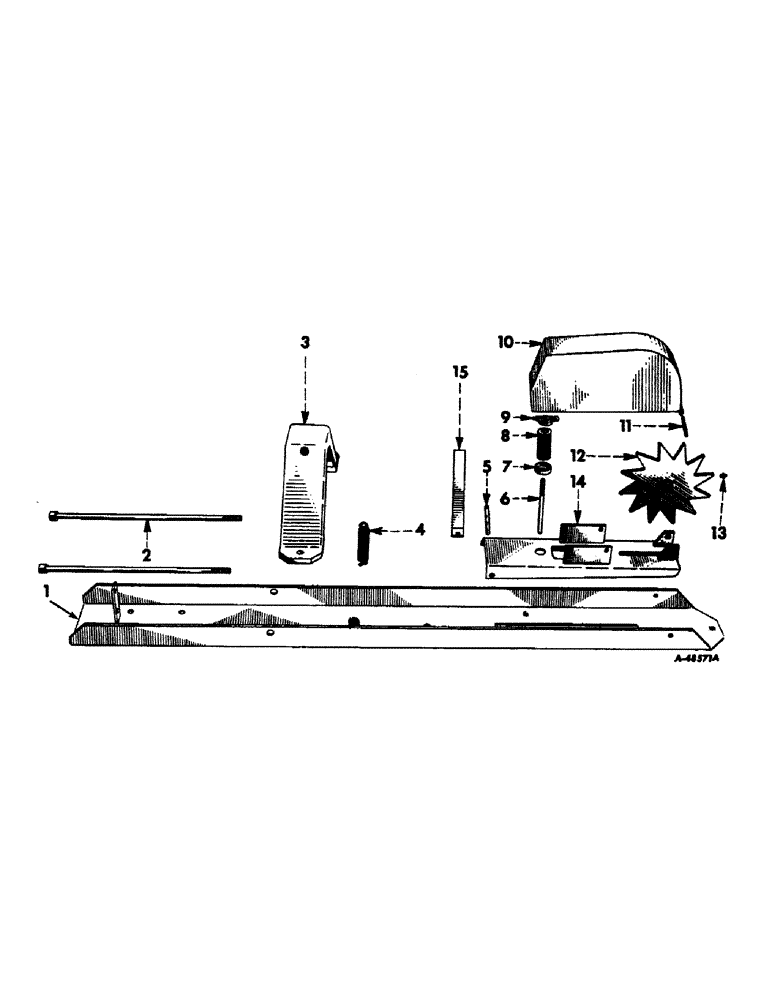

Запчасти Case IH 46 (79) - HYDRAULIC BALE DENSITY CONTROL, CHANNEL, FRAME, SHIELD AND WHEEL

662428R91

HYDRAULIC BALE DENSITY CONTROL (Machine attachment), Composed of -

1шт.

CHANNEL, FRAME, SHIELD AND WHEEL

1шт.

HYDRAULIC JACK

1шт.

PUMP

1шт.

1

662455R91

CHANNEL, tension, bale chamber, upper (Welded assembly)

1шт.

2

18130R1

BOLT, tie, bale tension channel

2шт.

102639

NUT,5/8"-11, G5

4шт.

12258R1

WASHER

plain, 21/32" ID x 1-1/4" OD x no. 11 ga.

2шт.

3

662458R91

BEAM, upper tension channel (Welded assembly)

1шт.

Q107

WASHER

plain, 13/32" ID x 1-3/16" OD x no. 16 ga.

2шт.

4

PO91

SPRING

retainer, tension channel

1шт.

5

663110R1

PIN, pivot, pump and star wheel frame

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

659420R1

STUD, adjusting spring

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

516569R1

WASHER

spring

1шт.

8

659430R1

SPRING, pressure adjustment

1шт.

9

659426R1

NUT, adjusting spring

1шт.

10

659413R91

SHIELD, pump and star wheel (Welded assembly)

1шт.

11

659424R1

ROD, hinge, shield

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

2шт.

Q392

WASHER

plain, 9/32" ID x 3/4" OD x no. 16 ga.

4шт.

12

659403R1

WHEEL, star (Welded assembly)

1шт.

18428R1

BOLT, carriage, 1/2-13NC x 3-1/2"

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, slotted, hex., 1/2-13NC

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

109368

FITTING, lubrication, straight, 5/16"

1шт.

14

659404R91

FRAME, pump and star wheel (Welded assembly)

1шт.

15

660199R1

STRAP, bale chamber

1шт.
