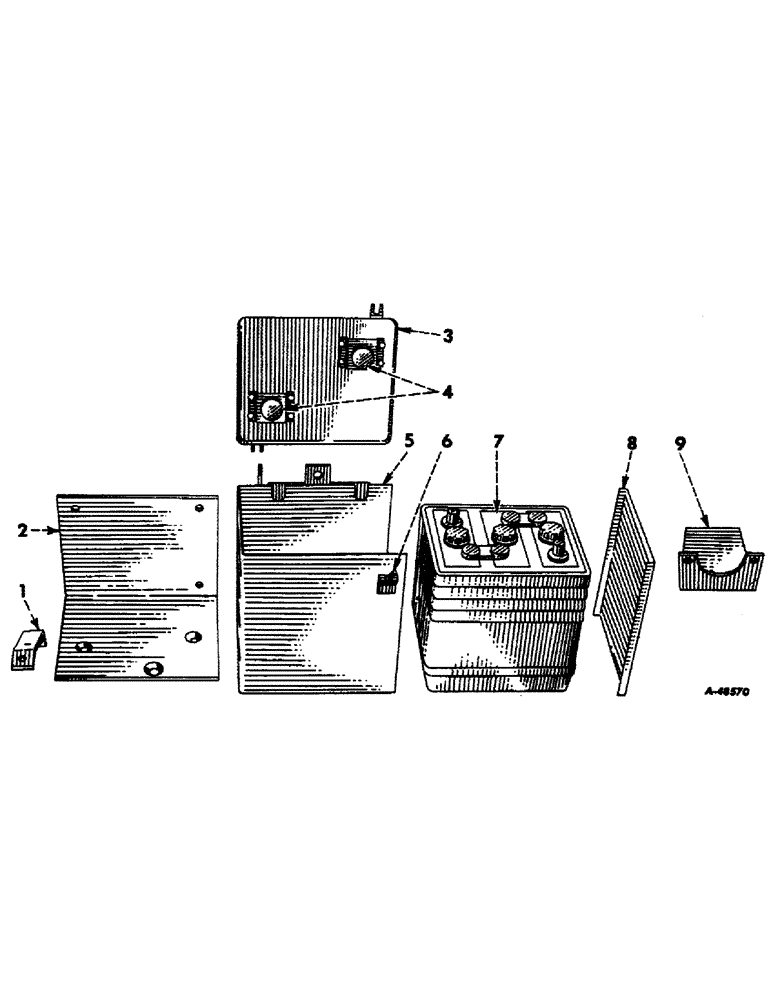

Запчасти Case IH 46 (77) - JACKSTAND ATTACHMENT, SPECIAL, BATTERY BOX

1

662345R1

BRACKET, battery support, rear (B)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1" (B)

1шт.

102635

NUT,3/8"-16, G5

(B) 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

1шт.

2

662347R2

SUPPORT, battery box

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1" (B)

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4" (B)

1шт.

102635

NUT,3/8"-16, G5

(B) 3/8"-16, G5

5шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC (B)

1шт.

114672

SCREW

slotted-fl-hd., 3/8-16NC x 1" (B)

2шт.

110235

SCREW, slotted-fl-hd., 7/16-14NC x 3/4" (B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (B) 7/16"

1шт.

3

661226R91

COVER, battery box (Welded assembly) (B)

1шт.

4

51690D

RUBBER, battery hold-down (B)

2шт.

5

661232R91

BODY, battery box (Welded asembly) (B)

1шт.

6

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

battery box cover (B)

2шт.

665621R1

NUT, wing, 1/4-20NC (B)

2шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x no. 16 ga. (B)

2шт.

7

372656R91

BATTERY, (Auto-lite) (6 volt) (B)

1шт.

8

661236R1

BOX, battery, front (B)

1шт.

9

659967R1

SUPPORT, tractor battery cable (C)

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach., hex-hd., 5/16-18NC x 3/4" (C)

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC (C)

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (C) 5/16"

2шт.

69510DA

CABLE

battery ground (B)

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4" (B)

1шт.

102635

NUT,3/8"-16, G5

(B) 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

1шт.

663457R91

CABLE, battery starting switch (B)

1шт.

662341R91

CABLE, starter and ground, engine (C)

1шт.

17766

BOLT, mach., hex-hd., 3/8-16NC x 4-1/2" (C)

1шт.

102637

NUT,1/2"-13, G5

(C) 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (C) 1/2"

1шт.

659962R91

CABLE, tractor battery (C)

1шт.

56278D

CLIP

cable (For 3/8" bolt) (B & C)

1шт.

56277D

CLIP, cable (For 1/2" bolt) (B)

1шт.

56277D

CLIP, cable (For 1/2" bolt) (C)

3шт.

1001721R1

DECALCOMANIA, "arrow" (On crank wheel)

1шт.

52118D

GROMMET

battery box (B)

2шт.

662425R91

JACK, lifting, assembly (For listing of component parts see "Jackstand attachment" unit)

1шт.
