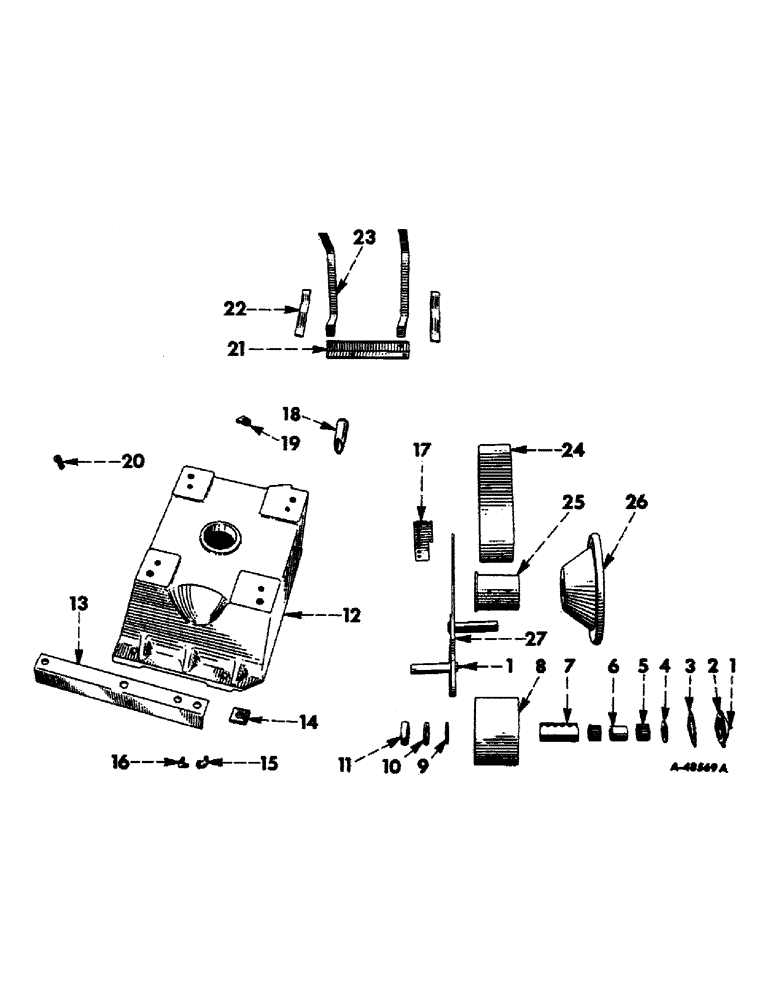

Запчасти Case IH 46 (74) - WISCONSIN ENGINE ATTACHMENTS SPECIAL, MOUNTING PARTS

MOUNTING PARTS

1шт.

BATTERY BOX

1шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

2

659489R1

CAP, hub, idler pulley

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

mach., hex-hd., 5/16-18NC x 1"

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

659494R1

GASKET, idler pulley hub cap

1шт.

4

659514R1

WASHER, thrust, idler

1шт.

659517R1

BOLT, special, 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

511752R91

BEARING, ROLLER

BEARING, idler pulley

2шт.

6

659506R1

SPACER

idler pulley bearing

1шт.

7

451894R1

RACE, outer, split sleeve

1шт.

8

659490R1

PULLEY, idler, engine

1шт.

9

615237R1

WASHER

plain, 1-1/16" ID x 2" OD x no. 16 ga.

1шт.

10

7049H

WASHER, felt, 1" ID x 2" OD x 5/16" thick

1шт.

11

659493R1

CUP, retainer, idler

1шт.

12

663935R21

SUPPORT, w/bushing, engine

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

mach., hex-hd., 1/2-13NC x 1-3/4"

4шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, hex., 7/16-14NC (Special)

4шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

3шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

PO105341/2

WASHER, plain, 15/32 x 1-1/2" x no. 11 ga.

1шт.

42274H

SPACER

WASHER, plain, 15/32 x 7/8 x no. 7 ga.

1шт.

13

664605R1

REINFORCEMENT, bale chamber

1шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

carriage, 7/16-14NC x 1-1/2"

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

1шт.

17447R1

BOLT

mach., hex-hd., 7/16-14NC x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, hex., 7/16-14NC (Special)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

42274H

SPACER

WASHER, plain, 15/32 x 7/8" x no. 7 ga.

2шт.

14

662338R1

SPACER

engine base

2шт.

15

86534426

ELBOW

1/8 x 90 degrees

1шт.

16

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

17

659495R1

STOP, engine idler lever

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

662340R1

GRIP

idler strap

1шт.

19

27385D

CLIP, loom (For 3/8" bolt)

1шт.

19

52728D

CUSHION, fuel line

1шт.

20

27386D

CLIP, loom (For 1/2" bolt)

1шт.

20

52728D

CUSHION, fuel line

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, hex., 7/16" (Special)

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, lock, 7/16"

1шт.

21

662346R1

SUPPORT, fuel tank

1шт.

22

WEBBING, fuel tank strap (Use 19-3/8 inches of 1-1/4" webbing from roll marked 990539R1)

2шт.

23

663038R11

STRAP, fuel tank, w/webbing

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

mach., hex-hd., 3/8-16NC x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

662339R1

BELT,3.50" W x 97.75" L

Drive 3.50" W x 97.75" L

1шт.

25

662053R11

PULLEY, engine, w/set screw

1шт.

657205R1

KEY 3/8" Sq x 3 1/4", Par

1шт.

102595

SCREW, set, hex-socket-hd., cup-pt., 3/8-16NC x 3/4"

2шт.

26

661249R1

WHEEL, crank

1шт.

179838R1

SCREW, cap, hex-hd., 3/8-16NC x 7/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Q3830

WASHER

plain, 13/32" ID x 1-1/2" OD x no. 11 ga.

3шт.

27

662329R92

BRACKET, engine idler (Welded assembly)

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

Q1557

WASHER

plain, 29/32" ID x 1-3/8" OD x no. 10 ga.

3шт.

615193R1

WASHER

plain, 29/32" ID x 1-3/8" OD x no. 16 ga.

2шт.

667942R1

BUSHING, engine idler support

2шт.

110675

CAP,3/8" NPT

pipe, 3/8" (Not illustrated)

1шт.

12989R1

NIPPLE, pipe, 3/8 x 7-1/2" (Not illustrated) Nipple, 3/8" NPT x 7 1/2"

1шт.

662982R91

WISCONSIN ENGINE - MANUAL STARTER (A)

1шт.

662983R91

WISCONSIN ENGINE - STARTER AND GENERATOR (Self-contained unit) (B)

1шт.

662984R91

WISCONSIN ENGINE - WITH 6-VOLT STARTER (For tractor electrical system - cable transmission) (C)

1шт.

662985R91

WISCONSIN ENGINE - WITH 12-VOLT STARTER (For tractor electrical system - cable transmission) (C)

1шт.
