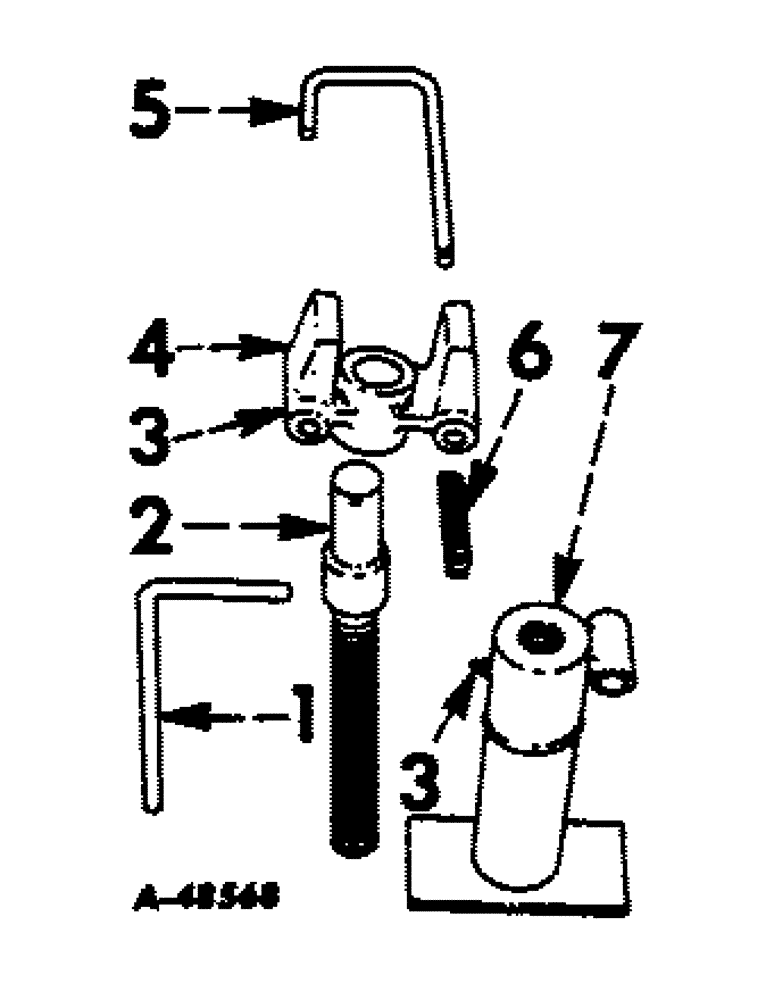

Запчасти Case IH 46 (73) - JACKSTAND ATTACHMENT, SPECIAL

662425R91

JACKSTAND ATTACHMENT, Consists of all the parts listed below

1шт.

1

662326R1

HANDLE, jackstand

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1504

WASHER

plain, 13/32" ID x 7/8 OD x no. 16 ga.

1шт.

2

662328R91

SCREW, jackstem (Welded assembly)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

656631R1

PIN

roll, 3/16 x 1-1/64"

1шт.

Q3481

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no. 16 ga.

1шт.

3

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

662052R1

BLOCK, pivot, jackstand

1шт.

5

662327R1

ROD

PIN, lock, jackstand

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q1504

WASHER

plain, 13/32" ID x 7/8" OD x no. 16 ga.

2шт.

6

T249

SPRING

jackstand pivot pin

1шт.

7

667552R1

JACKSTEM, lower

1шт.
