(72[A]) - PLUNGER CRANK SHIELD, FOR USE WITH WISCONSIN ENGINE ATTACHMENT

Запчасти Case IH 46 (72[A]) - PLUNGER CRANK SHIELD, FOR USE WITH WISCONSIN ENGINE ATTACHMENT

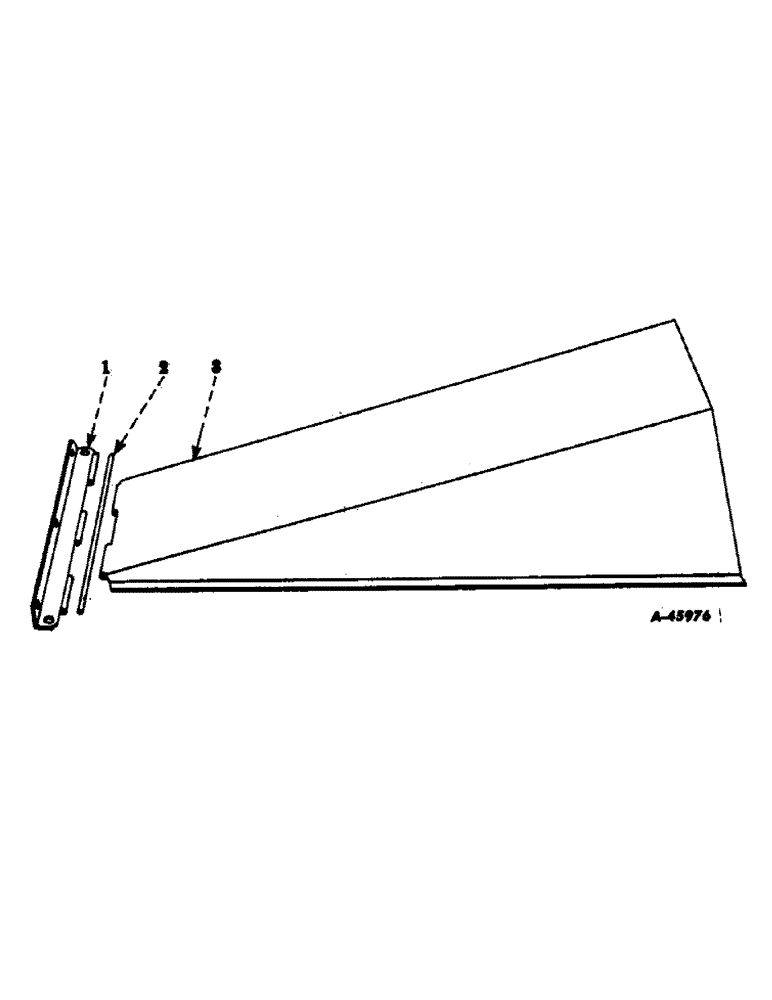

Схема запчастей Case IH 46 - (72[A]) - PLUNGER CRANK SHIELD, FOR USE WITH WISCONSIN ENGINE ATTACHMENT
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

662324R1

HINGE, plunger crank shield

1шт.

Q1504

WASHER

plain, 13/32" ID x 7/8" OD x no. 16 ga.

3шт.

2

662323R1

ROD, hinge

1шт.

3

662556R91

SHIELD, plunger crank (Welded assembly)

1шт.
