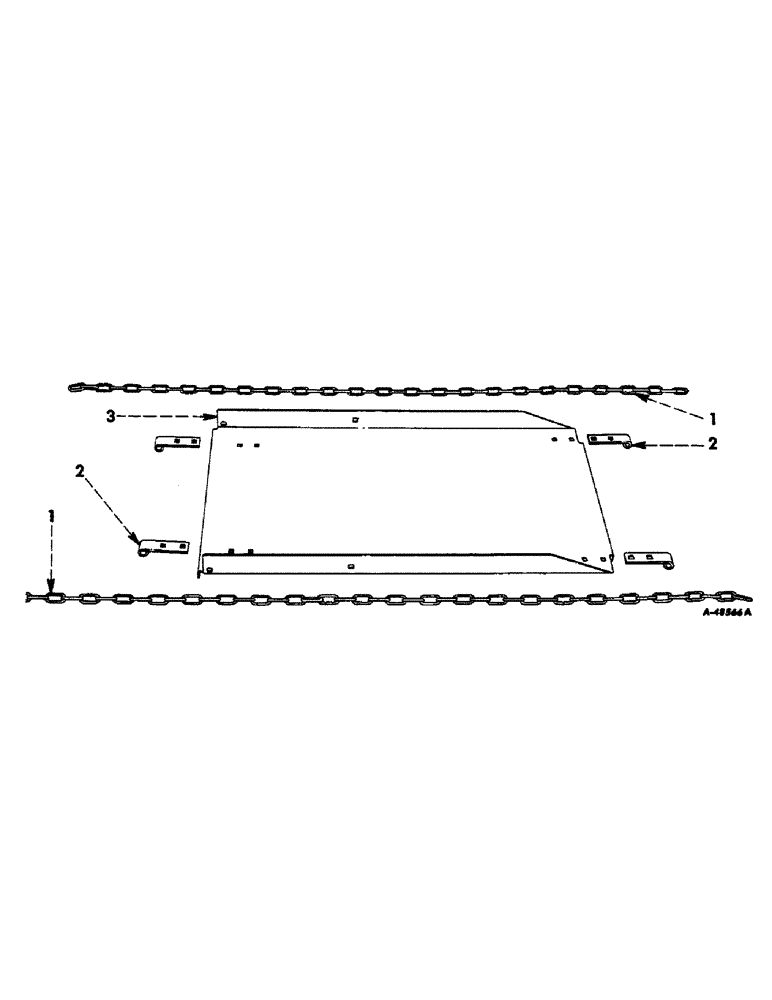

Запчасти Case IH 46 (71) - BALE CHUTE ATTACHMENT, SPECIAL

662427R91

BALE CHUTE ATTACHMENT, Consists of all the parts listed below

1шт.

1

662325R91

CHAIN (AG)

CHAIN, bale chute

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

657803R1

NUT, wing, 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

plain, 11/32" ID x 3/4" OD x no. 16 ga.

2шт.

2

662133R1

SPRING, LEAF

STRAP, hinge, bale chamber extension

4шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

8шт.

102635

NUT,3/8"-16, G5

8шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

PO15464

HEADED PIN,3/8" x 4"

PIN, std-hd., 3/8 x 4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

Q1597

WASHER

plain, 13/32" ID x 3/4 OD x no. 16 ga.

2шт.

3

662254R1

CHUTE, bale

1шт.
