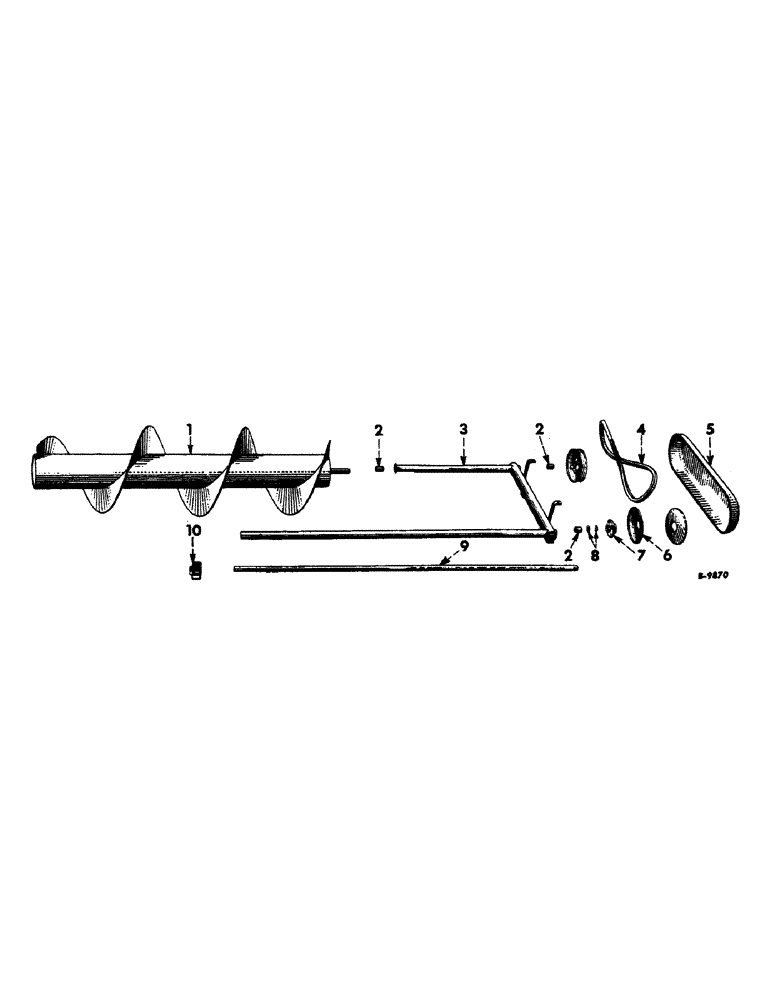

Запчасти Case IH 46 (68) - AUGER AND AUGER DRIVE

1

662176R91

AUGER

(Welded assembly)

1шт.

Q3648

PIPE

plain, 29/32" ID x 2" OD x no. 16 ga.

1шт.

2

495290R1

BUSHING

auger core and drive shaft

4шт.

3

662172R92

RELIEF AND SUPPORT, auger (Welded assembly)

1шт.

4

662213R1

V-BELT,0.88" W

Auger drive 0.88" W

1шт.

5

662258R2

SHIELD, auger drive

1шт.

19419R1

BOLT, mach., hex-hd., 5/16-18NC x 1/2" (Cd-pltd.)

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

495480R1

PULLEY

SHEAVE, auger drive

4шт.

7

495170R2

HUB CAP

HUB, v-sheave

2шт.

17470R1

BOLT

mach., hex-hd., 5/16-18NC x 1-1/2"

8шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

8шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

Q397

WASHER

plain, 11/32" ID x 3/4" OD x no. 16 ga.

40шт.

8

Q2780

WASHER

plain, 29/32" ID x 1-11/32" OD x no. 20 ga.

4шт.

9

664777R1

SHAFT, auger drive (No. 46-W baler)

1шт.

9

662287R1

SHAFT

auger drive (No. 46-T baler)

1шт.

551659R1

WASHER

plain, 29/32" ID x 1-1/2" OD x no. 22 ga.

1шт.

10

664766R1

PINION, auger drive (13 teeth) (No. 46-W baler)

1шт.

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, Woodruff, 1/4 x 7/8"

1шт.

10

495162R4

GEAR

PINION, auger drive (13 teeth) (No. 46-T baler)

1шт.

142534

GROOVED PIN,1.126" ID

Pin, Grooved, 5/16" x 1 3/4", Type A

1шт.

VC649

WASHER

plain, 29/32" ID x 1-3/4 OD x no. 16 ga.

1шт.

454331R1

SNAP RING,#87, Ext

Auger drive pinion (No. 46-W baler) #87, Ext

1шт.

662628R92

KIT, decalcomania (No. 46-T baler), Composed of DECALCOMANIAS

1шт.

2751050R1

PRODUCT GRAPHIC

MCCORMICK INTERNATIONAL, (1) on end sheet, (1) on left front bale chamber side DECALCOMANIAS

2шт.

2750221R1

IH, (1) on end sheet, (1) on left bale chamber side DECLACOMANIAS

2шт.

1001422R1

IH, (1) on packer drive shaft bearing support, (1) on twine chest cover DECALCOMANIAS

2шт.

2751051R1

PRODUCT GRAPHIC

MCCORMICK INTERNATIONAL, (1) on twine chest cover DECALCOMANIAS

1шт.

666679R92

KIT, decalcomania (No. 46-W baler), Composed of DECALCOMANIAS

1шт.

2751050R1

PRODUCT GRAPHIC

MCCORMICK INTERNATIONAL, (1) on end sheet, (1) on left front chamber side DECALCOMANIAS

2шт.

2750221R1

IH, (1) on end sheet, (1) on left bale chamber side DECALCOMANIAS

2шт.

1001422R1

IH, (1) on packer drive shaft bearing support, (1) on twine chest cover DECALCOMANIAS

2шт.

2751051R1

PRODUCT GRAPHIC

MCCORMICK INTERNATIONAL, (1) on twine chest cover DECALCOMANIAS

1шт.
