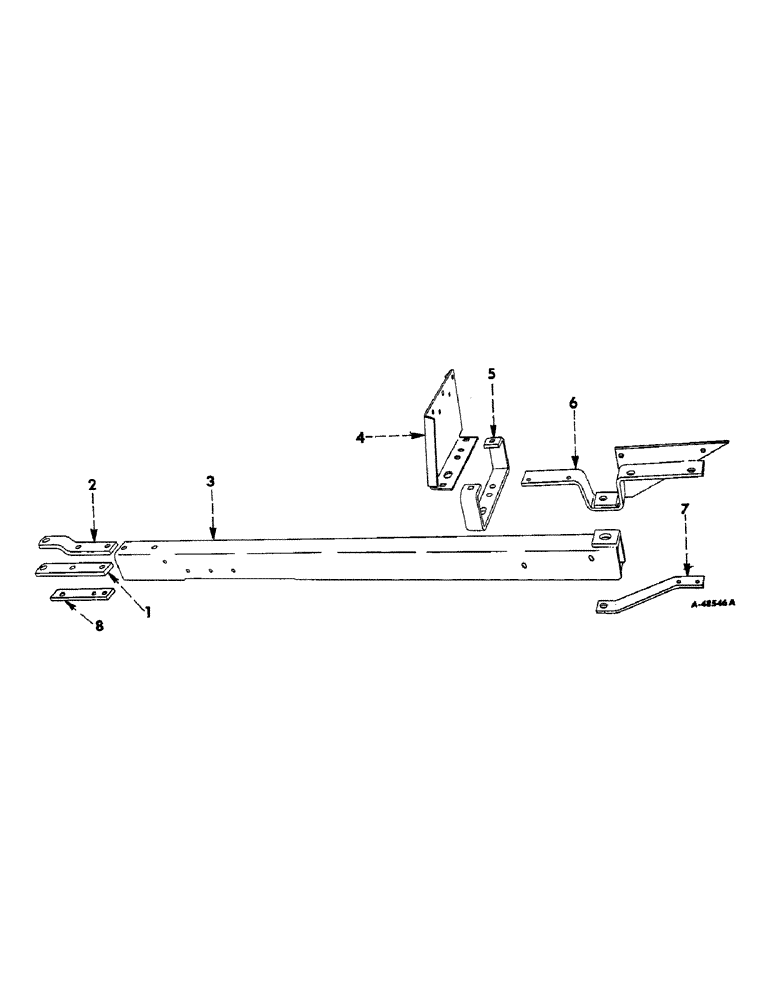

Запчасти Case IH 46 (07) - HITCH

1

662144R1

STRAP

hitch clevis, upper

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

W5262

HEADED PIN,3/4" x 3"

PIN, std-hd., 3/4 x 3"

1шт.

2

662145R1

STRAP

hitch clevis, lower

1шт.

17552R1

BOLT, mach., hex-hd., 5/8-11NC x 2-1/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

662242R91

HITCH (Welded assembly)

1шт.

4

662398R1

PLATE, support, hitch channel

1шт.

5

662397R1

BRACKET, support, hitch

1шт.

15606R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, plow, 5/8-11NC x 1-3/4" (Repair head)

2шт.

102639

NUT,5/8"-11, G5

2шт.

517843R1

COTTER PIN

PIN, cotter, quick-attachable, 3/16"

2шт.

662454R1

HEADED PIN,3/4" x 5"

PIN, std-hd., 3/4 x 5"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

662265R91

PIVOT, hitch (Welded assembly)

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, hex., 1-14NF

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

662560R1

BOLT,Hex, 1" - 14 x 6 1/2"

SCREW, cap, hex-hd., 1-14NF x 6-1/2"

1шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

662559R1

STRAP, anchor, hitch pivot

1шт.

15582R1

BOLT,7/16"-14 x 1 1/2", G2, Full Thd

PLOW, (#3) 7/16"-14 x 1 1/2", G2, Full Thd

2шт.

664672R1

BOLT, mach., hex-hd., 5/8-11NC x 2" (Special)

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14NC (Special)

2шт.

102639

NUT,5/8"-11, G5

1шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

8

668758R1

SPACER

hitch strap

1шт.

BOLT, mach., hex-hd., 5/8-11NC x 3-1/4"

2шт.
