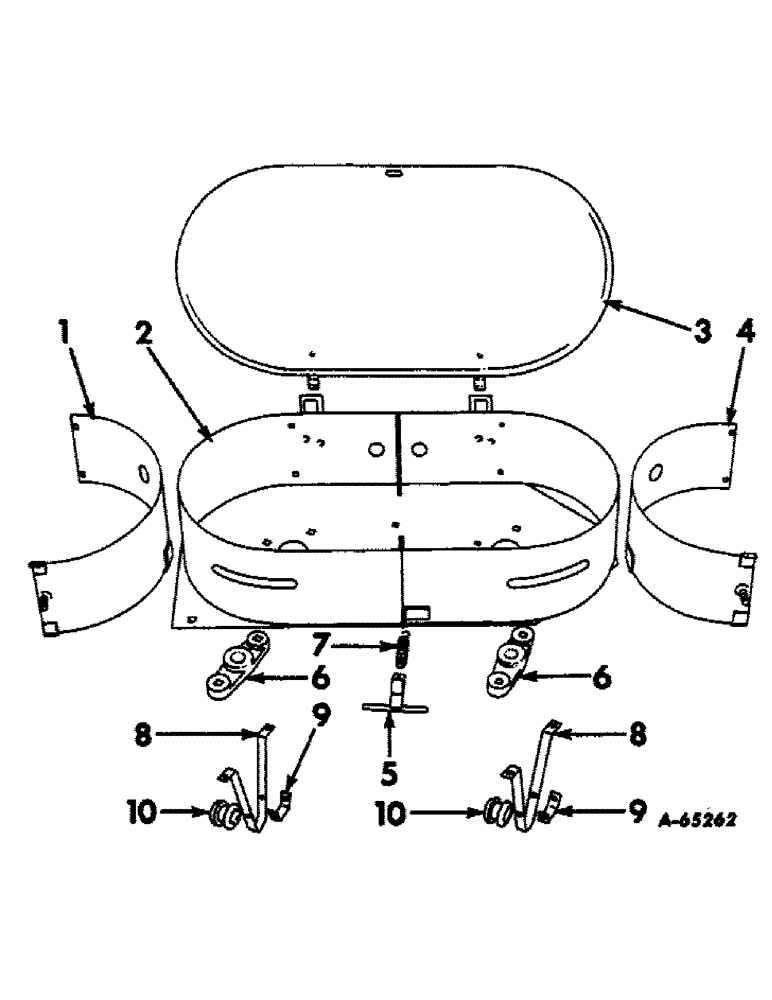

Запчасти Case IH 46 (64) - WIRE CAN, FOR NO. 46-W BALER

1

663260R91

CLAMP, wire coil, left (Welded assembly)

1шт.

14985R1

BOLT

carriage, 1/4-20NC x 1/2"

2шт.

109084

NUT,1/4"-20, G5

2шт.

665260R1

NUT, wing, 3/8-16NC

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Q1505

WASHER

plain, 13/32" ID x 1" OD x no. 16 ga.

1шт.

2

663529R92

CAN, wire (Welded assembly)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

4шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach., hex-hd., 5/16-1 NC x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

102635

NUT,3/8"-16, G5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

663264R91

COVER, wire can (Welded assembly)

1шт.

4

663261R91

CLAMP, wire coil, right (Welded assembly)

1шт.

14985R1

BOLT

carriage, 1/4-20NC x 1/2"

2шт.

109084

NUT,1/4"-20, G5

2шт.

665620R1

NUT, wing, 3/8-16NC

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

495-21044

WASHER,3/8"

plain, 13/32" ID x 1" OD x no. 16 ga.

1шт.

5

663271R91

HANDLE, wire can cover (Welded assembly)

1шт.

6

656928R1

GUIDE, wire

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

52404D

SPRING

wire can handle

1шт.

8

664955R1

SUPPORT, wire guide bracket

2шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

665086R1

RETAINER, wire eye

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

125678

BOLT

SCREW, mach., slotted-truss-hd., 5/16-18NC x 5/8"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

11833PB

GUIDE

wire

2шт.
