(63) - CROSS CONVEYOR BACK SHEET AND SUPPORT, FOR NO.46-W BALER

Запчасти Case IH 46 (63) - CROSS CONVEYOR BACK SHEET AND SUPPORT, FOR NO.46-W BALER

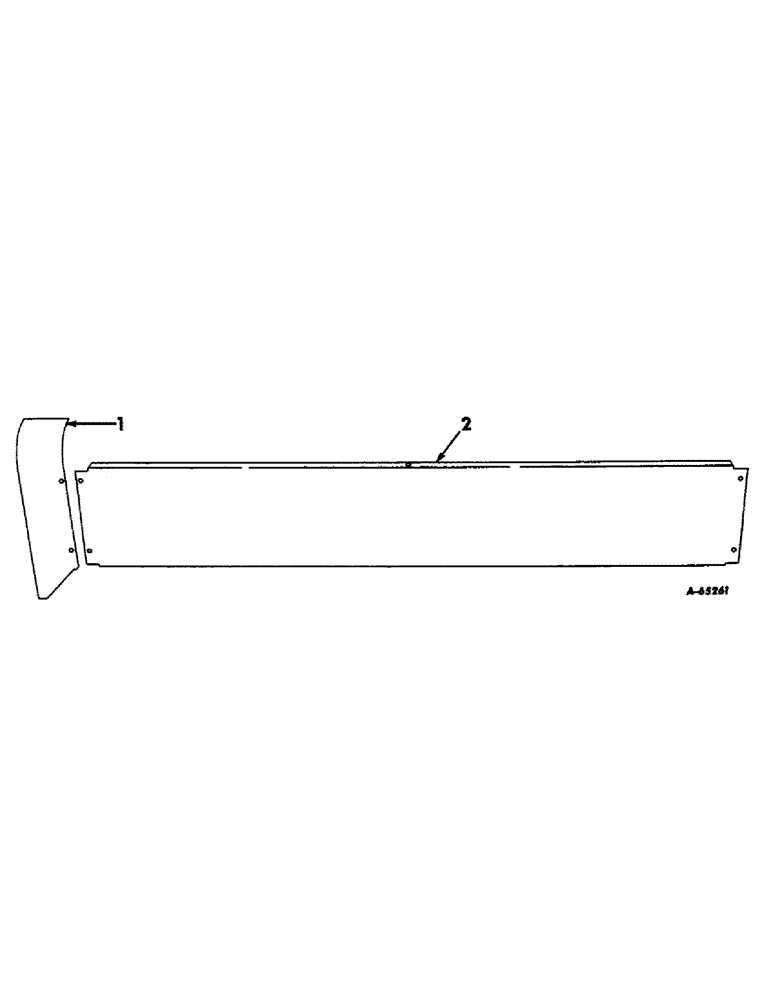

Схема запчастей Case IH 46 - (63) - CROSS CONVEYOR BACK SHEET AND SUPPORT, FOR NO.46-W BALER
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

664812R1

END, twine can top support

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

mach., hex-hd., 1/4-20NC x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

664813R1

SHEET, cross conveyor back

1шт.

109084

NUT,1/4"-20, G5

4шт.

137352

SCREW, mach., slotted-truss-hd., 1/4-20NC x 5/8"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
