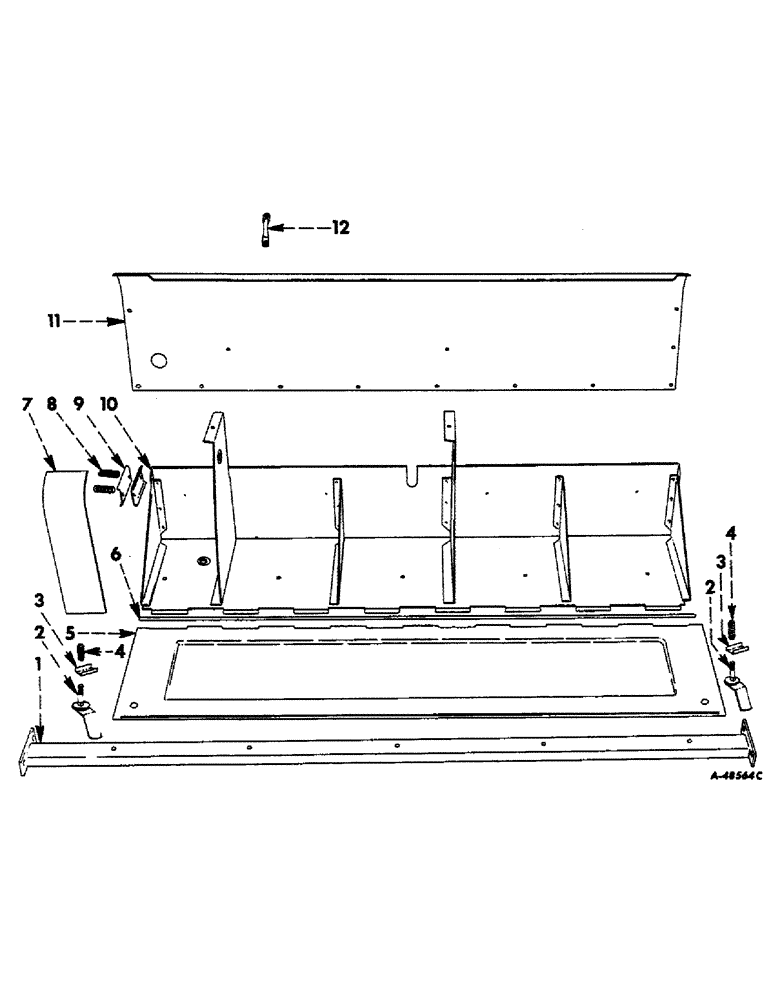

Запчасти Case IH 46 (62) - TWINE CHEST, FOR NO. 46-T BALER

1

662403R91

SUPPORT, twine chest (Welded assembly)

1шт.

2

668035R11

LATCH

twine can door

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, lock, 3/8"

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

2шт.

3

668386R1

SEAL

PAWL, twine can door fastener

2шт.

4

354726R1

SPRING, twine can door fastener

2шт.

5

662386R1

DOOR

twine chest

1шт.

6

662409R1

ROD

pivot, twine chest door

1шт.

7

662382R1

SUPPORT, twine chest top, end

1шт.

109084

NUT,1/4"-20, G5

3шт.

137352

SCREW, slotted-truss-hd., 1/4-20NC x 5/8

3шт.

103309

LID

WASHER, lock, 1/4"

3шт.

8

323

SPRING

twine tension roller

2шт.

9

662380R1

GUIDE

PLATE, twine tension

2шт.

15122R1

BOLT, carriage, 1/4-20NC x 2-3/4"

2шт.

665621R1

NUT, wing, 1/4-20NC

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

B32120

WASHER

cup, twine roller spring

2шт.

10

662371R91

CAM

CHEST, twine (Welded assembly)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

11

662383R31

TOP, twine chest, w/guide

1шт.

109084

NUT,1/4"-20, G5

14шт.

137352

SCREW, mach., slotted-truss-hd., 1/4-20NC x 5/8"

12шт.

120573

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

mach., slotted-truss-hd., 1/4-20NC x 1"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

12

655108R2

GUIDE

twine

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.
