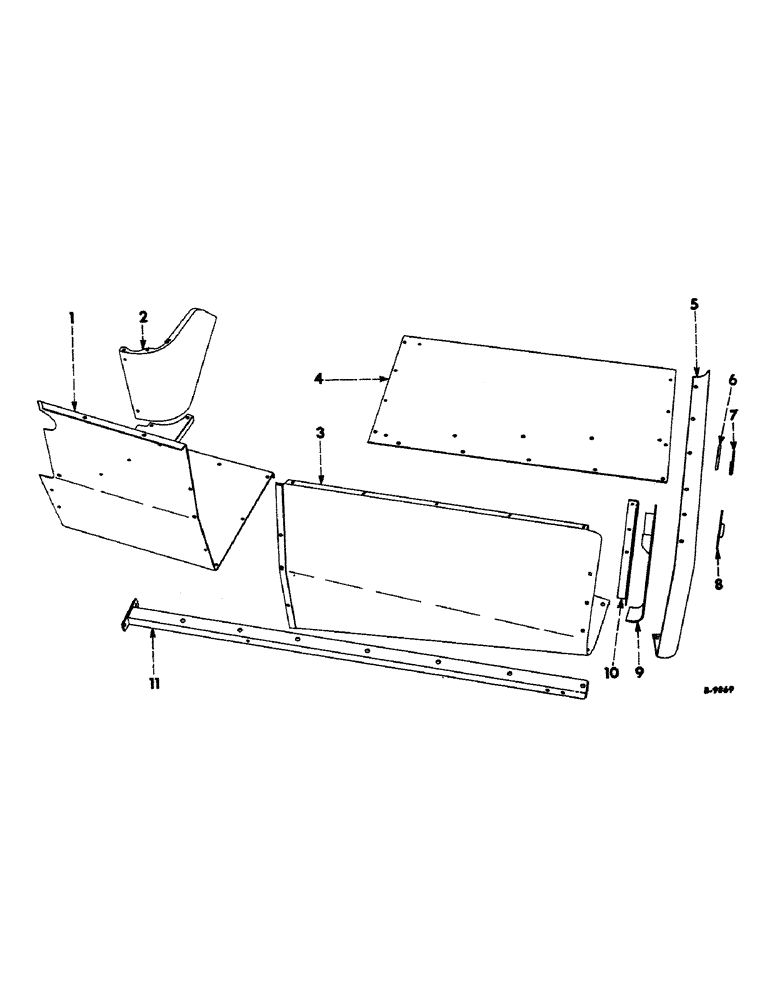

Запчасти Case IH 46 (60) - CROSS CONVEYOR

1

662399R93

SHEET, feed opening (Welded assembly)

1шт.

109084

NUT,1/4"-20, G5

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

3шт.

137352

SCREW, mach., slotted-truss-hd., 1/4-20NC x 5/8"

6шт.

120576

SCREW, mach., slt-truss-hd., 5/16-18NC x 1-1/4"

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x .065" thick

5шт.

2

662248R2

OPENING, feed, front

1шт.

109084

NUT,1/4"-20, G5

7шт.

137352

SCREW, mach., slotted-truss-hd., 1/4-20NC x 5/8"

7шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

3

662357R1

PLATFORM

cross conveyor

1шт.

4

662395R1

COVER, cross conveyor

1шт.

109084

NUT,1/4"-20, G5

11шт.

137352

SCREW, mach., slotted-truss-hd., 1/4-20NC x 5/8"

11шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

5

662408R2

SHEET, side, cross conveyor

1шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

carriage, 5/16-18NC x 1-3/4"

2шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

carriage, 5/16-18NC x 1-1/4"

2шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

10шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

102635

NUT,3/8"-16, G5

11шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

6

662135R1

STOP

auger

2шт.

7

665437R1

HOLDER, auger stop (No. 46-W baler)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

662239R1

BRACKET

HOLDER, auger stop (No. 46-T baler)

2шт.

8

495473R1

BRACKET

BEARING, auger relief, right

1шт.

9

662148R1

GUSSET

axle, right

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17427R1

BOLT, mach., hex-hd., 7/16-14NC x 1"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

NLS

NO LONGER SERVICED

hex., 7-16-14NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

662151R1

BRACE

cross conveyor platform

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

662236R91

CHANNEL, support, cross conveyor (Welded assembly)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

1шт.

109084

NUT,1/4"-20, G5

7шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

mach., slotted-fl-hd., 1/4-20NC x 5/8"

7шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x .065" thick

7шт.
