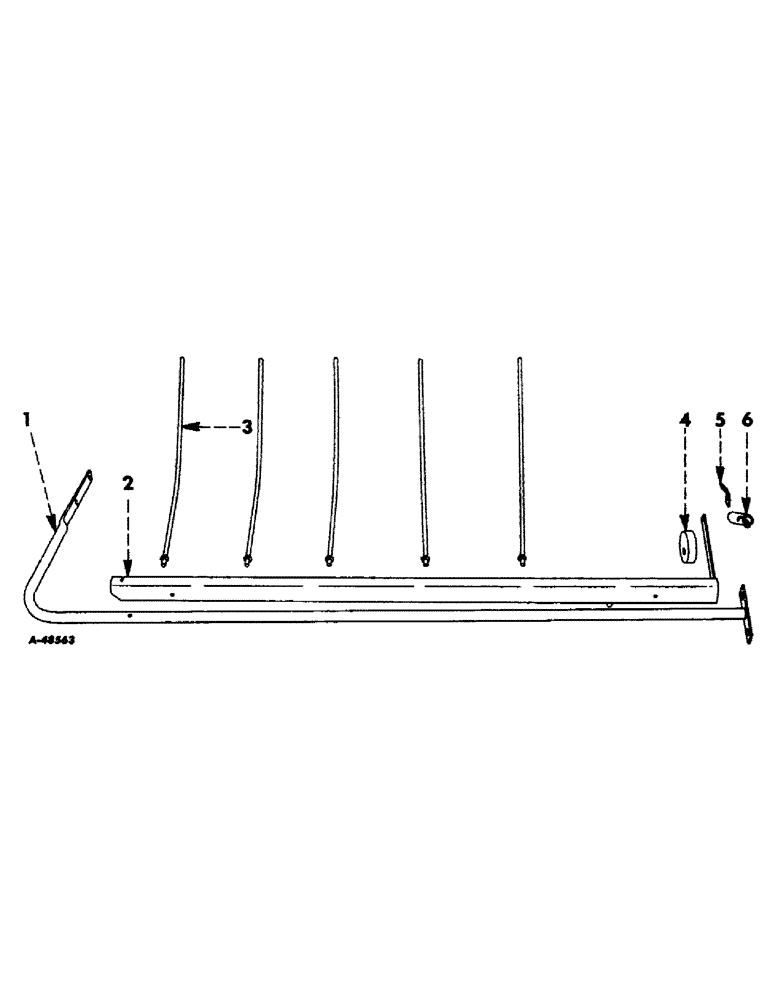

Запчасти Case IH 46 (59) - PICKUP COVER

1

662388R91

PIPE

ARM, pickup cover (Welded assembly)

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, carriage, 3/8-16NC x 3/4" (Cd-pltd.)

2шт.

19417R1

BOLT

carriage, 3/8-16NC x 1" (Cd-pltd.)

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

662391R91

BRACKET, pickup cover finger (Welded assembly)

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

662394R1

FINGER

TINE, pickup cover

5шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

4

662434R1

CAM, adjusting, pickup cover

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, plow, 3/8-16NC x 1-1/2" (Cd-pltd.)

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

662387R1

ANCHOR

pickup spring

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

663085R1

SPRING

pickup cover

1шт.
