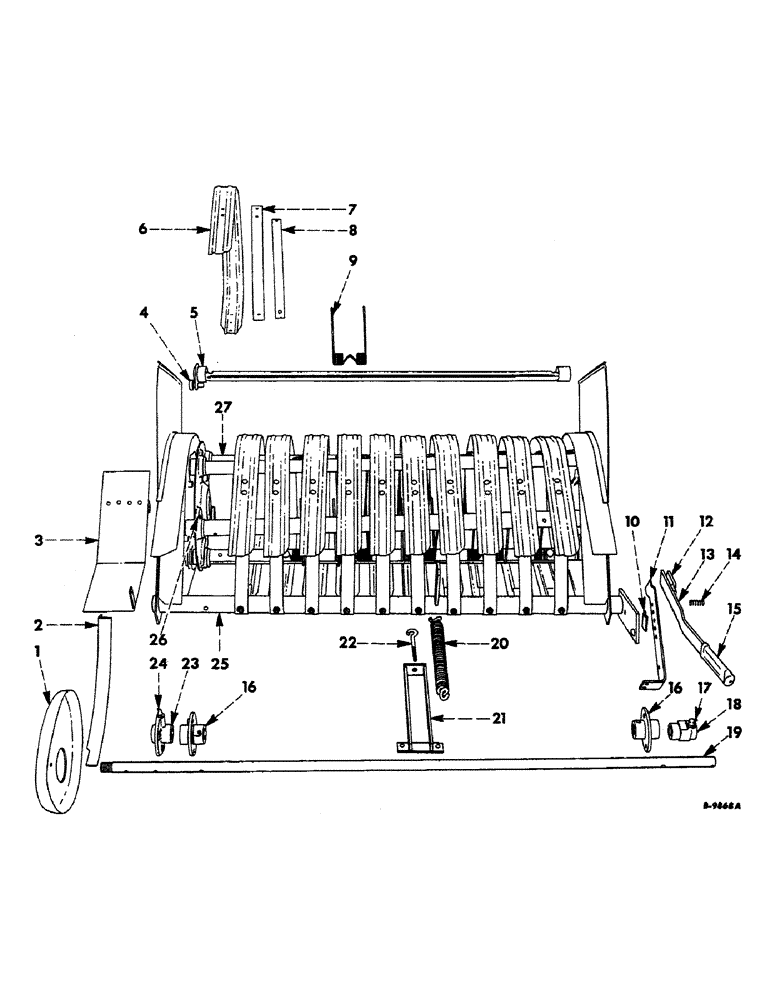

Запчасти Case IH 46 (56) - PICKUP CYLINDER

1

662317R2

CAM

control, pickup tooth

1шт.

2

662318R11

GUIDE

tooth bar roller (Welded assembly)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

114662

SCREW

fl.-hd., slotted, 5/16-18NC x 5/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

114617

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER, csk. external-tooth, 5/16"

1шт.

3

662297R91

SHIELD

pickup drive (Welded assembly)

1шт.

19416R1

BOLT

carriage, 5/16-18NC x 3/4" (Cd-pltd.)

1шт.

19420R1

BOLT, mach., hex-hd., 7/16-14NC x 3/4" (Cd-pltd.)

1шт.

120376

NUT,5/16"-18, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

ST543

BALL BEARING,15mm ID x 35mm OD x 11mm W

BEARING, control, pickup cylinder tine

5шт.

5

495279R93

CARRIER

BAR, pickup tooth (Welded assembly)

5шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

5шт.

Q366

WASHER

plain, 2-1/16" ID x 2-15/16" OD x no. 16 ga.

20шт.

6

662316R1

STRIPPER

pickup

11шт.

14985R1

BOLT

carriage, 1/4-20NC x 1/2"

22шт.

14993R1

BOLT, carriage, 1/4-20NC x 3/4"

22шт.

109084

NUT,1/4"-20, G5

44шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

44шт.

7

662315R1

SUPPORT

pickup stripper

11шт.

8

662314R1

BRACE

pickup stripper

11шт.

17574R1

BOLT (SPREADER)

BOLT, mach., hex-hd., 3/8-16NC x 2-1/2"

11шт.

102635

NUT,3/8"-16, G5

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

9

MA74528

SPRING

pickup tooth

30шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

30шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

30шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

27513K

CUP WASHER

WASHER, pickup tooth (No. 14 ga.)

30шт.

10

662506R1

CLIP

lever

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

U5353

DOWEL

PIN, std-hd., dld., 5/16 x 2-3/16"

1шт.

Q397

WASHER

plain, 11/32" ID x 3/4" OD x no. 16 ga.

1шт.

11

662419R1

QUADRANT, pickup lever

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

128144

WASHER, plain, 3/8" ID x 1-1/8" OD x no. .065

1шт.

12

662417R1

ARM, pickup floating lever

1шт.

104099

RIVET,But Hd, 5/16" x 1"

rd-hd., 5/16 x 1"

2шт.

13

662415R91

LEVER

pickup (Riveted assembly)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

663922R1

PIN,5/8" x 1 3/8"

std-hd., 5/8 x 1-3/8" (Cd-pltd.)

1шт.

14

18489D

SPRING

pickup lever

1шт.

15

662340R1

GRIP

hand, pickup lever

1шт.

16

659942R1

HUB

driving, pickup cylinder

2шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

mach., hex-hd., 5/16-18NC x 1"

6шт.

Q3931

KEY,Gib, 5/16" Sq x 1 7/8"

gib, tapered (5/16 x 1-7/8")

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

V4941/2

PIN

std-hd., 5/16 x 2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

18

737F

NO LONGER SERVICED

BEARING, pickup cylinder

1шт.

19

662074R1

SHAFT

drive, pickup cylinder

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, slotted, hex., 1-14NF

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

Q3481

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no. 16 ga.

4шт.

20

MA731

SPRING

balance, pickup

1шт.

21

662410R91

BRACKET, pickup balance spring (Welded assembly) (57-60)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

662303R1

EYEBOLT, pickup spring (57-60)

1шт.

22

665580R1

BOLT, balance spring (61- )

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

23

495159R2

HUB CAP

BEARING, pickup cylinder

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8"

1шт.

25

662304R91

FRAME, pickup (Welded assembly)

1шт.

26

495489R31

DISC

END, pickup cylinder, w/bushings

2шт.

26

659437R1

BUSHING

pickup cylinder support

10шт.

27

664992R91

CYLINDER, pickup, assembly, Composed of

1шт.

495279R93

CARRIER

BAR, assembly

5шт.

662318R11

GUIDE

assembly

1шт.

737F

NO LONGER SERVICED

BEARING

1шт.

659942R1

HUB

2шт.

495159R2

HUB CAP

BEARING

1шт.

662074R1

SHAFT

1шт.

662314R1

BRACE

11шт.

MA74528

SPRING

30шт.

662317R1

CAM

1шт.

662316R1

STRIPPER

11шт.

495489R31

DISC

END, assembly

2шт.

662315R1

SUPPORT

11шт.

662304R91

FRAME, assembly

1шт.

27513K

CUP WASHER

WASHER

30шт.
