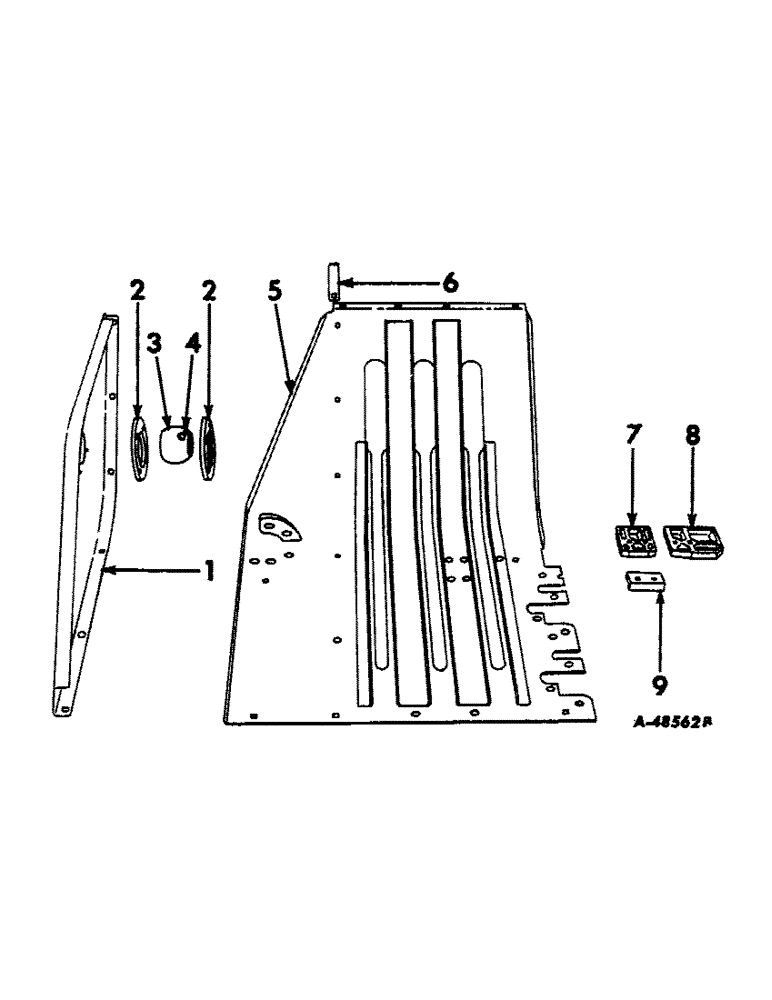

Запчасти Case IH 46 (53) - FEED OPENING TOP SHEET

1

662214R1

SUPPORT, packer bearing

1шт.

14995R1

BOLT

carriage, 3/8-16NC X 3/4"

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

11463P

DISK, packer drive bearing

2шт.

17575R1

BOLT, mach., hex-hd., 7/16-14NC x 2-1/2"

4шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

3

656851R1

BEARING, packer drive

1шт.

551769R1

WASHER

plain, 1-13/32" ID x 2" OD x no. 16 ga.

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, lubrication, self tapping, 1/4"

1шт.

5

662186R93

SHEET, feed opening, top (Welded assembly)

1шт.

15543R1

BOLT

plow, 3/8-16NC x 3/4"

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

662121R1

STRAP, tie, feed opening top sheet

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

662038R1

DEFLECTOR

feed opening

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

662040R1

DEFLECTOR

feed opening, rear

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

662039R1

RUNNER, feed opening top sheet

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
