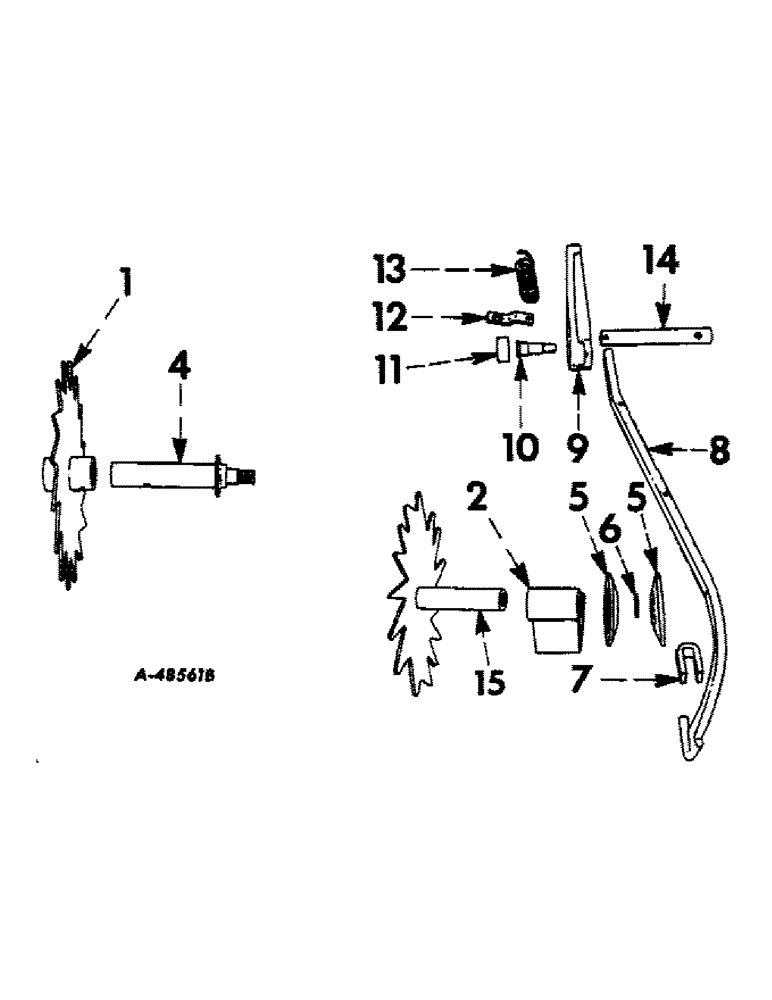

Запчасти Case IH 46 (52) - BALE LENGTH CONTROL

1

662183R91

WHEEL, meter (Welded assembly) (57-61)

1шт.

2

667450R92

SUPPORT, trip sheave bearing (Welded assembly) (62- )

1шт.

2

662180R91

SUPPORT, trip sheave bearing (Welded assembly) (57-61)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

plain, 15/32" ID x 3/4 OD x no. 16 ga.

2шт.

4

662441R11

SHAFT

trip roller (Welded assembly) (57-61)

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

1033325

HUB ASSY.

WASHER, lock, 5/8"

1шт.

615226R1

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no. 22 ga. (As required)

1шт.

5

662442R1

PULLEY

ROLLER, trip

2шт.

6

665033R1

SPACER

trip roller

1шт.

7

662031R1

COLLAR

set, trip

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

102897

SET SCREW,Sq Hd, 3/8"-16 x 1 1/4"

Sq Hd, 3/8"-16 x 1 1/4" (Cup Pt)

1шт.

8

664779R92

ROD, trip (Welded assembly) (No. 46-W baler)

1шт.

8

662279R93

ROD

trip (Welded assembly) (No. 46-T baler)

1шт.

18265R1

LOCK PIN,3/8" x 1 1/4", Slotted

Pin, 3/8" x 1 1/4", Slotted

1шт.

9

663163R21

ARM

trip, w/stud and roller (No. 46-W baler)

1шт.

9

662018R11

LEVER

ARM, trip, w/stud and roller (No. 46-T baler)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

10

662020R1

STUD

trip arm roller

1шт.

28035K

WASHER

plain, 13/32" ID x 1" OD x no. 22 ga.

1шт.

11

662019R1

ROLLER,28.57mm OD x 12.7mm L

trip arm

1шт.

12

664806R1

ANCHOR, trip spring (No. 46-W baler)

1шт.

12

662102R1

ANCHOR, trip spring (No. 46-T baler)

1шт.

13

13985V

SPRING

trip

1шт.

14

664778R1

PIN

STUD, trip arm (No. 46-W Baler)

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

Q3501

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 16 ga.

1шт.

14

662072R1

NO LONGER SERVICED

STUD, trip arm (No. 46-T baler)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

Q3501

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 16 ga.

2шт.

15

667452R91

WHEEL, meter (Welded assembly) (62- )

1шт.

17475R1

BOLT, mach., hex-hd. 5/8-11NC x 1-1/2"

1шт.

21868V

WASHER

plain, 29/32" ID x 1-1/2" OD x no. 16 ga.

2шт.

578274R1

WASHER

plain, 21-32" ID x 1" OD x no. 11 ga.

1шт.

667778R1

BUSHING

trip sheave support

2шт.
