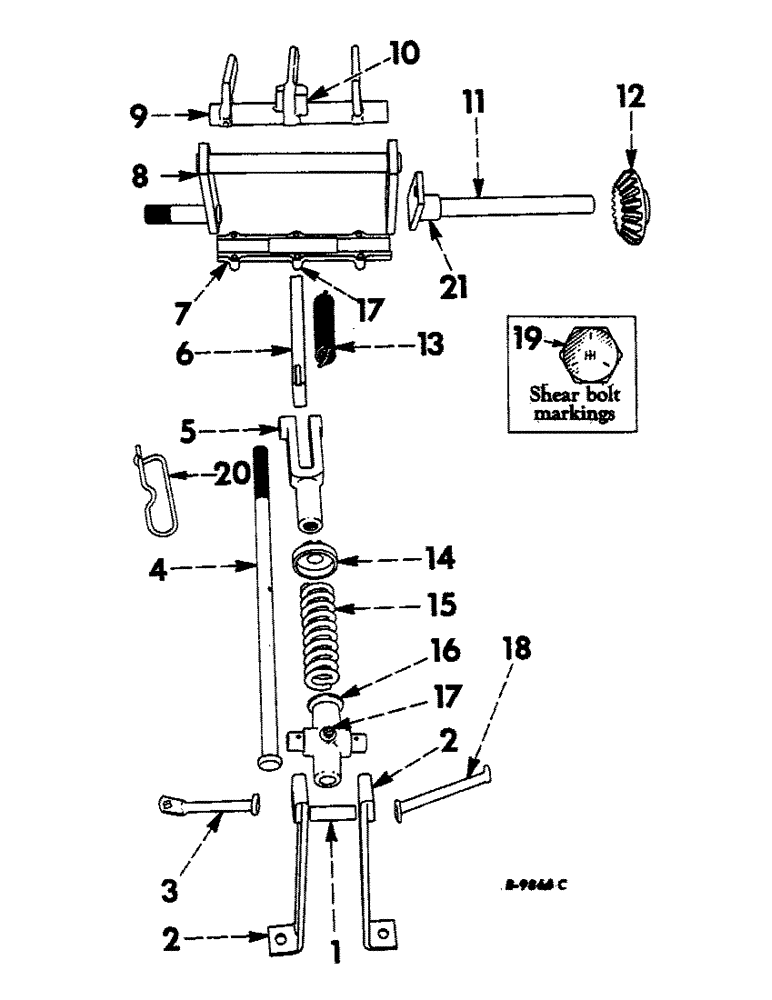

Запчасти Case IH 46 (50) - PACKER RELIEF SPRING AND PACKER FINGER

1

600373R1

SPACER

packer relief support brace

1шт.

2

662139R1

SUPPORT, packer relief

2шт.

655707R1

BOLT

special, 3/8-16NC x 1-1/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

662240R1

BRACE, packer relief support, front

1шт.

17720R1

BOLT, mach., hex-hd., 7/16-14NC x 4"

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

664678R1

ROD, guide, packer relief

1шт.

220081

NUT

hex., 3/4-10NC

1шт.

5

662032R2

CONNECTOR, ELEC

CONNECTOR, packer finger relief

1шт.

663047R1

PIN

rod end, 3/4 x 2-3/64"

1шт.

6

662354R1

ARM, packer finger

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

663108R1

HEADED PIN,7/16" x 2 1/2"

PIN, std-hd., 7/16 x 2-1/2"

1шт.

181347

BOLT,Hex, 5/16" - 24 x 2", Gr 5

SHEAR BOLT, (No. 2 hardened cap screw) 5/16NC x 2"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

662012R1

CAP

bearing, packer finger

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

mach., hex-hd., 3/8-16NC x 1-3/4"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

662260R91

CRANKSHAFT, packer (Welded assembly)

1шт.

9

662042R11

FINGER, packer, w/cap

1шт.

10

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear, packer finger

1шт.

11

662197R92

CRANKSHAFT, packer, rear (Welded assembly)

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, hex., 7/16-14NC (Special)

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q3486

WASHER

plain, 1-13/32" ID x 2-1/4" OD x no. 16 ga.

4шт.

Q3858

WASHER

plain, 1-13/32" ID X 2-1/4" OD x no. 20 ga.

2шт.

12

495163R3

GEAR

intermediate, miter (18 teeth)

1шт.

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

gib (3/8 x 3/8 x 1-3/4")

1шт.

13

662632R1

SPRING

packer

1шт.

14

Q5099

WASHER

plain, 25/32" ID x 1-3/4" OD x no. 11 ga. (59- )

1шт.

14

BA2529

COLLAR, thrust, packer relief spring (57-58)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, std-hd., dld., 1/4 x 1-9/16"

1шт.

15

15282BA

SPRING

packer relief

1шт.

16

495195R1

TRUNNION, packer relief

1шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING, lubrication, self-tapping, 1/4"

2шт.

18

664768R1

BRACE, packer relief support, rear (No. 46-W baler)

1шт.

18

662259R1

BRACE, packer relief support, rear (No. 46-T baler)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

SHEAR BOLT, (No. 2 hardened cap screw) 5/16NF x 2", w/nut and lock washer

1шт.

20

664840R1

RING

PIN, packer finger clip

1шт.

21

662199R2

SLEEVE, packer crank

1шт.
