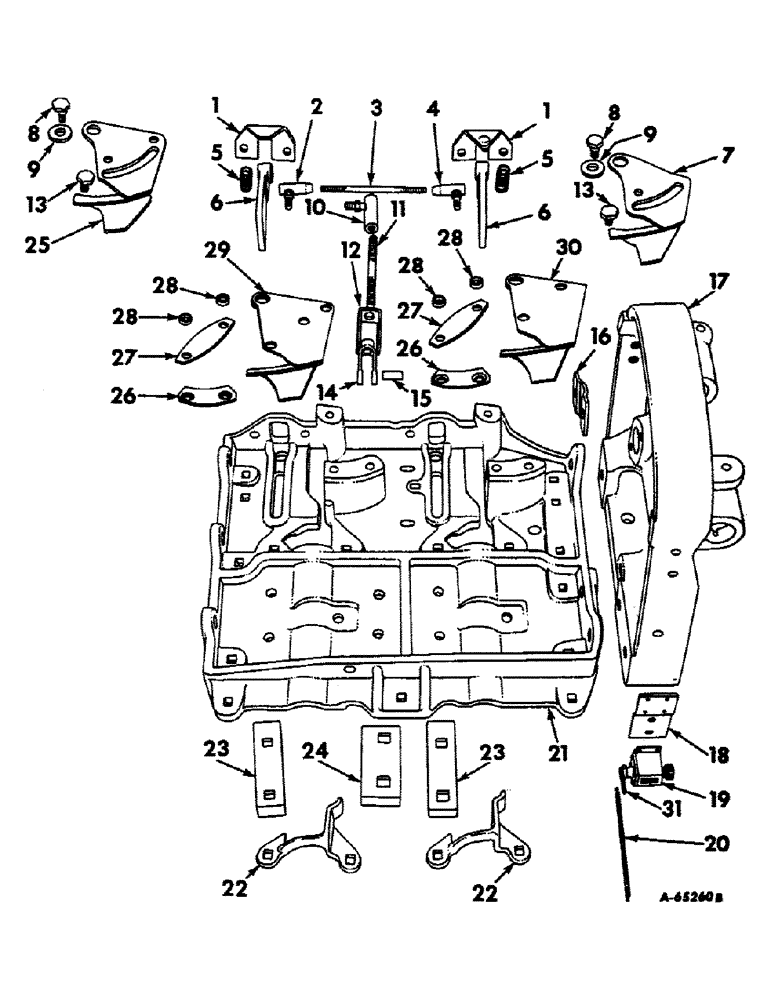

Запчасти Case IH 46 (47) - TWISTER BASE PLATE, DRIVE FRAME AND BALE COUNTER, FOR NO. 46 -W BALER

1

663578R91

BRACKET, hay retainer, top (Welded assembly)

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

667236R91

CONNECTOR, ELEC

JOINT, ball stripper connecting rod, left

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

656932R1

ROD

connecting, stripper

1шт.

103026

NUT,3/8"-24, G5

2шт.

4

667237R91

JOINT

ball, stripper connecting, right

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

665192R1

SPRING

hay retainer, upper

2шт.

6

667449R1

RETAINER

hay (62- )

2шт.

6

664758R1

RETAINER, hay (57-61)

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

mach., hex-hd., 1/2-13NC x 1-3/4"

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3534

HEADED PIN,9.53mm OD x 38.1mm L

PIN, std-hd., 3/8 x 1-1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

plain, 17/32" ID x 1" OD x no. 11 ga.

2шт.

7

NOT SERVICED

1шт.

8

656956R1

STUD

stripper pivot, front

2шт.

660466R1

WASHER

2шт.

28407K

WASHER

plain, 17/32" ID x 1-1/4" OD x no. 22 ga.

2шт.

9

656945R1

BEARING

BUSHING, stripper pivot

2шт.

10

659567R91

JOINT TURNING

ROD, stripper actuating

1шт.

667596R1

NUT

lock, 7/16-20NF

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

656930R2

ROD

actuating, stripper

1шт.

271505

BODY

hex., 7/16-20NF

2шт.

12

658742R1

CLEVIS COUPLING

CLIP, stripper pin clevis

1шт.

13

656955R1

STUD

stripper pivot, rear (57-61)

2шт.

306415R1

WASHER, plain, 17/32" ID x 1" OD x no. 22 ga.

2шт.

14

116537

SPACER

CLEVIS, stripper actuating rod

1шт.

15

658741R1

PIN

stripper clevis

1шт.

16

664815R1

BRACKET, retaining, auger gear

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

664759R1

FRAME, twister drive

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

mach., hex-hd., 5/8-11NC x 1-3/4"

2шт.

102637

NUT,1/2"-13, G5

3шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

664817R1

BRACKET, bale counter

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

mach., hex-hd., 5/16-18NC x 1"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

495046R92

COUNTER

bale

1шт.

20

495525R1

SPRING

bale counter

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21

664754R3

PLATE

twister base

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1-1/4"

3шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

4шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

plow, 3/8-16NC x 1-1/2"

4шт.

102635

NUT,3/8"-16, G5

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

22

657115R1

FINGER

INSERT, twister frame

2шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

495929R1

NO LONGER SERVICED

WEDGE, hay retainer (Narrow)

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

2шт.

15039R1

BOLT

carriage, 3/8-16NC x 1-1/2"

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

495930R1

WEDGE

hay retainer (Wide)

1шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

carriage, 7/16-14NC x 1-1/2

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

25

NOT SERVICED

1шт.

26

667233R1

ANCHOR

stripper finger (62- )

2шт.

156513

SCREW,Cross Flat Hd, 3/8" - 16 x 1/2"

fl-hd. cross recess, cad-pl., 3/8 x 1/2"

4шт.

575808R1

WASHER

plain, 19/32" ID x 1" OD x no. 16 ga.

4шт.

27

667234R1

PLATE

stripper finger guide (62- )

2шт.

103026

NUT,3/8"-24, G5

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

2шт.

103021

SCREW

WASHER, lock, 3/8"

2шт.

28

667235R1

SPACER

guide plate (62- )

4шт.

29

667230R91

FINGER

stripper, left (Welded assembly) (62- )

1шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

3шт.

30

667269R91

FINGER

stripper, right (Welded assembly) (62- )

1шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

3шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (In 664759R1 frame) 1/8"-27 x .66 lg

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 45 degree elbow, 1/8" (In 664759R1 frame)

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubrication, 65 degree elbow, 1/8" (In 664759R1 frame)

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (In 664759R1 frame)

2шт.
