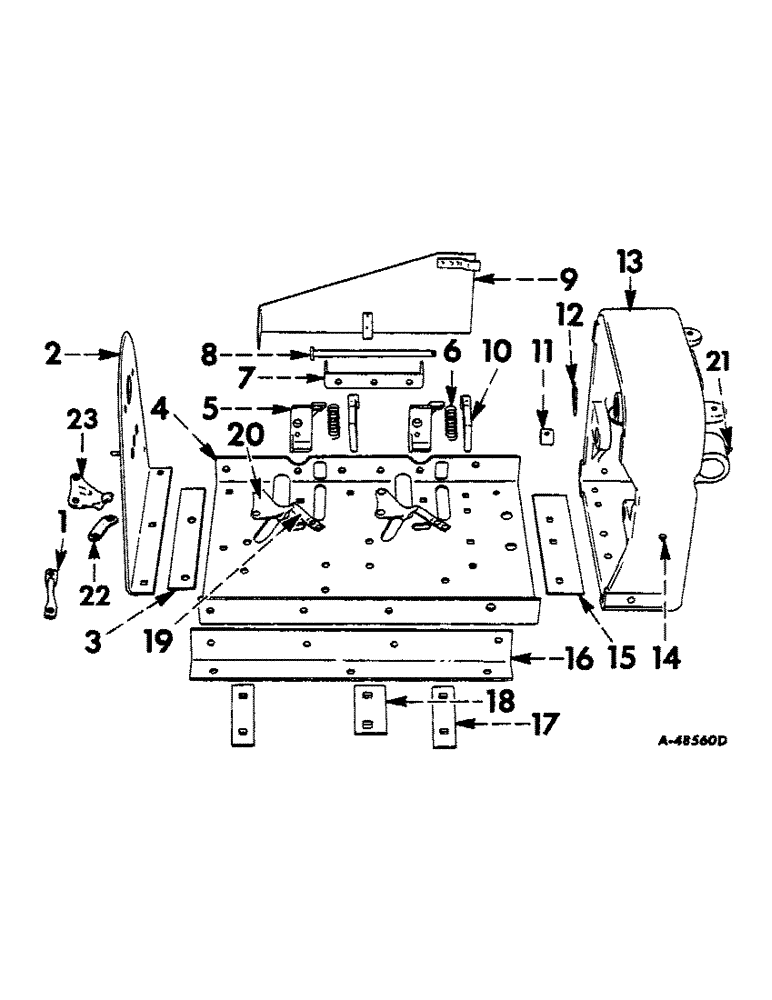

Запчасти Case IH 46 (44) - KNOTTER DRIVE FRAME AND BREAST PLATE, FOR NO. 46-T BALER

1

655108R2

GUIDE

twine (57-60)

2шт.

104152

RIVET,Csk, 3/16" x 5/8"

csk-hd., 3/16 x 5/8"

4шт.

2

662365R2

SUPPORT, bearing, knotter shaft

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

plow, 3/8-16NC x 1-1/2"

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

662149R1

FILLER, breast plate, left

1шт.

4

662109R21

PLATE, breast, w/twine retainer spring

1шт.

5

662009R3

ANCHOR

knotter

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

3шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

plow, 3/8-16NC x 1-1/2"

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

51101R2

COIL SPRING

SPRING, hay retainer (57-58)

2шт.

6

668869R1

SPRING

hay retainer (59- )

2шт.

7

662146R1

BRACKET

pivot, hay retainer, upper

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

665078R1

PIN,1/2" x 9 1/4"

pivot, hay retainer

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

662450R91

SHIELD, knotter, front (Welded assembly)

1шт.

14993R1

BOLT, carriage, 1/4-20NC x 3/4"

1шт.

665621R1

NUT, wing, 1/4-20NC

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

662007R2

RETAINER

hay

2шт.

11

662080R1

BUSHING

auger drive shaft, short

1шт.

12

662647R1

RING

SNAP RING, knotter drive gear

1шт.

13

662004R11

FRAME, knotter drive, w/bushing

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q3489

WASHER

plain, 1-25/32" ID x 2-1/2" OD x no. 16 ga.

2шт.

663107R1

WASHER, plain, 1-25/32" ID x 2-1/2" OD x no. 16 ga. (Special)

1шт.

14

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

5шт.

15

662150R1

FILLER, breast plate, right

1шт.

16

662147R2

ANGLE

ANCHOR, bale chamber tension channel

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

3шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

mach., hex-hd., 3/8-16NC x 1-1/2"

1шт.

15543R1

BOLT

mach., plow, 3/8-16NC x 3/4"

1шт.

102635

NUT,3/8"-16, G5

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

17

495929R1

NO LONGER SERVICED

WEDGE, hay retainer, narrow

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

495930R1

WEDGE

hay retainer, wide

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

662112R1

SPRING

retainer, twine

2шт.

112620

RIVET

csk-hd., 1/4 x 7/16"

4шт.

20

495412R71

NO LONGER SERVICED

FINGER, breast plate, w/rivets

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.

21

271284

YOKE

lubrication, 65 degree elbow, 1/8"

1шт.

22

668974R1

REINFORCEMENT

STRIP, base plate wear

2шт.

Long wear part.

1шт.

113225

RIVET,Csk, 3/16" x 9/16"

csk.-hd., 3/16 x 9/16"

4шт.

23

668975R12

GUIDE

FINGER ASSY, breast plate

2шт.

Long wear part.

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.
