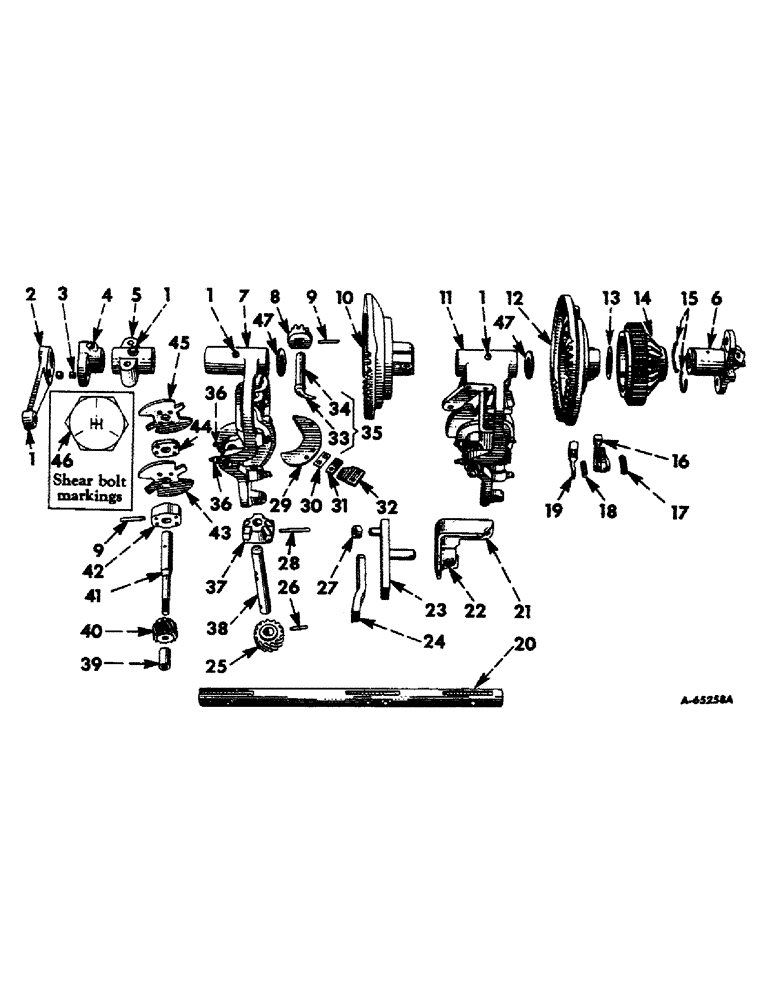

Запчасти Case IH 46 (41) - TWISTER AND TWISTER SHAFT, FOR NO. 46-W BALER

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

9шт.

2

664753R21

CRANK, needle w/bushing

1шт.

3

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

needle shear bolt

2шт.

4

663167R11

HUB

needle crank, w/bushing

1шт.

102637

NUT,1/2"-13, G5

hex., 1/2-20NF

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 3-1/4"

1шт.

Q72

KEY,5/16" Sq x 1 7/8", Par

sq., 3/8 x 1-7/8"

1шт.

5

663155R2

BEARING, twister shaft, left

1шт.

17602R1

BOLT, mach., hex-hd., 7/16-14NC x 2-3/4"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

664757R2

SUPPORT, insert, twister and gear

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

mach., hex-hd., 1/2-13NC x 1-1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

656895R1

NO LONGER SERVICED

FRAME, wire twister, left

1шт.

7

656895R12

NO LONGER SERVICED

TWISTER, wire, left, assembly

1шт.

8

656913R2

PINION

wire twister

2шт.

9

657196R1

PIN

roll, 1/4 x 2"

4шт.

10

656890R2

CAM

HOLDER, twister gear and stripper cam

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

mach., hex-hd., 1/2-20NF x 2"

1шт.

657206R1

KEY,3/8" Sq x 2 3/8", Par

sq., 3/8 x 2-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

656894R1

TWISTER

FRAME, wire twister, right

1шт.

11

656894R12

TWISTER

wire, right, assembly

1шт.

12

664760R1

CAM

GEAR, trip dog carrier and twister

1шт.

Q72

KEY,5/16" Sq x 1 7/8", Par

sq., 3/8 x 1-7/8"

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

666754R1

WASHER

RETAINER, twister drive gear (61- )

1шт.

216277

SCREW,Hex Soc Hd, 1/4"-20 x 1/2"

cap, hex-soc-hd., 1/4 x 1/2"

4шт.

14

664765R1

GEAR, twister drive

1шт.

664820R1

WASHER

plain, 2-13/32" ID x 3-1/16" OD x no. 16 ga.

1шт.

15

664819R1

SNAP RING, twister drive (57-60)

2шт.

16

663478R11

PAWL

DOG AND ROLLER, trip, assembly, Composed of

1шт.

DOG (NSS)

1шт.

V341

PAWL

ROLLER

1шт.

V690

PIN

STUD

1шт.

664947R1

PIVOT

PIN, pivot, 7/16"

1шт.

Q134

WASHER, plain, 15/32" ID x 13/16" OD x no. 18 ga.

1шт.

588099R1

WASHER

plain, 15/32" ID x 3/4" OD x no. 22 ga.

1шт.

17

V680

SPRING

trip dog

1шт.

18

R1003

SPRING

auxiliary trip dog

1шт.

19

663378R1

PAWL

DOG, auxiliary trip

1шт.

20

664773R1

SHAFT

wire twister

1шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

551769R1

WASHER

plain, 1-13/32" ID x 2" OD x no. 16 ga.

7шт.

21

658735R2

PIVOT AND SUPPORT, stripper actuating arm

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

2шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

mach., hex-hd., 3/8-16NC x 1-1/2"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

23

658737R91

ARM

stripper actuating (Welded assembly)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

10366H

WASHER

plain, 21/32" ID x 1-1/2" OD x no. 22 ga.

2шт.

24

658740R1

SUPPORT

ADJUSTMENT, stripper actuating arm

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 22 ga.

2шт.

25

656946R1

PINION

wire clamp and cutter helical driver

2шт.

26

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

Wire clamp and cutter driven pinion 1/4" x 1 1/4", Slotted

2шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

27

656952R1

ROLLER

stripper cam

1шт.

28

657197R1

LOCK PIN,1/4" x 2 1/4", Slotted

Pin, , disk pinion 1/4" x 2 1/4", Slotted

2шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

4шт.

29

657127R1

NO LONGER SERVICED

BLADE, keeper, wire holder

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach., hex-hd., 5/16-18NC x 3/4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

657163R1

SHIM

keeper blade (.010")

6шт.

30

657164R1

SHIM

wire knife and keeper blade (.010")

16шт.

31

657128R1

SPACER

wire knife

2шт.

32

657188R2

NO LONGER SERVICED

KNIFE, wire

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

mach., hex-hd., 5/16-18NC x 1-1/4"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

NOT SERVICED

1шт.

34

NOT SERVICED

1шт.

35

657783R91

TWISTER

SHAFT, wire twister, w/hook

2шт.

19336R1

LOCK PIN,1/8" x 11/16", Slotted

Pin, 1/8" x 11/16", Slotted

2шт.

551658R1

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 22 ga.

2шт.

36

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8"

9шт.

37

656912R2

DISC

PINION, disk

2шт.

37

658967R1

SHIM

adjusting, disk pinion (.015")

4шт.

38

656949R1

GEAR

SHAFT, disk pinion

2шт.

Q3478

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 14 ga.

8шт.

Q3501

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 16 ga.

8шт.

39

657001R1

BUSHING

wire holder shaft

2шт.

40

656947R1

BLOCK DRIVER

PINION, wire clamp and cutter helical driven

2шт.

41

656948R1

SHAFT

wire holder

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, 1/2-20NF

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

Q5035

WASHER

plain, 17/32" ID x 1" OD x no. 16 ga.

2шт.

Q3478

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 14 ga.

6шт.

551658R1

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 22 ga.

2шт.

42

656893R1

HUB

wire holder disk

2шт.

43

657123R2

HOLDER

DISK, wire holder, upper

2шт.

44

657124R2

SPACER

wire holder disk

2шт.

45

657126R2

HOLDER

DISK, wire holder, lower

2шт.

NLS

NO LONGER SERVICED

slotted f-hd., 5/16-18NC x 1-1/2"

8шт.

46

SHEAR BOLT, (No. 2 hardened cap screw) 5/16NC x 2-1/4", w/nut and lock washer

1шт.

47

667438R1

SHIM

wire twister shaft (.020")

2шт.

47

667439R1

SHIM

wire twister shaft (.005")

6шт.

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive (1 in 664757R2)

1шт.

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, lubrication, 45 degree elbow, 1/4-28 (1 in 664757R2)

1шт.
