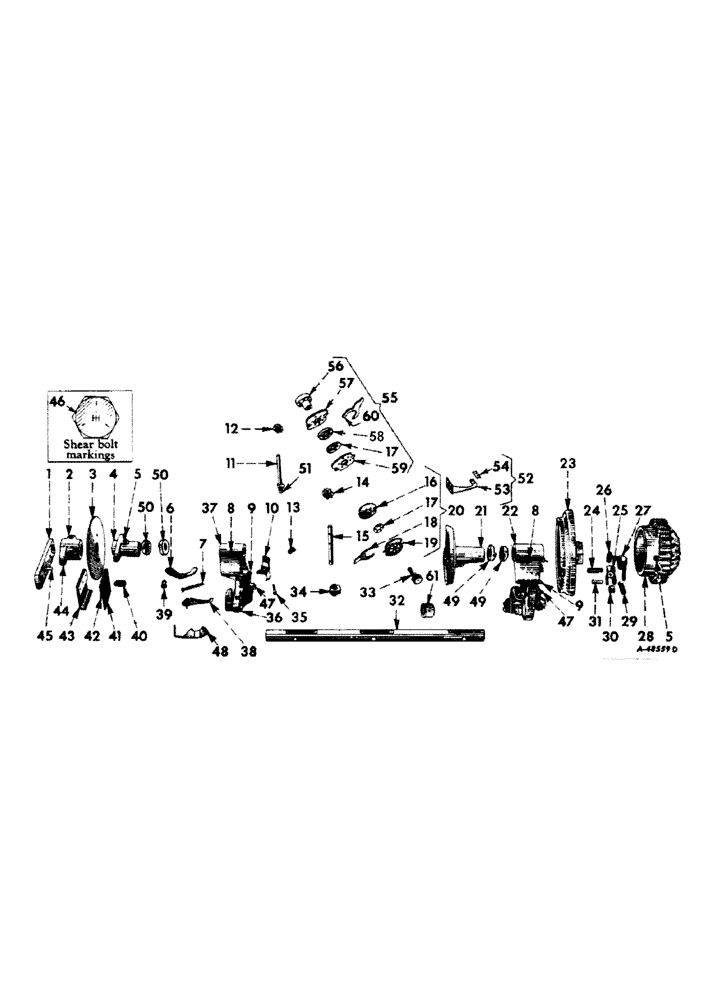

Запчасти Case IH 46 (36) - KNOTTER AND KNOTTER SHAFT, FOR NO. 46-T BALER

1

662283R1

CRANK

drive, needle

1шт.

109084

NUT,1/4"-20, G5

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

181347

BOLT,Hex, 5/16" - 24 x 2", Gr 5

SHEAR BOLT (No. 2 hardener cap screw) 5/16NF x 2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

668002R1

HUB

needle drive crank (Note A)

1шт.

2

662047R1

HUB, needle drive crank

1шт.

Q72

KEY,5/16" Sq x 1 7/8", Par

square (3/8 x 3/8 x 1-7/8")

1шт.

102637

NUT,1/2"-13, G5

1шт.

443056

PIN,3/8" x 2", Type F

Grooved, (Note A) 3/8" x 2", Type F

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

662153R1

PLATE

pressure, knotter brake

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

667818R1

FLANGE

BEARING, knotter, left (Note A)

1шт.

4

662008R1

BEARING, knotter, left

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, lubrication, straight self tapping, 1/4-28 (Note A)

1шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

FITTING, lubrication, straight, 5/16"

2шт.

6

668963R1

HOLDER

BLADE, keeper, cord holder (Note A)

2шт.

6

495474R3

SHIM

BLADE, keeper, cord holder

2шт.

7

667533R1

BOLT,3/8" - 16 x 2 7/8"

knotter jaw cam (63- )

2шт.

7

662573R1

BOLT, knotter jaw cam (57-62)

2шт.

664645R2

NUT, lock

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

4шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

6шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 30 degree elbow, 1/8"

4шт.

10

V619

CAM

knotter jam (57-62)

2шт.

10

667563R1

CAM

knotter jaw (63- )

2шт.

11

495420R23

HOOK

knotter (Welded assembly) (57-60)

2шт.

11

666511R92

TWISTER

HOOK, knotter (Welded assembly) (61- ) (Note B)

2шт.

667239R1

DISC

SHIM, knotter hook shaft and cord holder spindle

2шт.

666518R1

PIN, knotter hook jaw (57-60)

2шт.

666515R1

PIN

knotter hook jaw (61- )

2шт.

11

667587R91

CAM

PACKAGE, service, knotter hook and closing cam, Consists of

2шт.

667533R1

BOLT,3/8" - 16 x 2 7/8"

1шт.

667563R1

CAM

1шт.

666511R92

TWISTER

HOOK

1шт.

U13033

SPRING

1шт.

12

668959R1

GEAR

PINION, bill hook (Note A)

2шт.

12

495197R3

GEAR

PINION, bill hook

1шт.

Q3854

PIN

straight 27/32" x no. 6 ga

2шт.

13

V620

SPRING

knotter jaw cam (57-62)

2шт.

13

U13033

SPRING

knotter closing cam (63- )

2шт.

14

668958R1

NO LONGER SERVICED

PINION, cord holder drive bevel (Note A)

2шт.

14

495192R3

GEAR

PINION, bevel, cord holder drive shaft

2шт.

Q5066

PIN

straight, 31/32" x no. 6 ga.

2шт.

15

495433R1

SHAFT HOUSING

SHAFT, drive, cord holder

2шт.

667239R1

DISC

SHIM, knotter hook shaft and cord holder spindle

4шт.

Q232

WASHER

plain, 37/64" ID x 15/16" OD x no. 20 ga.

2шт.

Q3476

WASHER

plain, 37/64" ID x 15/16" OD x no. 24 ga.

2шт.

16

495462R2

DISC

DISK, cord holder

2шт.

473-11010

SCREW,Slotted Flat Hd, #10-24 x 5/8"

self-tapping, slotted-fil-hd., no. 10-24NC x 5/8"

12шт.

17

667238R1

SHIM

cord holder (.003")

4шт.

17

495504R1

SHIM

cord holder (.005")

6шт.

17

667547R1

SHIM, cord holder (.005") (Plastic) (Use with shippers twine)

4шт.

18

495475R2

BLADE

CLEANER, cord holder

2шт.

19

495446R2

HUB

DISK AND HUB, cord holder

2шт.

20

495619R93

DISC

DISK AND CLEANER, cord holder, assembly

2шт.

21

668971R1

CAM, knotter left (Note A)

1шт.

21

667819R1

CAM

knotter, left

1шт.

Q22

KEY

mach., straight (3/8 x 1/4 x 2-1/4")

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

22

668956R91

KNOTTER, assembly (Note A)

2шт.

22

495184R63

KNOTTER, assembly (57-60)

2шт.

22

666510R92

KNOTTER ASSY.

KNOTTER, assembly (61- )

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

plain, 15/32" ID x 1" OD x no. 16 ga.

2шт.

23

668970R1

CARRIER

trip dog (Note A)

1шт.

23

662037R1

CARRIER

trip dog

1шт.

327184R1

BOLT,Hex, 1/2"-20 x 2", G8

mach., hex-hd., type 4, 1/2-20NF x 2"

1шт.

Q3728

KEY,Gib, 3/8" Sq x 2 1/8" Tap

tapered (3/8 x 2-1/8") (Note A)

1шт.

443057

GROOVED PIN,3/8" x 2 1/4", Type F

Pin, Grooved, (Note A) 3/8" x 2 1/4", Type F

1шт.

Q1376

KEY

tapered (3/8 x 3/8 x 2-1/4")

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

664947R1

PIVOT

trip dog

1шт.

Q134

WASHER, plain, 15/32" ID x 13/16" OD x no. 18 ga.

1шт.

588009R1

WASHER, plain, 15/32" ID x 3/4" OD x no. 22 ga.

1шт.

25

655712R11

PAWL

DOG, trip, w/roller and stud

1шт.

26

R1003

SPRING

auxiliary trip dog

1шт.

27

662048R1

NO LONGER SERVICED

DOG, auxiliary trip

1шт.

28

662036R1

GEAR

drive, knotter

1шт.

29

V680

SPRING

trip dog

1шт.

30

V341

PAWL

ROLLER, trip dog

1шт.

31

V690

PIN

STUD, trip dog roller

1шт.

32

662143R1

SHAFT, knotter (Note A)

1шт.

32

668973R1

SHAFT, knotter (Note A)

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

Q251

WASHER

plain, 1-7/32" ID x 1-3/4" OD x no. 22 ga.

11шт.

615264R1

WASHER

plain, 1-7/32" ID x 2" OD x no. 22 ga.

4шт.

Q120

WASHER

plain, 1-7/32" ID x 2" OD x no. 22 ga. (Note A)

1шт.

Q140

WASHER

plain, 1-7/32" ID x 2" OD x no. 16 ga. (Note A)

3шт.

33

668415R1

SPINDLE

cord holder (Note A)

2шт.

33

668978R1

GEAR

cord holder helical driven (Note A)

2шт.

NLS

NO LONGER SERVICED

NUT, hex., cd or zn-pltd, 7/16-14NC (Note A)

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

hex., jam, cd or zn-pltd, 7/16-14NC (Note A)

2шт.

33

495437R1

NO LONGER SERVICED

SPINDLE AND GEAR, cord holder

2шт.

Q5073

PIN

straight, 1-3/8" x no. 6 ga.

2шт.

667239R1

DISC

SHIM, knotter hook shaft and cord holder spindle

4шт.

Q232

WASHER

plain, 37/64" ID x 15/16" OD x no. 20 ga.

2шт.

Q3476

WASHER

plain, 37/64" ID x 15/16" OD x no. 24 ga.

2шт.

34

668960R1

GEAR

PINION, helical, cord holder (Note A)

2шт.

34

495425R1

GEAR

PINION, helical, cord holder

1шт.

Q5066

PIN

straight, 31/32" x no. 6 ga.

2шт.

35

V618H

SPACER

PIECE, wearing, knotter frame

2шт.

117898

PIN

straight, 5/32 x 1-1/16"

2шт.

36

495965R94

KNOTTER ASSY.

FRAME, knotter, w/wearing piece

2шт.

36

668957R11

FRAME W/WEARING PIECE, knotter (Note A)

2шт.

37

495184R6

FRAME

NOT SERVICED

2шт.

38

495463R4

KNIFE

twine

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

mach., hex-hd., cd-pltd, 1/4-20NC x 3/4"

4шт.

102380

SHANK

WASHER, lock, cd-pltd, 1/4"

4шт.

120392

WASHER,1/4", SAE

plain, cd-pltd, 9/32" ID x 5/8" OD x no. 16 ga.

12шт.

39

495432R1

SCREW

STUD, pivot, cord holder keeper

12шт.

40

T823M

SPRING

knotter brake (57-60)

1шт.

17624R1

BOLT, mach., hex-hd., 5/16-18NC x 3"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC x 3"

2шт.

Q397

WASHER

plain, 11/32" ID x 3/4" OD x no. 16 ga.

1шт.

40

U13033

SPRING

knotter brake (61- )

2шт.

17600R1

BOLT, mach., hex-hd., 5/16-18NC x 2-3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x no. .065" ga.

2шт.

41

662098R1

BRAKE SHOE

SHOE, knotter shaft brake, right (1961 up)

1шт.

41

662096R91

BRAKE

SHOE, knotter shaft brake, right (Riveted assembly) (57-60)

1шт.

42

662100R1

LINING

knotter shaft brake (57-60)

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

tubular, 3/16 x 19/32"

6шт.

42

668997R1

LINING

knotter shaft brake (1961 up)

2шт.

43

662097R91

BRAKE

SHOE, knotter shaft brake, left (Riveted assembly) (57-60)

1шт.

43

662099R1

SHOE

knotter shaft brake, left (1961 up)

1шт.

44

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

needle shear bolt

1шт.

45

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

46

SHEAR BOLT, (No. 2 hardener cap screw) 5/16NF x 2", w/nut and lock washer

1шт.

47

274510

FITTING

lubrication, 90 degree elbow, 1/4"

2шт.

48

667408R1

SPRING

twine end retainer

2шт.

49

667813R1

COLLAR CLAMP

COLLAR, adjusting, knotter shaft

2шт.

443100

STUD

no. 12 rd-hd. drive

2шт.

50

667813R1

COLLAR CLAMP

COLLAR, adjusting, knotter shaft (Note A)

2шт.

443100

STUD

no. 12 rd-hd. drive

2шт.

51

666517R92

HOOK

JAW ASSY, knotter (Note A)

2шт.

52

668961R21

KNIFE

ASSY, twine (Note A)

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

mach., cd or zn-pltd., 1/4-20NC x 3/4"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

cd or zn-pltd, 9/32" ID x 5/8 OD x 16 ga.

12шт.

53

NOT SERVICED SEPARATELY, order knife assy

1шт.

54

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife (Note A)

2шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

mach., pan-hd-slt., cd or zn-pltd., 8-32 x 3/16"

2шт.

55

668964R91

HOLDER

DISK AND CLEANER ASSY, cord holder (Note A)

2шт.

56

668965R1

HUB

cord holder (Note A)

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

57

668966R1

DISC

DISK, rear, cord holder (Note A)

2шт.

58

668967R1

RETAINER

SPACER, cord holder (Note A)

2шт.

59

668968R1

DISC

DISK, front, cord holder (Note A)

2шт.

110532

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

12шт.

60

668969R1

NO LONGER SERVICED

CLEANER, cord holder (Note A)

2шт.

61

668972R1

SPACER, knotter cam left (Note A)

1шт.

668866R91

PACKAGE, service, knotter cam, Consists of

1шт.

667819R1

CAM

1шт.

667813R1

COLLAR CLAMP

COLLAR

2шт.

443100

STUD

2шт.
