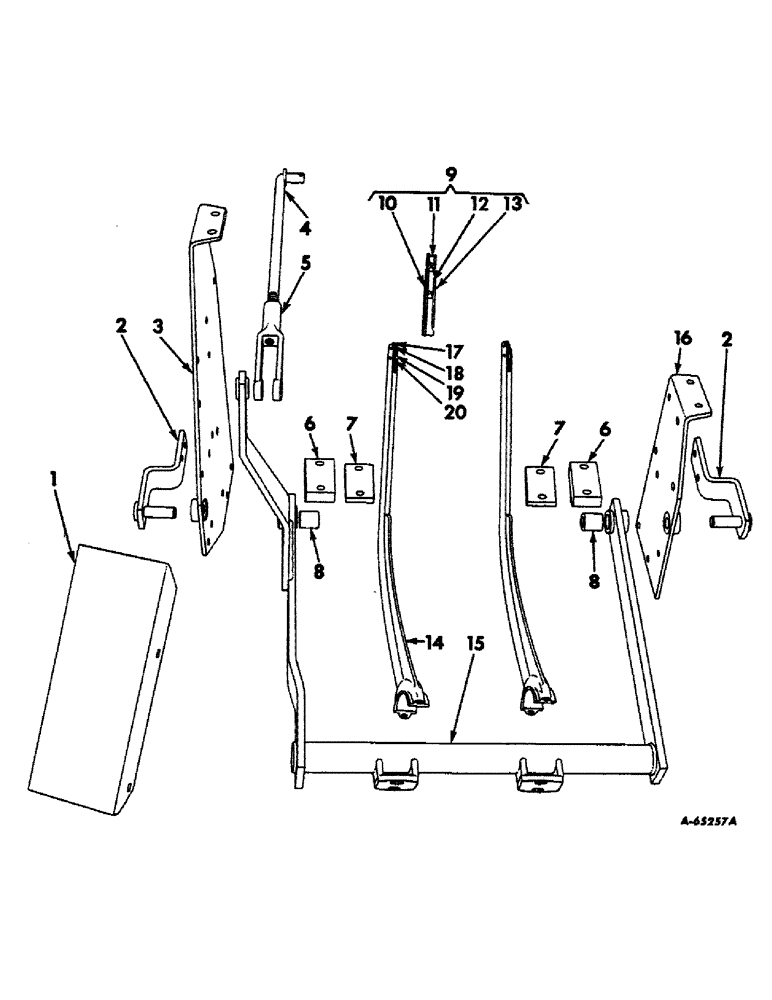

Запчасти Case IH 46 (34) - NEEDLE, NEEDLE PITMAN AND NEEDLE DRIVE SHIELD, FOR NO. 46-W BALER

1

664816R2

SHIELD, needle drive

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

664774R91

ARM

STRAP, needle pivot hammer (Welded assembly)

2шт.

15039R1

BOLT

carriage, 3/8-16NC x 1-1/2"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16066R1

WASHER

plain, 25/32" ID x 1-1/2" OD x no. 16 ga.

6шт.

3

664769R91

SUPPORT, twister shaft, left (Welded assembly)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

6шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

3шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4

3шт.

102635

NUT,3/8"-16, G5

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

4

664767R1

ROD, needle Pitman

1шт.

216353

NUT,1"-14, G5

hex., 1-14NF

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

551658R1

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 16 ga.

1шт.

5

665438R1

CLEVIS COUPLING

CONNECTOR, needle Pitman

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

138145

CLEVIS PIN,3/4" x 1.910"

PIN, rod end, 3/4 x 1-3/64"

1шт.

6

664818R1

BUMPER

needle

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

mach., hex-hd., 3/8-16NC x 1-3/4

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1504

WASHER

plain, 13/32" ID x 7/8" OD x no. 16 ga.

4шт.

7

665087R1

PLATE

needle bumper backup

2шт.

8

664787R1

BUSHING

BEARING, needle pivot

2шт.

9

NOT SERVICED

1шт.

10

NOT SERVICED

1шт.

11

657047R1

STOP

SHEAVE, wire needle tip (57-61)

2шт.

656886R1

PIN, needle tip

2шт.

12

657046R1

SHEAVE, wire needle (57-61)

2шт.

13

NOT SERVICED

1шт.

14

667411R11

NEEDLE

wire, assembly

2шт.

15

664781R92

NO LONGER SERVICED

PIPE, needle tie (Welded assembly)

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12258R1

WASHER

plain, 21/32" ID x 1-1/4" OD x no. 11 ga.

4шт.

16

667683R11

SUPPORT

twister shaft, right (Welded assembly)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

2шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

17

667413R1

SPACER

PIECE, needle tip wearing (62- )

2шт.

18

667414R1

BUSHING

needle tip (62- )

2шт.

102688

RIVET,Csk, 3/16" x 13/16"

csk-hd., 3/16 x 13/16"

2шт.

19

667412R1

ROLL

SHEAVE, wire needle (62- )

2шт.

20

667415R1

BUSHING

needle sheave (62- )

2шт.

46-413

RIVET,Csk, 1/4" x 3/4"

csk-hd., 1/4 x 13/16"

2шт.
