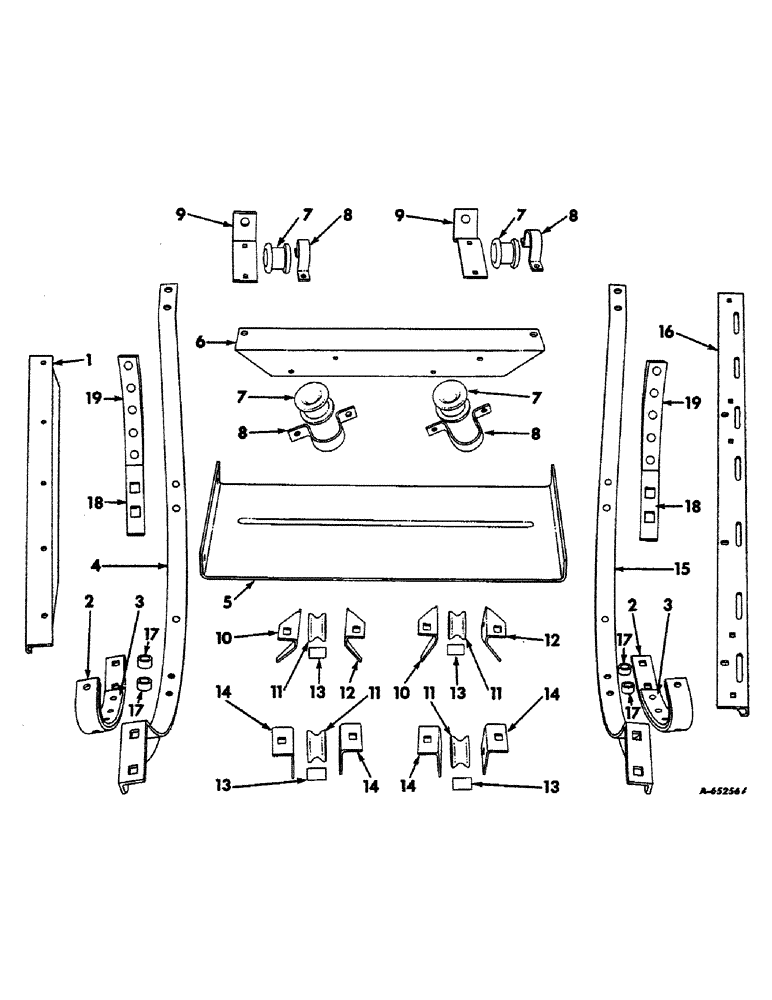

Запчасти Case IH 46 (32) - NEEDLE GUARDS AND GUIDES, FOR NO. 46-W BALER

1

662152R21

GUSSET, axle, left

1шт.

17427R1

BOLT, mach., hex-hd., 7/16-14NC x 1"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

495248R91

BRAKE

needle, w/retarder

2шт.

15039R1

BOLT

carriage, 3/8-16NC x 1-1/2"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

plain, 13/32" ID x 1" OD x no. 16 ga.

4шт.

3

495250R1

RETARDER, needle

2шт.

136143

PIN

RIVET, tubular, 3/16 x 7/16"

12шт.

4

667419R92

ANGLE, needle guard, left (Welded assembly)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

664814R1

SHIELD, needle

4шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

666726R1

ANGLE, wire guide

1шт.

7

11833PB

GUIDE

wire

4шт.

8

11792P

HOLDER

wire guide

4шт.

17406R1

SCREW,Hex, 1/4" - 20 x 5/8"

BOLT, mach., hex-hd., 1/4-20NC x 5/8"

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

9

664811R1

BRACKET, wire guide

2шт.

10

664803R1

GUIDE

needle, left

2шт.

15543R1

BOLT

plow, 3/8-16NC x 3/4"

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

mach., hex-hd., 3/8-16NC x 1-3/4"

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

664755R1

PULLEY

SHEAVE, wire

4шт.

12

664804R1

GUIDE, needle, right

2шт.

15543R1

BOLT

plow, 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

664800R1

SPACER, wire sheave

4шт.

14

664805R1

BRACKET

rear sheave

4шт.

15543R1

BOLT

plow, 3/8-16NC x 3/4"

4шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

mach., hex-hd., 3/8-16NC x 1-3/4"

2шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

667420R92

ANGLE, needle guard, right (Welded assembly)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

662211R21

GUSSET, axle, center (Welded assembly)

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

5шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

17

650676R1

SPACER,3/8" X-Strng Pipe x 5/8"

needle brake

4шт.

18

667416R91

BRAKE

front needle (Riveted assembly)

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

plain, 13/32" ID x 1" OD x no. 16 ga.

2шт.

19

667418R1

LINING

front brake

2шт.
