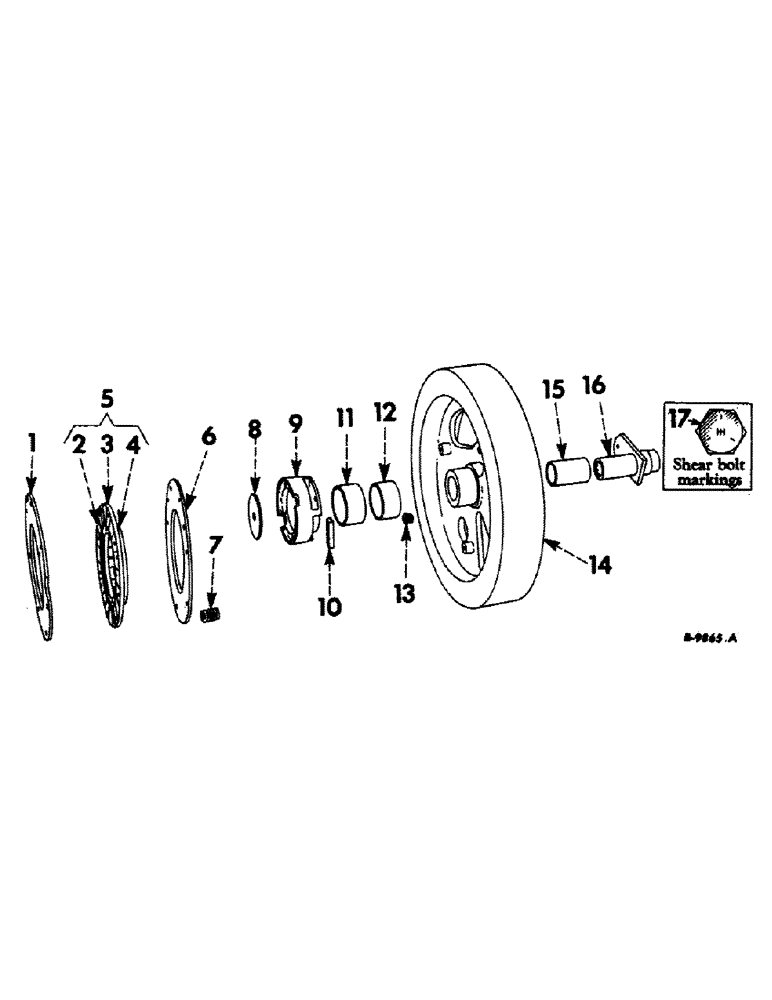

Запчасти Case IH 46 (29) - FLYWHEEL AND CLUTCH

1

662270R1

PLATE

pressure, clutch

1шт.

2

662046R1

DISC, clutch

1шт.

13837R1

RIVET, csk-hd., 1/4 x 5/8 x 54 degrees

10шт.

3

662045R11

FACING, CLUTCH

w/rivets

1шт.

113342

RIVET,Tr Hd, 3/16" x 3/8", Brass

12шт.

4

662044R1

HOUSING, clutch lug

1шт.

5

662043R91

DISC

clutch, assembly

1шт.

6

662269R1

PLATE

clutch, back

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

M1015

SPRING

clutch

7шт.

15148R1

BOLT, carriage, dld., 1/2-13NC x 3"

7шт.

102637

NUT,1/2"-13, G5

7шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

7шт.

Q5111

WASHER

plain, 9/16" ID x 1-1/4" OD x no. 7 ga.

7шт.

8

662103R1

THRUST WASHER

thrust, flywheel

1шт.

9

662014R11

CARRIER

over-running clutch dog, w/bushing

1шт.

17447R1

BOLT

mach., hex-hd., 7/16-14NC x 1-1/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

10

662241R1

RATCHET

DOG, over-running clutch

2шт.

662558R1

PIN

rod end (.496 x 1-7/8")

2шт.

11

662078R1

BUSHING

clutch dog carrier

1шт.

12

662120R1

BUSHING

flywheel, outer

1шт.

13

662122R1

SHEAR BOLT BUSHING,Hex, 3/4" - 16 x 1/2"

BUSHING, shear bolt

2шт.

14

662013R11

FLYWHEEL, w/bushing

1шт.

15

662077R1

BUSHING

flywheel, inner

1шт.

16

662271R92

HUB, flywheel (Welded assembly)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

17

181347

BOLT,Hex, 5/16" - 24 x 2", Gr 5

SHEAR BOLT (No. 2 hardened cap screw) 5/16NF x 2"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

664546R11

SPACER

clutch (Set of 7) (Not illustrated)

1шт.
