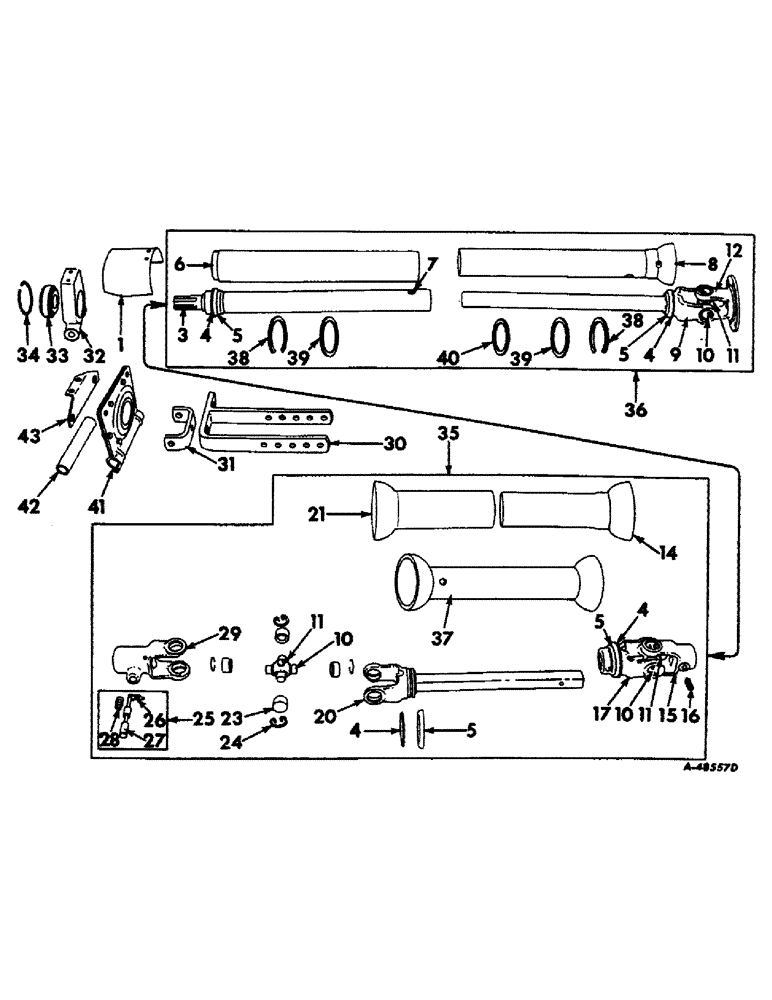

Запчасти Case IH 46 (27) - POWER DRIVE PARTS
№
Артикул
Название
Примечание
Количество
1
662249R11
SHIELD W/DECALCOMANIA, power take-off bearing box
1шт.
3
663104R91
DRIVE, tubular (Welded assembly) (57-61)
1шт.
3
666740R91
SHAFT
DRIVE, tubular (Welded assembly) (62- )
1шт.
4
662589R1
THRUST WASHER
thrust (57-61)
4шт.
5
461346R1
BEARING
nylon (57-61)
4шт.
5
464920R1
NYLON BEARING,2.08" ID x 2.8" OD x 0.38"
nylon (62- )
4шт.
6
663103R91
SHIELD, outer (Welded assembly) (57-61)
1шт.
6
666738R91
SHIELD, inner (Welded assembly) (62- )
1шт.
7
102467H
FITTING
lubrication, straight, 1/4-28NF
1шт.
8
663102R91
SHIELD, inner (Welded assembly) (57-61)
1шт.
8
666739R91
SHIElD, outer (Welded assembly) (62- )
1шт.
9
663100R91
YOKE AND SHAFT (Welded assembly) (57-61)
1шт.
9
666737R91
YOKE
AND SHAFT (Welded assembly) (62- )
1шт.
10
569046R1
CROSS
bearing
3шт.
10
569047R91
REPAIR KIT
CROSS, bearing (Repair kit)
3шт.
11
109350
FITTING, lubrication, 67-1/2 degree elbow, 1/8"
3шт.
12
663101R91
YOKE
flange
1шт.
14
663097R91
SHIELD, inner (Welded assembly) (57-61)
1шт.
15
576433R1
FORK
YOKE
1шт.
16
38904K
SET SCREW,1/2" - 20 x 1-9/16"
SCREW, set
1шт.
114496
HOURMETER,Jam, 1/2"-20, G5
NUT, hex. 1/2-20NF
1шт.
17
666736R1
YOKE
(62- )
1шт.
17
663095R1
YOKE (57-61)
1шт.
577247R1
LOCK PIN,3/8" x 2", Slotted
Pin, 3/8" x 2", Slotted
1шт.
20
663093R91
YOKE AND SHAFT (Welded assembly) (57-61)
1шт.
20
666734R91
YOKE
AND SHAFT (Welded assembly) (62- )
1шт.
21
663094R91
SHIELD, outer (Welded assembly) (57-61)
1шт.
23
569044R91
BEARING ASSY
CUP, needle, assembly
12шт.
24
576420R1
RING
SNAP RING
12шт.
25
455346R21
PIN
lock, assembly
1шт.
26
661406R1
LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk
X-WASHER
1шт.
27
455346R2
PIN
lock
1шт.
28
455347R1
VALVE SPRING
SPRING
1шт.
29
568100R92
YOKE
w/lock pin, assembly
1шт.
30
662275R91
SUPPORT, power take-off shaft bearing pivot bracket (Welded assembly)
1шт.
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
1шт.
103374
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
1шт.
662086R1
SCREW, cap, hex-hd. 1/2-20NF x 5-1/4"
1шт.
31
667462R1
BRACKET
pivot, power take-off shaft bearing (63- )
1шт.
31
662278R1
BRACKET, pivot, power take-off shaft bearing (57-62)
1шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
1шт.
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
2шт.
103374
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
2шт.
662084R1
SCREW, cap, hex-hd., 1/2-20NF x 1-1/2"
1шт.
662086R1
SCREW, cap, hex-hd., 1/2-20NF x 5-1/4"
1шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
plain, 17/32" I.D. x 1-1/16" O.D. x no. 13 ga.
1шт.
32
662022R1
BOX
power take-off bearing, center (57-62)
1шт.
17404R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
mach., hex-hd., 5/16-18NC x 1/2"
2шт.
33
558128R91
BEARING
propeller shaft, front (57-62)
1шт.
34
UA20551
RING
SNAP RING, propeller shaft bearing, front (57-62)
1шт.
35
666729R91
SHAFT, main universal drive shaft, assembly (Front half)
1шт.
36
666730R91
SHAFT, main universal drive shaft, assembly (Rear half)
1шт.
37
666735R91
SHIELD, front half (Welded assembly) (62- )
1шт.
38
613436R1
CLAMP
SNAP RING (62- )
1шт.
39
613437R1
THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk
thrust (62- )
1шт.
40
613439R1
BRACKET
BEARING, inner shield nylon (62- )
1шт.
41
ST669
BEARING ASSY,35mm ID
BEARING, power take-off shaft, front (63- )
1шт.
42
667460R1
BUSHING
power take-off center bearing (63- )
1шт.
17843R1
BOLT, machine, hex-hd., 1/2-13NC x 5-1/2"
1шт.
102637
NUT,1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
43
667461R1
BRACKET
power take-off shield (63- )
1шт.
17411R1
BOLT,Hex, 5/16"-18 X 3/4", G2
machine, hex-hd., 5/16-18NC x 3/4"
4шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
4шт.
Выбрано товаров: 66
