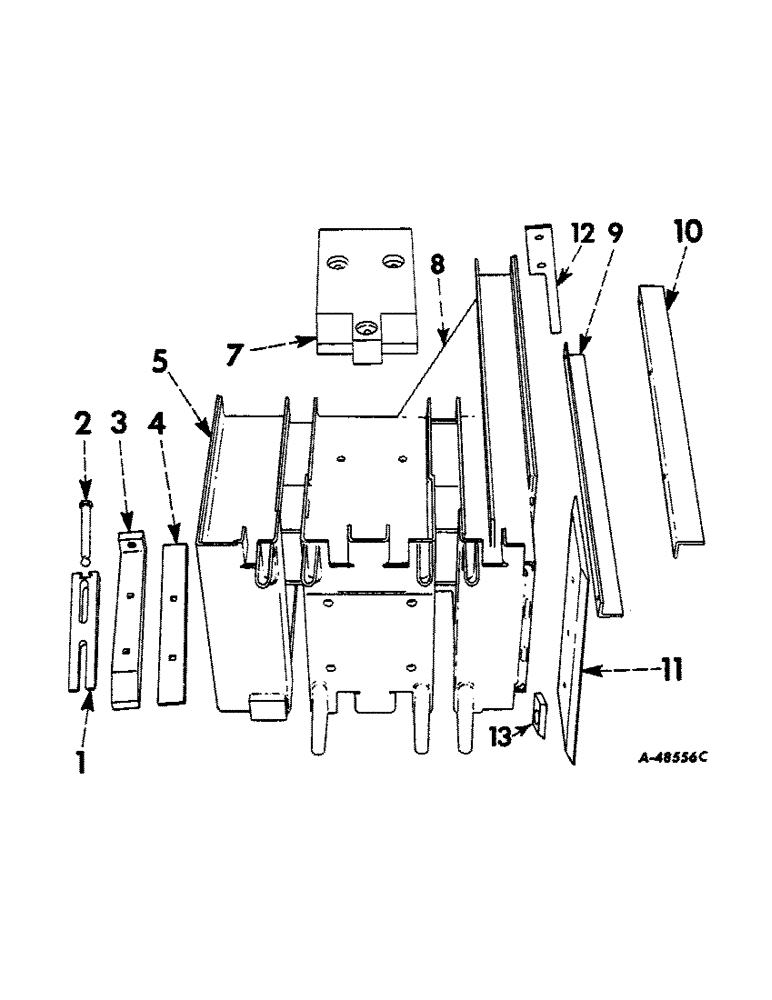

Запчасти Case IH 46 (26) - PLUNGER

1

662011R1

WEDGE

leveling, plunger

1шт.

2

662085R1

BOLT

adjustment, plunger

1шт.

3

662010R1

SLIDE

leveling, plunger

1шт.

4

662113R1

RUNNER

plunger, left

1шт.

15642R1

BOLT,3/8"-16 x 2 1/2", G2

plow, 3/8-16NC x 2-1/2"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

662216R93

PLUNGER, (Welded assembly)

1шт.

7

662507R2

BLOCK

plunger, upper center

1шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

carriage, 3/8-16NC x 2"

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

662111R1

RUNNER

thrust, plunger, upper and lower

2шт.

104193

RIVET

csk-hd., 3/8 x 1/2"

8шт.

9

662123R1

ANGLE

plunger runner, lower right

1шт.

181354

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1/2"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

662131R1

ANGLE

plunger runner, upper right

1шт.

181354

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1/2"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

662119R2

BLADE

KNIFE, hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, , Repair Hd 5/8"-11 x 1 1/2", G2, Full Thd

3шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

12

664339R1

SCRAPPER, plunger guide

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach., hex-hd., 5/16-18NC x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

667572R1

SPACER, hay knife bolt

1шт.
