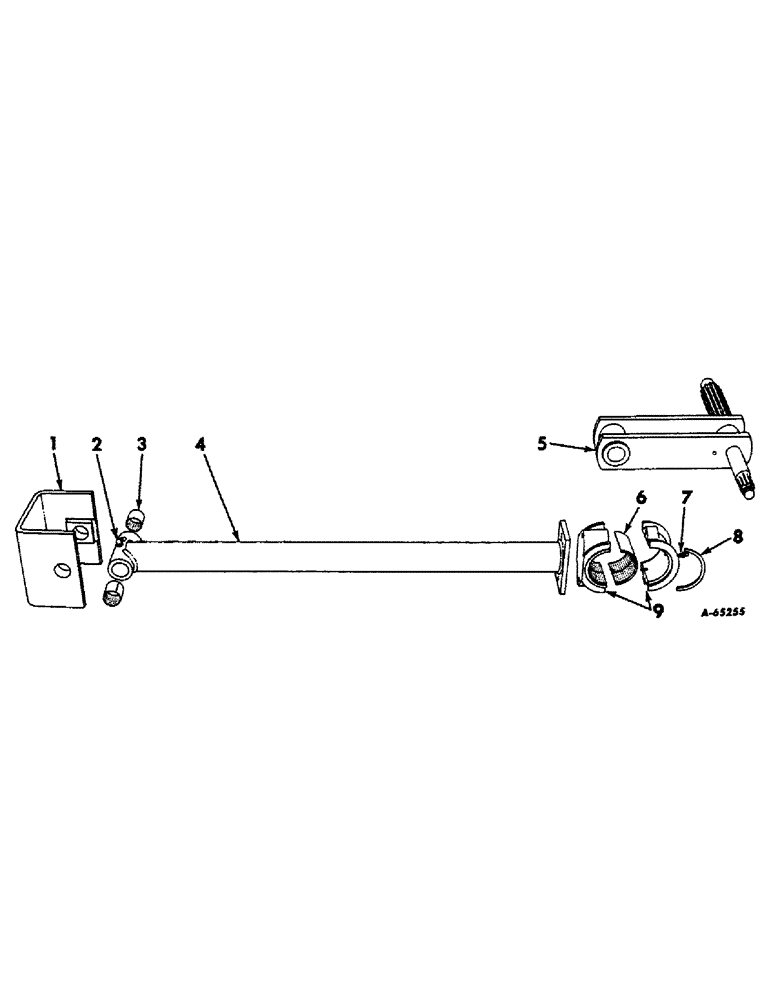

Запчасти Case IH 46 (25) - PLUNGER PITMAN, FOR NO. 46-W BALER

1

662161R92

SUPPORT, plunger Pitman (Welded assembly)

1шт.

2

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8"

1шт.

3

664976R1

BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L

BEARING, Pitman, rear

2шт.

4

665714R91

TUBE,35.75" Length

Pitman (Welded assembly)

1шт.

5

664967R91

CRANK, plunger (Welded assembly)

1шт.

6

664975R1

BEARING LINER

BEARING, Pitman, front

2шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

8

665450R1

SEAL

SEAL, plunger crank bearing

4шт.

9

665716R11

BEARING ASSY

Pitman, front, assembly

1шт.

18570R1

BOLT, mach., hex., dld., 7/16-14NC x 3-3/4"

2шт.

272070

TUBE

slotted, hex., 7/16-14NC

2шт.

108636

PIN

cotter, 3/32 x 1-1/2"

2шт.
