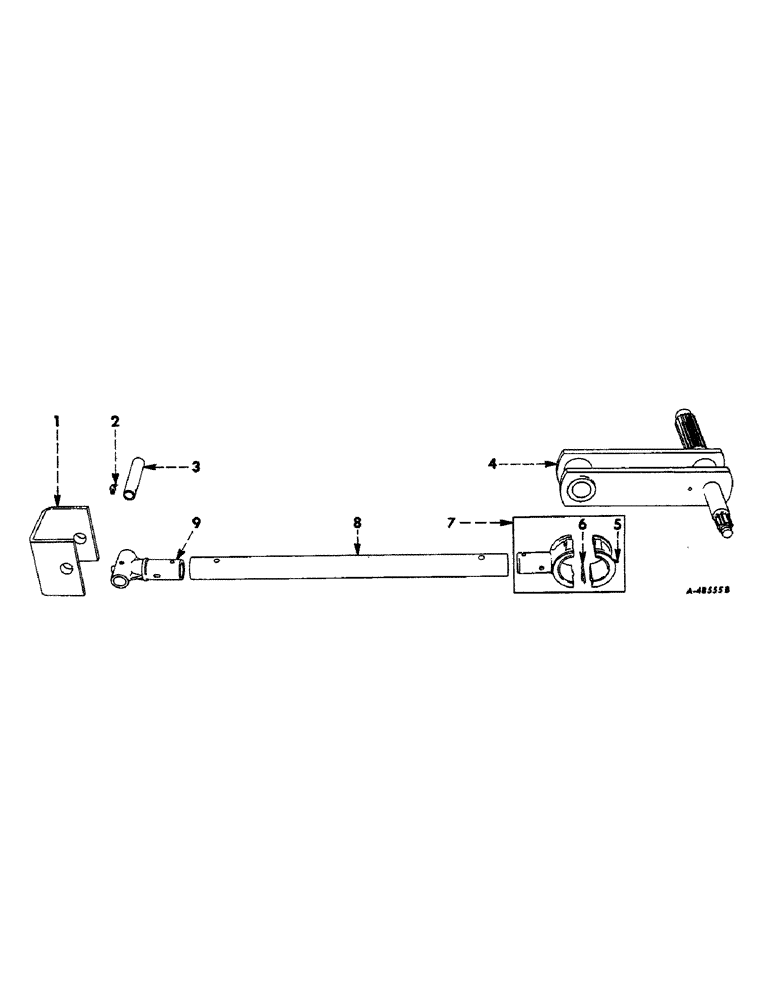

Запчасти Case IH 46 (24) - PLUNGER PITMAN, FOR NO. 46-T BALER

1

662161R92

SUPPORT, plunger Pitman (Welded assembly)

1шт.

102639

NUT,5/8"-11, G5

4шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/4"

4шт.

2

271284

YOKE

lubrication, 65 degree elbow, 1/8"

1шт.

3

662069R1

PIN

plunger Pitman

1шт.

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

1шт.

657196R1

PIN

roll, 1/4 x 2"

1шт.

104560

WASHER, plain, 9/64" I.D. x 7/16" O.D. x no. 18 ga.

1шт.

4

662165R91

CRANK

plunger (Welded assembly)

1шт.

70246D

NUT

slotted, hex., 1-1/8-12NF

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

495278R2

SHIM

Pitman bearing

16шт.

7

495177R11

NO LONGER SERVICED

BEARING, plunger Pitman, front, assembly

1шт.

664291R1

BOLT,Hex, 1/2" - 13 x 2", Drilled

SCREW, cap, hex-hd., 1/2-13NC x 2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

662208R1

PITMAN

plunger

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, hex., 1/2-13NC

2шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

662015R1

BEARING ASSY,1.256" ID x 2.375" OD x 4.1875"

Pitman, rear

1шт.
