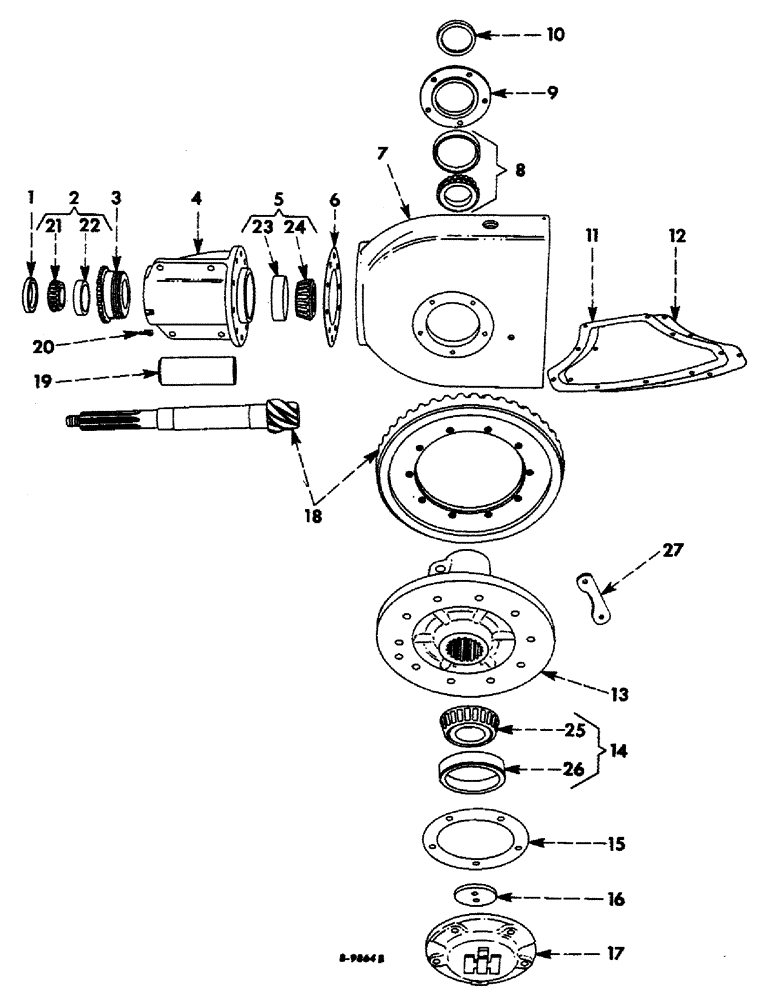

Запчасти Case IH 46 (21) - MAIN DRIVE

1

46983D

OIL SEAL

OIL SEAL, pinion shaft, front

1шт.

2

62528R91

BEARING ASSY,1.7505" ID x 3.266" OD x 1"

BEARING, main drive pinion, front, assembly

1шт.

3

662035R1

CAGE

main drive bevel pinion bearing

1шт.

4

662001R1

SPARE PART

BOX, main drive gear, front

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

mach., hex-hd., 1/2-13NC x 1-1/2"

2шт.

17523R1

BOLT, mach., hex-hd., 1/2-13NC x 2"

2шт.

102637

NUT,1/2"-13, G5

4шт.

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

662061R91

BEARING ASSY,1.9375" ID x 4.125" OD x 1.4375"

pinion shaft, rear, assembly

1шт.

6

662088R1

SHIM

main drive gear box (.020")

2шт.

6

662089R1

SHIM

main drive gear box (.007")

3шт.

6

662090R1

SHIM

main drive gear box (.005")

3шт.

7

666664R1

BOX, main drive gear, rear (No. 46-W baler) (Note A)

1шт.

7

662000R1

BOX

main drive gear, rear (Note A)

1шт.

664665R1

BOLT

mach., hex-hd., 1/2-13NC x 1-1/2"

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, 1/4"

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG, pipe, 1"

1шт.

664666R1

BOLT

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

ST2084

BEARING

main drive gear, right, assembly, Composed of

1шт.

ST2083

BEARING ASSY

CONE

1шт.

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

CUP

1шт.

9

662017R1

COVER

main drive bevel gear bearing, right

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

10

662066R91

OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk

OIL SEAL, plunger crank, right

1шт.

11

662292R1

GASKET

main drive gear housing cover

1шт.

12

662104R1

COVER, main drive gear housing

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach., hex-hd., 5/16-18NC x 3/4"

9шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

13

662033R1

NO LONGER SERVICED

HUB, main drive bevel gear

1шт.

181432

BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-5/8"

10шт.

662087R1

SCREW

cap, hex-hd., 5/8-18NF x 3"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

971539R91

ROLLER BEARING,2" ID x 4.4375" OD x 1.183"

main drive gear

1шт.

15

662091R1

SHIM

main drive bevel gear (.005")

8шт.

15

662092R1

SHIM

main drive bevel gear (.020")

2шт.

15

662093R1

SHIM

main drive bevel gear (.007")

4шт.

16

662117R1

RETAINER

WASHER, thrust, plunger crankshaft

1шт.

15507H

SCREW,Hex, 5/16" - 24 x 1"

cap, hex-hd., dld., 5/16-24NF x 1"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

666665R1

CAP, main drive bevel gear bearing (No. 46-W baler)

1шт.

17

662002R1

CAP

main drive bevel gear bearing (No. 46-T baler)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC 1-1/4"

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

18

662050R11

STRIPPER PACKAGE

GEAR SET, ring and pinion

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, slotted, hex., 7/8-14NF

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

19

662136R1

SPACER, main drive bevel pinion bearing

1шт.

20

662108R1

CAGE

LOCK, main drive pinion bearing cage

1шт.

17400R1

BOLT, mach., hex-hd., 1/4-20NC x 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

62923R91

ROLLER BEARING

CONE, main drive front bearing

1шт.

22

130503H

BEARING CUP

CUP, main drive front bearing

1шт.

23

107577R1

BEARING, CUP

CUP, pinion shaft rear bearing

1шт.

24

662062R91

ROLLER BEARING

CONE, pinion shaft rear bearing

1шт.

25

971528R91

BEARING

CONE, main drive gear bearing

1шт.

26

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP, main drive gear bearing

1шт.

27

261622R1

PLATE, LOCKING

LOCK PLATE, main drive gear hub retainer cap screw

5шт.

663002R91

BREATHER

VENT, air, main drive gear box (Not illustrated)

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

13шт.

667604R1

CAP

1шт.

667600R1

SPARE PART

CASE

1шт.

667602R11

COVER

1шт.

667603R1

GASKET

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

376106R1

SCREW

5шт.

297330R1

BOLT

SCREW

5шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
