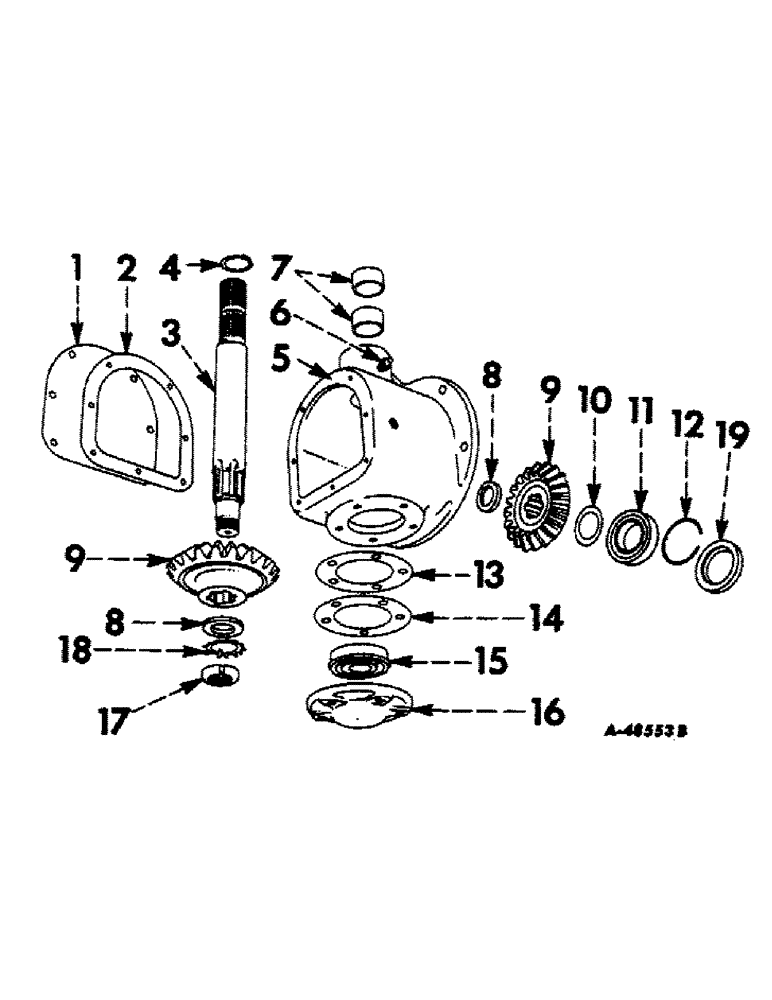

Запчасти Case IH 46 (19) - PACKER DRIVE GEAR BOX

1

662301R1

CAP, packer drive gear box

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

mach., hex-hd., 1/4-20NC x 1/2"

7шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

2

662293R1

GASKET

packer drive gear box

1шт.

3

662075R1

SHAFT

packer drive

1шт.

4

659380R1

SNAP RING,#137, Ext

Ring, Snap, , packer drive shaft #137, Ext

1шт.

5

662027R21

BOX

gear, packer drive, w/bushings

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

mach., hex-hd., 3/8-16NC x 7/8"

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

2шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

2шт.

102635

NUT,3/8"-16, G5

4шт.

103867

PLUG

pipe, 3/8"

1шт.

495538R1

PLUG, pipe, 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

662081R1

BUSHING

packer drive

2шт.

8

495445R1

WASHER

clamp, packer bevel gear

2шт.

9

495417R2

GEAR

miter, packer

2шт.

10

557279R1

WASHER

plunger crank

4шт.

11

659474R91

BEARING

bevel gear drive shaft (59- )

1шт.

11

662060R91

BEARING

bevel gear drive shaft (57-58)

1шт.

12

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , packer drive shaft brg 3.156", Int, #315

1шт.

13

659810R1

SHIM

packer gear case (.020")

2шт.

13

659811R1

SHIM

packer gear case (.005")

4шт.

14

659819R1

GASKET

bearing cover

1шт.

15

ST290

BEARING, BALL

BEARING, packer drive shaft

1шт.

16

659793R1

COVER

packer gear case

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach., hex-hd., 3/8-16NC x 1-1/4"

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

17

127709

NUT

lock, packer drive shaft

1шт.

18

127686

LOCK WASHER,Type W-06

WASHER, lock, packer drive shaft

1шт.

19

664657R91

SEAL

OIL SEAL, plunger crankshaft

1шт.
