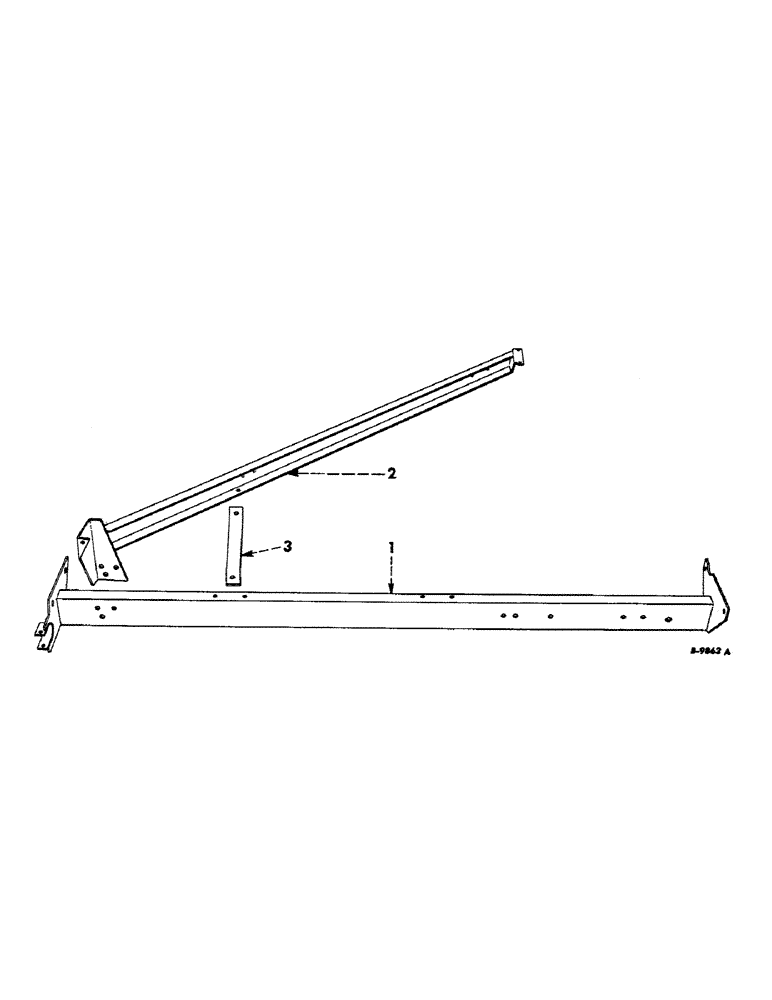

Запчасти Case IH 46 (17) - AXLE AND DIAGONAL BRACE

1

662988R95

AXLE, (Welded assembly)

1шт.

137333

PIN, cotter, cd-pltd., 5/16 x 3"

1шт.

2

662358R94

BRACE, diagonal (Welded assembly)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

17427R1

BOLT, mach., hex-hd., 7/16-14NC x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

665582R1

STRAP, stiffener, diagonal brace (61- )

1шт.
