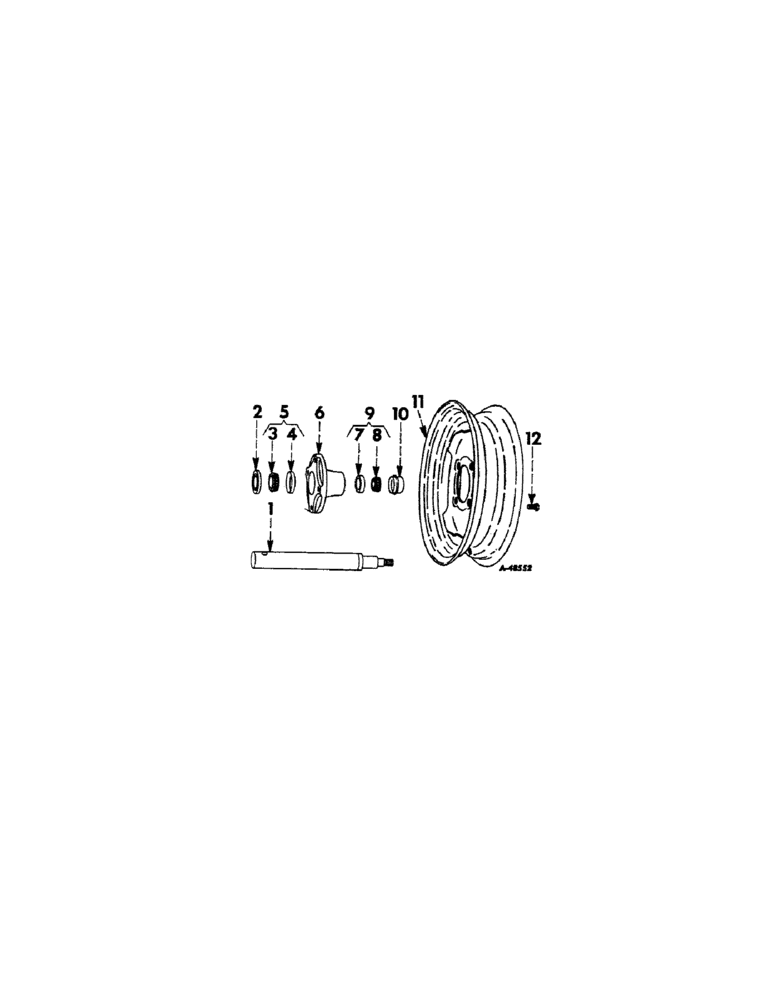

Запчасти Case IH 46 (17[B]) - RIGHT WHEEL

1

662981R1

SPINDLE

wheel, right

1шт.

19291R1

BOLT, mach., hex-hd., cad-pltd., 1/2-13NC x 2-3/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" ID x 1-5/16" OD x .095 ga.

1шт.

2

663004R91

OIL SEAL

OIL SEAL, right wheel bearing

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, inner right wheel bearing

1шт.

4

651817R1

BEARING CUP

CUP, inner right wheel bearing

1шт.

5

651819R91

BEARING ASSY,1.2508" ID x 2.329" OD x 0.625"

wheel, inner right, assembly

1шт.

6

663054R91

HUB

disk wheel, right, w/cups and bolts

1шт.

7

651814R1

BEARING CUP

CUP, outer right wheel bearing

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer right wheel bearing

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING, wheel, outer right, assembly

1шт.

10

651194R1

CAP

hub

1шт.

11

662994R91

WHEEL

disk, right, w/rim, assembly

1шт.

12

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

4шт.
