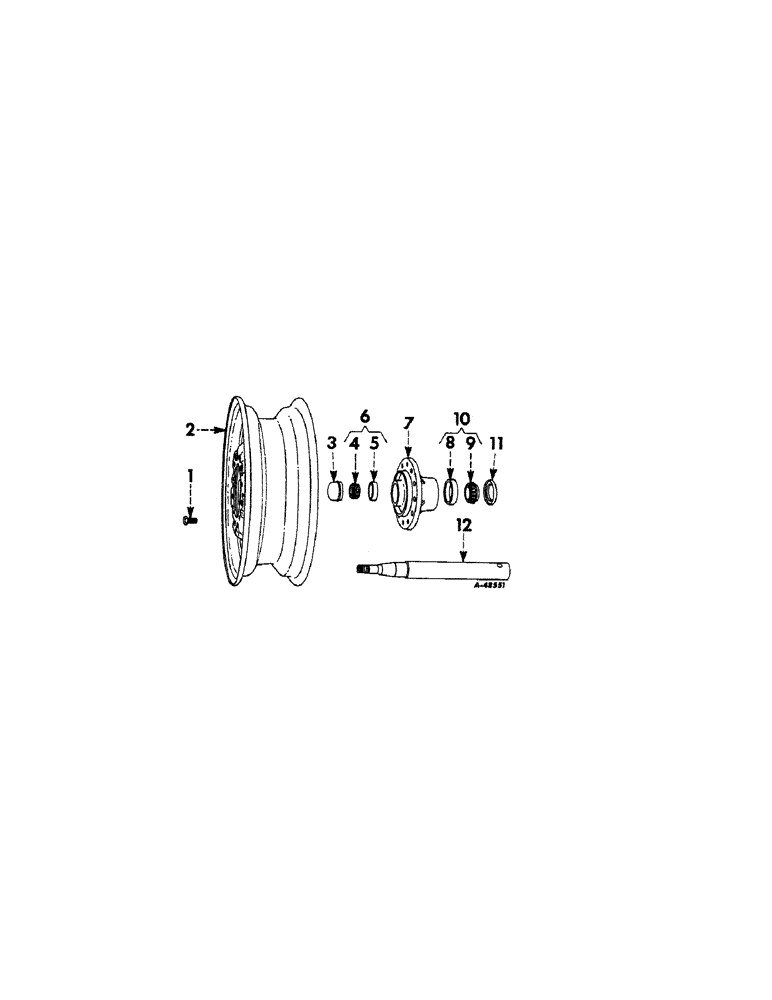

Запчасти Case IH 46 (17[A]) - LEFT WHEEL

1

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

6шт.

2

518823R91

WHEEL

disk, left, w/rim, assembly

1шт.

3

651194R1

CAP

hub

1шт.

4

519467R91

BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"

CONE, outer left wheel bearing

1шт.

5

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

CUP, outer left wheel bearing

1шт.

6

663003R91

BEARING

wheel, outer left, assembly

1шт.

7

662993R11

HUB

disk wheel, left, w/cups and bolts

1шт.

8

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, inner left wheel bearing

1шт.

9

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

CONE, inner left wheel bearing

1шт.

10

453278R91

BEARING

wheel, inner left, assembly

1шт.

11

661876R91

OIL SEAL

left wheel bearing

1шт.

12

662980R1

SPINDLE

wheel, left

1шт.

180888

SCREW, cap, hex-hd., cad-pltd., 1/2-13NC x 2-3/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, slotted, 3/4-16NF

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

615168R1

WASHER

plain, 25/32" ID x 1-1/2" OD x no. 11 ga.

1шт.
