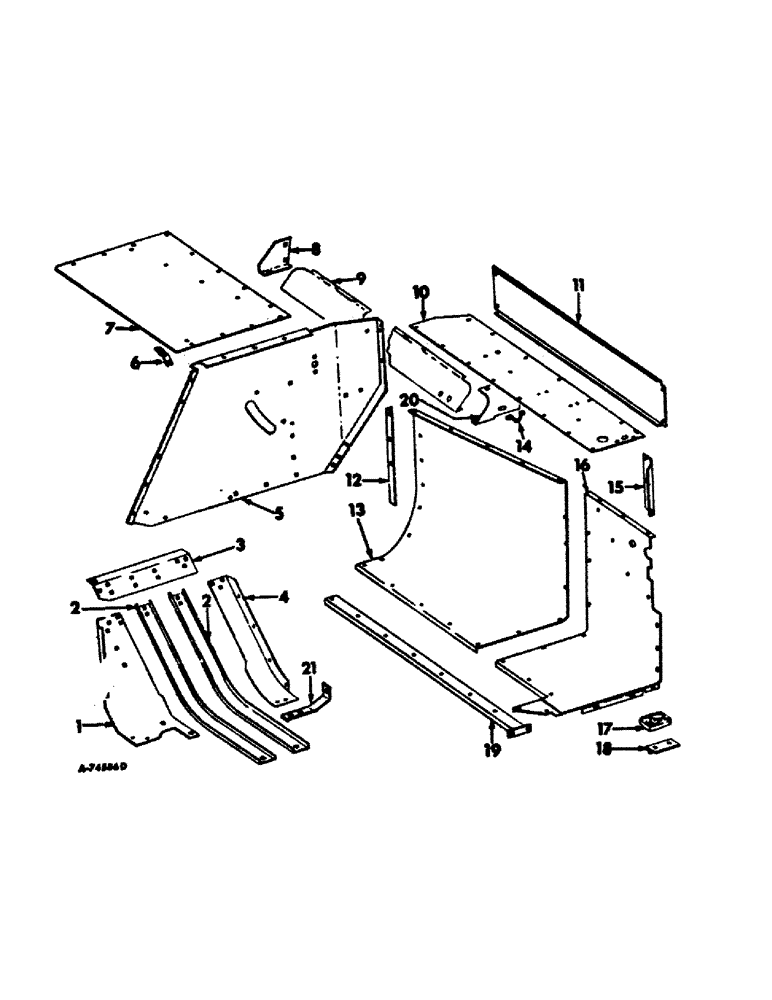

Запчасти Case IH 445 (A-06) - CROSS CONVEYOR AND FEED OPENING, 435 AND 445 BALERS

1

667743R1

SHEET

right front top

1шт.

670454R1

NUT

5/16-18 speed grip

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

204142C1

CHANNEL

assy packer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

667745R1

SHEET

right center top

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd C-Z hex lock

3шт.

4

667746R1

SHEET

right rear top

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

4шт.

5

674212R1

SHEET

cross conveyor side

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

667742R1

STRAP

feed opening tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

7

1281044C1

COVER

W/PRODUCT GRAPHIC, cross conveyor, replaces 674215R1

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

8шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

8шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

ZA017196

PRODUCT GRAPHIC, warning

1шт.

8

674124R1

SUPPORT

front sheet

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

440981C1

NUT

1/4-20 speed grip

1шт.

9

674123R1

SUPPORT

SHEET, cross conveyor front

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

6шт.

672803R1

NUT

1/4-20 speed grip

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .51 C-Z

6шт.

160578

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"

1/4 x 1-1/2 znp t/hds mach

1шт.

10

674221R1

TOP

twine can

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach, (8) 435, (7) 445

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4 x 5/8 znd hex-hd cap

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock, (8) 435, (7) 445

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

674226R1

PANEL

rear cross sheet, 435 & 445 twine

1шт.

11

674228R1

PANEL

rear cross sheet, 445 wire

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach, (8) 435, (9) 445

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock, (8) 435, (9) for 445

1шт.

12

662151R1

BRACE

cross conveyor platform

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

204193C1

PLATFORM

cross conveyor

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

5шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

10шт.

14

655108R2

GUIDE

twine, 3 for twine balers

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

6шт.

15

674224R1

SHEET

rear filler, 435 & 445 twine

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach, (2) 435, (1) 445

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock, (2) 435, (1) 445

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

1шт.

15

674230R1

SUPPORT

rear cross deck sheet, 445 wire

1шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znd hex-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

1шт.

16

204191C1

SHEET

ASSY, feed opening bottom

1шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16 x 3/4 znp p/hds mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

3шт.

17

672150R1

DEFLECTOR

feed opening

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21872R1

WASHER

13/32 x 5/8 x 16 ga

2шт.

18

674231R1

ANGLE

GUIDE, feed opening knife

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

19

204187C1

CHANNEL ASSY, cross conveyor support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

674121R1

SUPPORT

face plate corner

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

366861C1

LOCK WASHER

5/16 znd ribbed

1шт.

21

200884C2

STRAP

feed opening support

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga C-Z, for wire balers

1шт.
