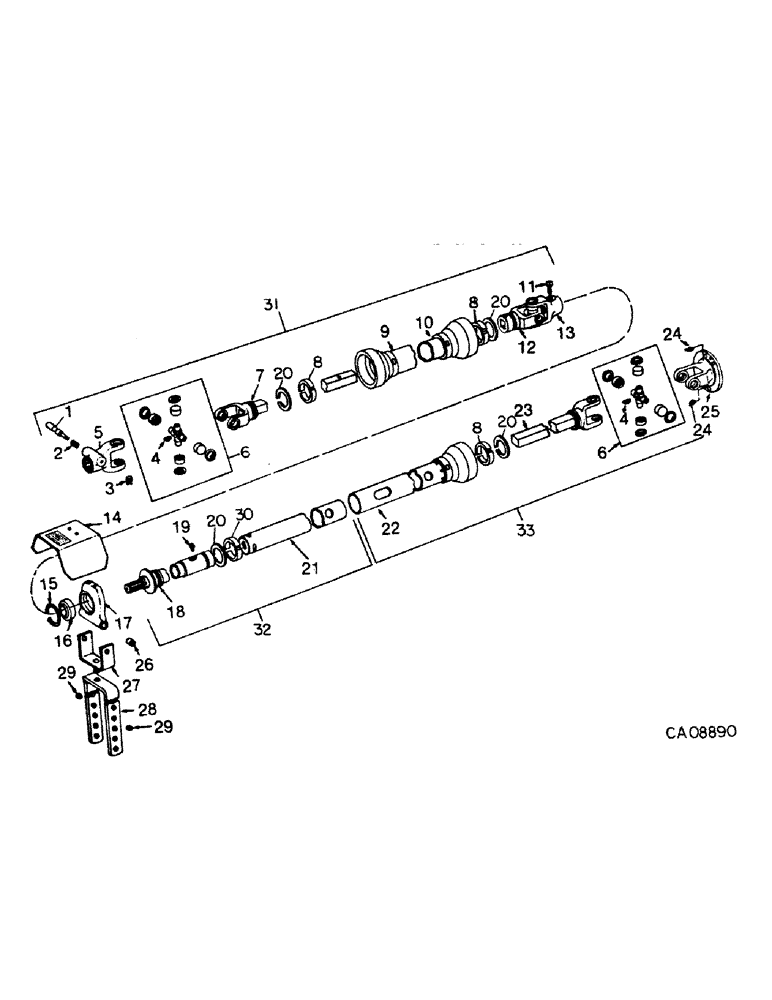

Запчасти Case IH 445 (A-53) - POWER TAKE-OFF DRIVE SHAFTS, THREE KNUCKLE, WEASLER, 445, 428 AND 435 HEAVY DUTY

1

455346R21

PIN

ASSY, lock, consists of

1шт.

2

455347R1

VALVE SPRING

SPRING

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X

1шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 65D lub

3шт.

5

660484R21

FORK

YOKE ASSY, w/Q.A. pin, includes ref no. 1

1шт.

6

660116R91

NUT

KIT, cross repair

3шт.

495962R1

RING

snap

12шт.

7

ZA550487

YOKE

W/SHAFT, square

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

8

96348C1

NYLON BEARING

shield (replaces ZA017167 )

2шт.

9

ZA550483

SHIELD

W/PRODUCT GRAPHIC, outer

1шт.

ZA017150

PRODUCT GRAPHIC, warning

1шт.

10

ZA550484

SHIELD

W/PRODUCT GRAPHIC, inner

1шт.

11

210605C1

SET SCREW

1/2-20 x 1 socket-hd set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-NF pln jam type 5

1шт.

12

96352C1

YOKE

pinned (replaces ZA017247 )

1шт.

13

660489R1

YOKE

splined

1шт.

14

674737R12

SHIELD

W/PRODUCT GRAPHICS, pto brg box

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

ZA740950

DECAL

PRODUCT GRAPHIC, warning

1шт.

ZA014839

PRODUCT GRAPHIC, caution

1шт.

15

UA20551

RING

propeller shaft bearing snap

1шт.

16

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING ASSY, propeller shaft front

1шт.

17

662022R1

BOX

bearing (replaces 622022R1 )

1шт.

18

ZA550493

SHAFT

JOINT ASSY, yoke & tube

1шт.

19

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 UNF less ball check lub

1шт.

20

597559R1

RETAINER

RING, bearing retainer (replaces ZA017169 )

4шт.

21

ZA550494

SHIELD

ASSY, inner

1шт.

22

ZA550495

SHIELD

ASSY, outer

1шт.

23

ZA550492

YOKE

W/SHAFT, square

1шт.

24

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45D taper drive thd lub

2шт.

25

674862R2

YOKE

flanged

1шт.

26

674733R1

SPACER

BUSHING, pedestal

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 x 4-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

27

674734R1

BRACKET

PIVOT ASSY, bracket

1шт.

280954

NUT,3/4"-10, G5

1шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 MF two way lock, used on stud w/NF threads

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

28

674729R1

RING

PEDESTAL ASSY, power take-off

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

BOLT, 1/2 x 5-1/4 type 5

1шт.

29

674732R1

SPACER

BUSHING, pedestal

2шт.

30

96353C1

BEARING

shield (replaces ZA017156 )

1шт.

31

ZA550409

JOINT ASSY.

SHAFT ASSY, front

1шт.

32

ZA550490

SHAFT

ASSY, front half

1шт.

33

ZA550491

SHAFT

ASSY, rear half

1шт.
