Запчасти Case IH 445 (A-32) - NEEDLES AND GUIDE, LOCK TWIST BALER, FOR 445 WIRE BALER

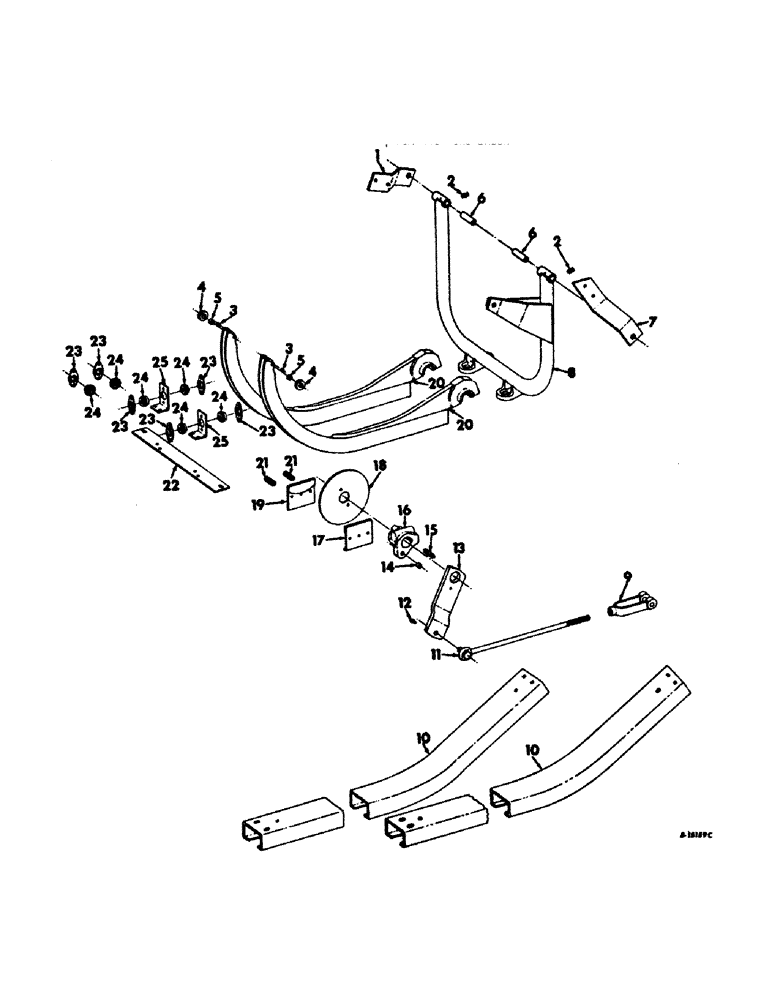

Схема запчастей Case IH 445 - (A-32) - NEEDLES AND GUIDE, LOCK TWIST BALER, FOR 445 WIRE BALER

Артикул

Название

Примечание

Количество

1

674096R1

STRAP

needle pivot supprt RH

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

3

201697C1

ROLLER

needle tip

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

4

667412R1

ROLL

SHEAVE, wire needle

2шт.

5

667415R1

BUSHING

needle sheave

2шт.

102689

1/4 x 13/16 csk-hd solid

2шт.

6

210525C1

BUSHING

tie pipe

2шт.

7

674098R1

STRAP

needle pivot support LH

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

210548C1

FRAME

ASSY, needle tie pipe

1шт.

455150R1

WASHER

17/32 x 1-1/4 x 1/4

2шт.

137268

KNIFE

3/16 x 2-1/4 C-Z cot.

1шт.

20312R1

SCREW,Short NK, 5/8"-11 x 4 1/4", G2

BOLT, 5/8-11 hex lock

2шт.

208778C1

FLANGE NUT

5/8-11 hex lock

1шт.

478820R1

WASHER

21/32 x 1-3/4 x 1/4

1шт.

9

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8-18 x 4-15/16 hv rod end

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, , Rod end 5/8" x 1.844"

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

674197R1

GUARD

auxiliary needle

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq nk crg

4шт.

11

201698C91

PITMAN

assy

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-18 znd hex.

1шт.

22258R1

WASHER

.656 x 1.000 x .027

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

12

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub.

1шт.

13

201704C1

CRANK

needle drive

1шт.

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

5/16-24 x 2 znd hex-hd cap shear bolt

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

needle shear bolt

1шт.

15

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

1шт.

443057

GROOVED PIN,3/8" x 2 1/4", Type F

Pin, Grooved, 3/8" x 2 1/4", Type F

1шт.

16

674323R1

HUB

needle drive crank

1шт.

17

754777R91

SHOE

ASSY, brake LH

1шт.

18

674324R1

DISC

PLATE, brake pressure

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

754778R91

SHOE

ASSY, brake RH

1шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

SCREW, 1/4-20 x 2 znd hex-hd cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

674319R12

NEEDLE

ASSY, wire

2шт.

21

U13033

SPRING

brake

1шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

2шт.

22

674704R1

SUPPORT

wire guide

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

23

352133R1

PLATE

wire guide mounting

6шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 znd slt-pan-hd mach.

12шт.

120361

NUT,Hex Mach Screw, #10 - 24

12шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

12шт.

24

670617R2

GUIDE

wire

6шт.

25

674703R1

BRACKET

wire guide

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 74
