Запчасти Case IH 445 (A-20) - PLUNGER, 435 AND 445 BALERS

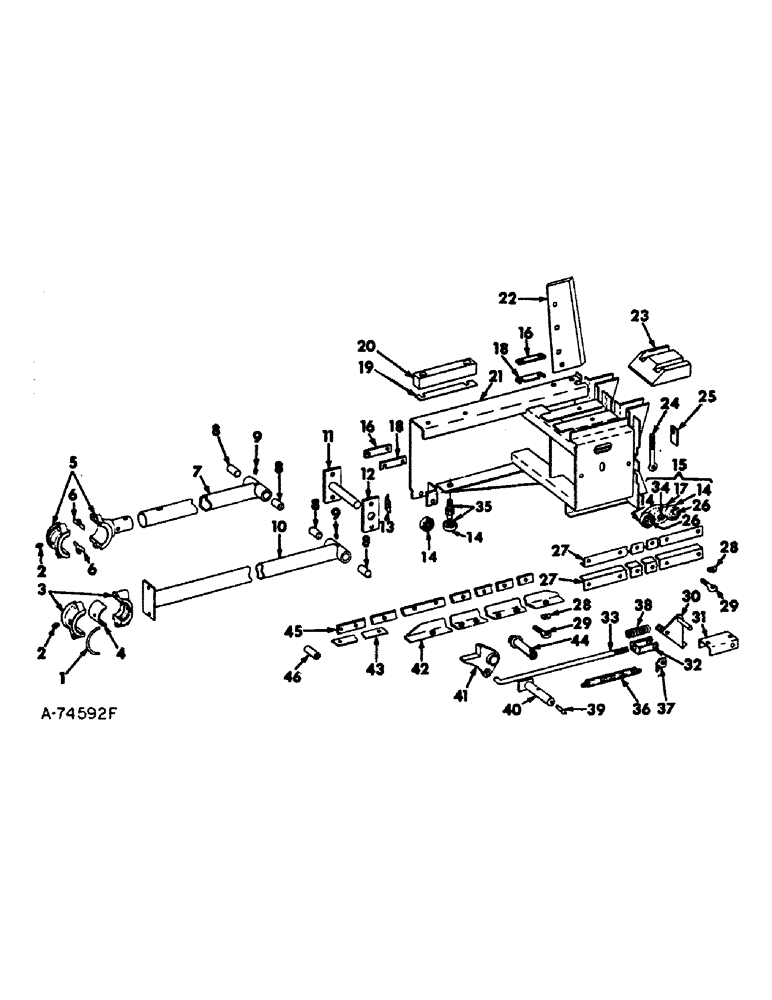

Схема запчастей Case IH 445 - (A-20) - PLUNGER, 435 AND 445 BALERS

Артикул

Название

Примечание

Количество

1

665728R1

SEAL

SEAL, pitman brg front oil, 4 for wire balers

1шт.

24814R1

SCREW, 7/16-14 x 3-3/4 znd hex-hd dld cap

2шт.

425-127

SLOTTED NUT,7/16"-14, G5

7/16-14 C-Z slt hex.

2шт.

454490

PIN

3/32 x 1-1/2 znp cot.

2шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

3

665716R11

BEARING ASSY

ASSY, pitman front, for wire balers

1шт.

4

664975R1

BEARING LINER

INSERT, pitman brg front, 2 for wire baler

1шт.

5

495177R21

BEARING ASSY,4.5" OD x 2.97"

BEARING ASSY, pitman front, 435 & 445 twine balers

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

3шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex lock

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

the 3rd bolt and nut attach #2 to #4 - see hole on top of #4

1шт.

6

495278R2

SHIM

pitman brg, (or as required) 435 & 445 twine baler

16шт.

7

667943R91

PITMAN

ASSY, 435 & 445 twine balers

1шт.

8

664976R1

BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L

BUSHING, pitman rear, order ref no. 7 for twine balers, order ref no. 10 for wire baler

2шт.

9

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

10

665714R91

TUBE,35.75" Length

PITMAN ASSY, 445 wire baler

1шт.

11

668358R91

SUPPORT

BLOCK ASSY, plunger pitman

1шт.

12

668359R1

BLOCK

pitman

1шт.

673707R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 pln crg type 5

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

668362R1

STRIP

SCRAPER, plunger front

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga C-Z

2шт.

14

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

plunger roller

6шт.

NLS

NO LONGER SERVICED

SCREW, 5-11 x 1-1/2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga C-Z

1шт.

15

674052R11

ROLLER

MOUNT ASSY, roller LH

1шт.

16

668367R1

PAD

wearing lower

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

Not serviced separately, order 674052R11

1шт.

18

668368R1

SHIM

plunger lower (or as required)

4шт.

19

668365R1

SHIM,45.72mm OD x 0.76mm Thk

plunger upper right (or as required)

3шт.

20

668364R2

BLOCK

plunger upper right

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

453838

NUT

5/16-18 C-Z tee type G

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

674043R2

PLUNGER

ASSY

1шт.

22

667684R2

KNIFE

hay

1шт.

21538R1

CARRIAGE BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 C-Z no. 3 plow repair hd

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

23

668375R1

BLOCK

plunger upper center

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

667922R1

BOLT,Eye, 5/8" - 11 x 4.69"

plunger eye

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

25

668363R1

SCRAPER

plunger rear

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

1шт.

26

674053R1

STUD

roller mount LH

2шт.

27

674057R1

ANGLE

plunger guide

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 C-Z hex-hd cap, 11 for twine balers, 9 for wire baler

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 12 for twine balers, 10 for wire balers 3/8"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap, 2 for wire baler

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , 2 for wire baler Int Tooth, 3/8"

1шт.

477242R1

WASHER

13/32 x 1 x 22 ga C-Z

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

28

(Not used this application)

1шт.

29

674056R1

BOLT,Eye, 1/2" - 13 x 2.70"

plunger guide eye

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znp hex. jam

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z (or as required)

1шт.

30

201581C1

STOP

ARM ASSY, plunger stop, replaces 674066R1 and 674069R1

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

31

674071R1

BRACKET

plunger stop mounting

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

32

674072R1

CLEVIS

plunger stop link

1шт.

33

674064R1

LINKAGE

LINK, plunger stop

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21740R1

WASHER

17/32 x 1-1/2 x 16 ga C-Z

2шт.

34

674054R1

BUSHING

plunger roller mount

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

178627

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, 5/8 C-Z int-ext tooth lock

1шт.

23836R1

WASHER

21/32 x 1-3/8 x 11 ga C-Z

1шт.

35

674058R21

BEARING ASSY

BEARING ASSY, plunger roller

2шт.

36

655919R1

SPRING

plunger stop

1шт.

37

674065R1

ANCHOR

plunger stop spring

1шт.

38

664301R1

SPRING

plunger stop relief

1шт.

39

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

40

674061R1

PIVOT

ASSY, plunger stop

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

41

674060R1

STOP

plunger

1шт.

42

203032C1

ANGLE

plunger guide thrust, replaces 674055R1

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8-16 x 1-1/4 znd no. 3 plow

4шт.

19023R1

CARRIAGE BOLT,#3, 3/8" - 16 x 2", Gr 2

BOLT, 3/8-16 x 2 znd no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z

4шт.

43

674059R2

LARGE PLATE

EXTENSION, bottom plate

1шт.

44

674073R1

SLEEVE

ASSY, plunger stop spring

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 znp std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

45

203015C1

PLATE

STRIP, plunger thrust

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

22859R1

WASHER

11/32 x 3/4 x 7 ga C-Z

9шт.

46

674582R1

NIPPLE, LUBE

NIPPLE, plunger stop

1шт.

Выбрано товаров: 118
