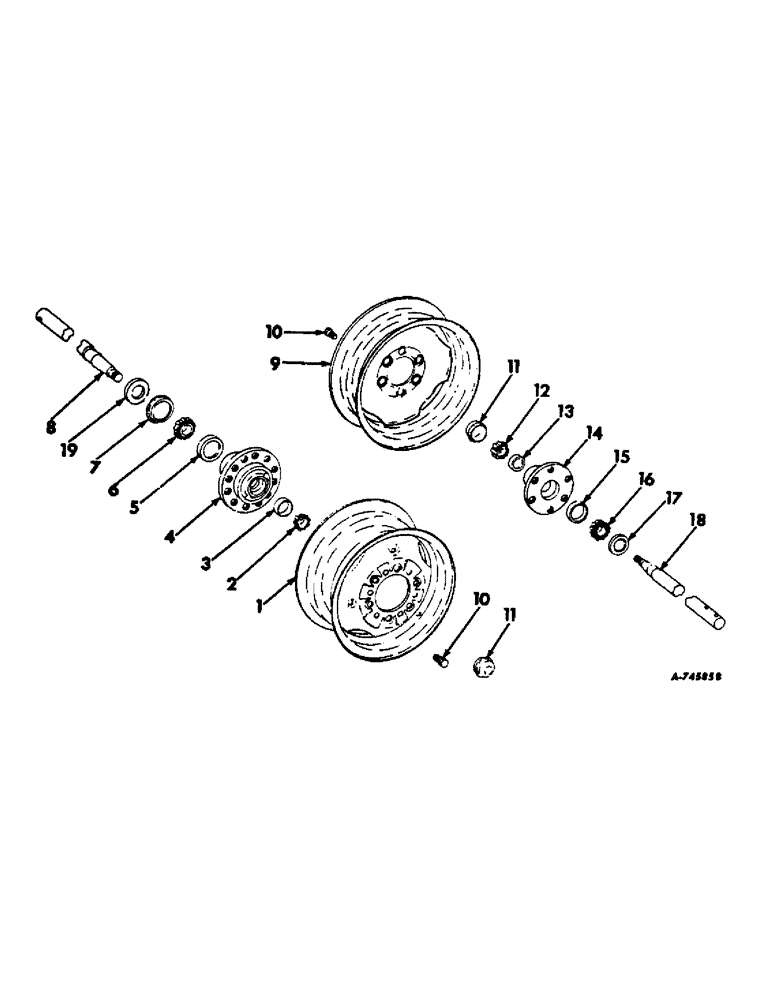

Запчасти Case IH 440 (F-08) - WHEELS AND AXLES, FLOTATION TIRES

1

203009C1

RIM

ASSY, flotation tire LH, for tire 11.0L x 15 6 ply code 11

1шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, right wheel inner cone

1шт.

3

651817R1

BEARING CUP

BEARING, right wheel inner cup

1шт.

4

465496R11

HUB

W/BEARING CUPS, left wheel

1шт.

5

ST991

BEARING CUP

BEARING ASSY, left wheel inner cup, for servicing 54628H, 659839R1, 565212R1

1шт.

5

663558R1

BEARING CUP

BEARING, left wheel inner cup

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, left wheel inner cone

1шт.

7

654674R91

OIL SEAL

left wheel grease

1шт.

8

674113R1

SPINDLE

wheel LH

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

9

203010C1

WHEEL

RIM ASSY, flotation tire RH, for 26 x 12.00-12, 4 ply terra rib

1шт.

10

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

11

651194R1

CAP

hub

1шт.

11

663906R1

CAP

left wheel hub

1шт.

12

519467R91

BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"

ASSY, right wheel outer cone

1шт.

13

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

BEARING, right wheel outer cup

1шт.

14

662993R11

HUB

W/BEARING CUPS AND BOLTS, wheel RH

1шт.

15

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, right wheel inner cup

1шт.

16

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

ASSY, right wheel inner cone

1шт.

17

661876R91

OIL SEAL

SEAL, right wheel brg oil

1шт.

18

662980R2

SPINDLE

wheel RH

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 znd slt-hex

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

19

654675R1

RING

left wheel oil seal wear

1шт.
