Запчасти Case IH 440 (F-07) - MAIN FRAME

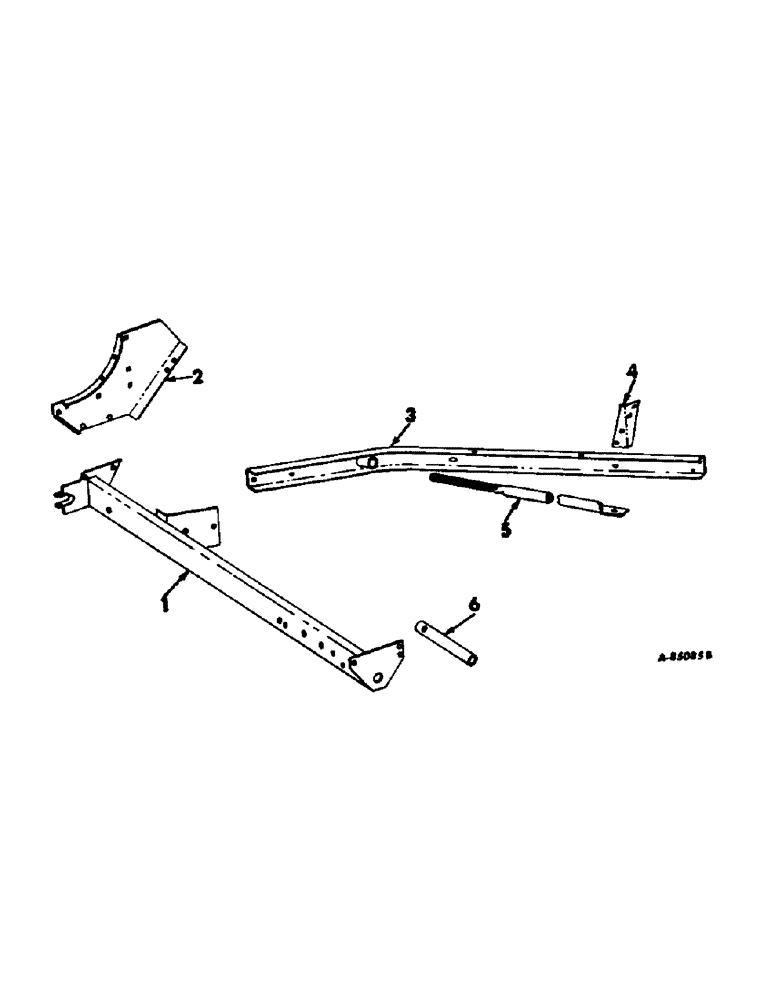

Схема запчастей Case IH 440 - (F-07) - MAIN FRAME

Артикул

Название

Примечание

Количество

1

674267R2

CHANNEL

ASSY, axle, when 674267R2 is furnished for servicing R1, 204706C1 RH spindle tubing will be required

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

662148R1

GUSSET

axle RH, service for 674520R1

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

674278R1

BRACE

ASSY, diagonal

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

4

674281R1

BRACKET

diagonal brace

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

674282R2

SUPPORT

ASSY, bale chamber

1шт.

280954

NUT,3/4"-10, G5

2шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 znd sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

204706C1

TUBING SPINDLE RH, required when 674267R2 is furnished for servicing 674267R1

1шт.

Выбрано товаров: 27
