Запчасти Case IH 440 (F-06) - BALE CHAMBER

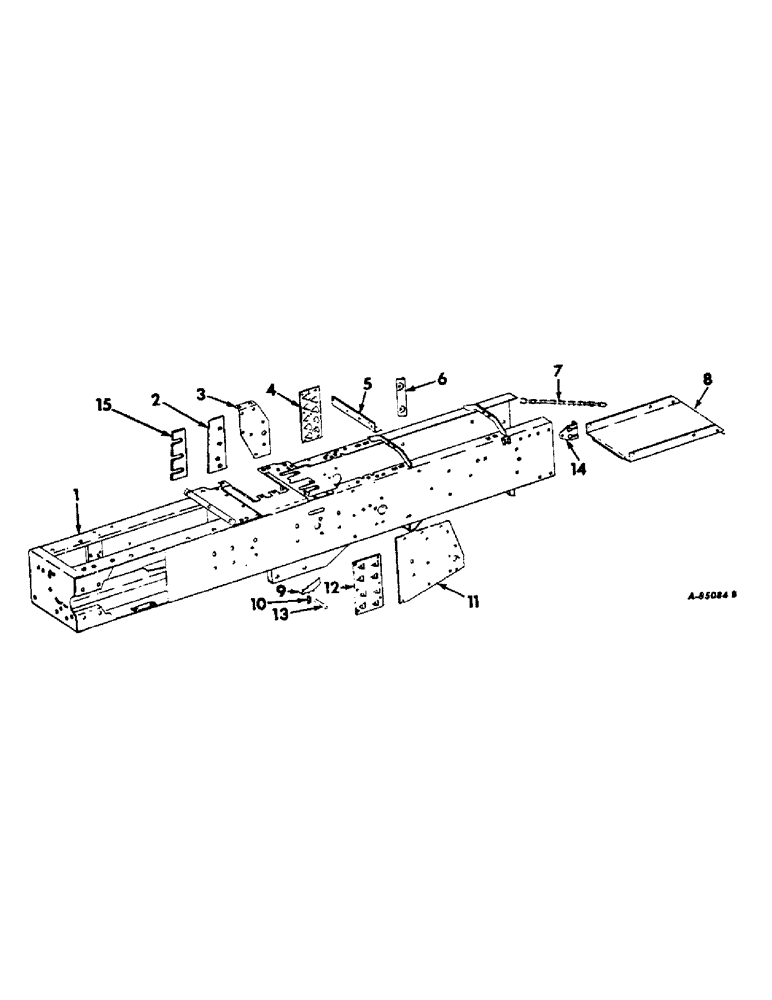

Схема запчастей Case IH 440 - (F-06) - BALE CHAMBER

Артикул

Название

Примечание

Количество

1

674485R3

CHAMBER ASSY, bale

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 znp sq-nk crg type 2

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znp

2шт.

2

667684R2

KNIFE

hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, , Patent Hd 5/8"-11 x 1 1/2", G2, Full Thd

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znp hex

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

667683R21

SUPPORT

twister RH, for wire Baler

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znp sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

662294R3

PLATE

hay retainer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg, 3 for twine Balers, 1 for wire Balers

1шт.

120377

NUT,3/8" - 16, Gr 5

3 for twine Balers; 1 for wire Balers 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 3 for twine balers, 1 for wire balers 3/8"

1шт.

5

662147R4

ANCHOR

bale tension channel, for 440T std and 440T custom Balers

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znp hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

5шт.

6

5179PA

WEDGE

hay retainer

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

204044C1

CHAIN (AG)

CHAIN, bale chamber ext hold-up

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga znd

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

204043C1

EXTENSION

bale chamber

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

2шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

9

662007R2

RETAINER

2шт.

10

668869R1

SPRING

hay retainer

2шт.

11

667681R21

SUPPORT, twister LH, for wire Baler

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znp hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

619856R1

WASHER

13/32 x 1 x 16 ga znp

1шт.

12

671960R2

PLATE

hay retainer left

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znp sq-nk crg, 6 for twine Balers

1шт.

120377

NUT,3/8" - 16, Gr 5

6 for twine Balers 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 6 for twine balers 3/8"

1шт.

13

667685R1

PIN

hay retainer

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

14

203187C1

HOLDER

chain

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex lock

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga znd

2шт.

15

203016C1

SHIM

stationary knife .020, (or as required)

2шт.

15

203017C1

SHIM

stationary knife .010, (or as required), hdw used in upper bale chamber tension channel anchor

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 znd sq nk crg, twine Balers

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 znd sq nk crg type 5, 440 custom wire Baler

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Hdw used in lower bale chamber tension channel anchor 3/8"

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znp sq nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 66
