Запчасти Case IH 440 (F-58) - BALE TURNER ATTACHMENT, WHEN ORDERED

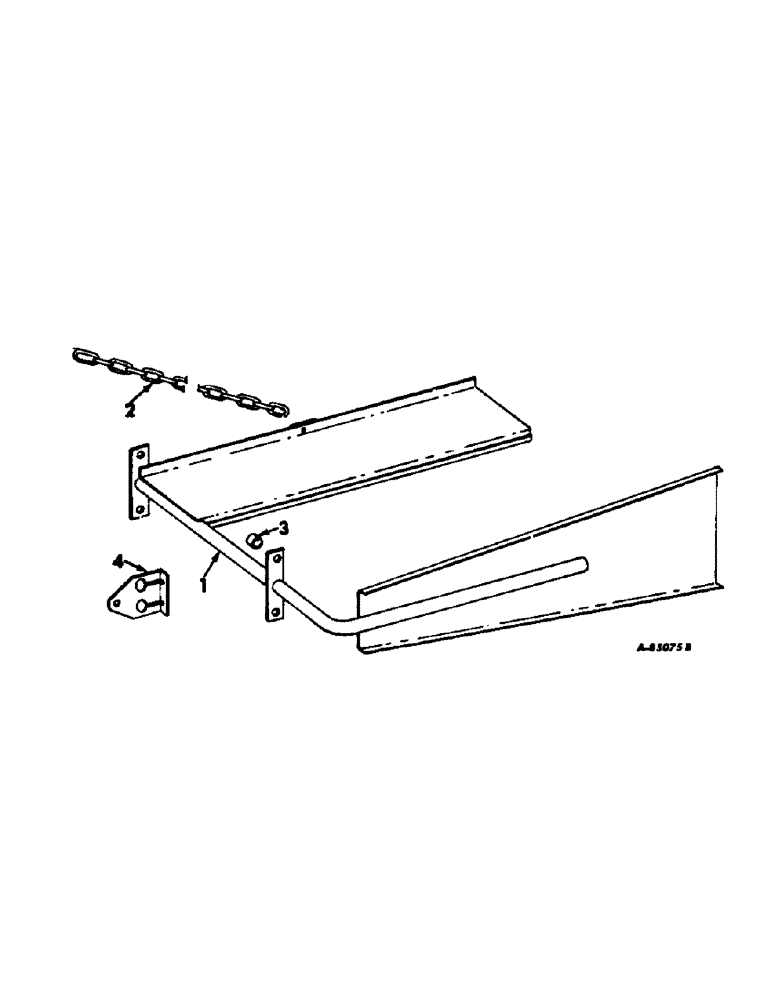

Схема запчастей Case IH 440 - (F-58) - BALE TURNER ATTACHMENT, WHEN ORDERED

Артикул

Название

Примечание

Количество

1

674032R1

VALVE BLOCK

TURNER ASSY, bale

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

2шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga znp

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

2

495526R1

CHAIN (AG)

CHAIN, bale chamber ext hold up

1шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 C-Z sq-nk crg type 2

1шт.

120376

NUT,5/16"-18, G5

2шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

3

604433R1

SPACER,1/2" Pipe x 13/16"

pipe

1шт.

4

203187C1

HOLDER

chain, replaces 754484R2

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

Выбрано товаров: 18
