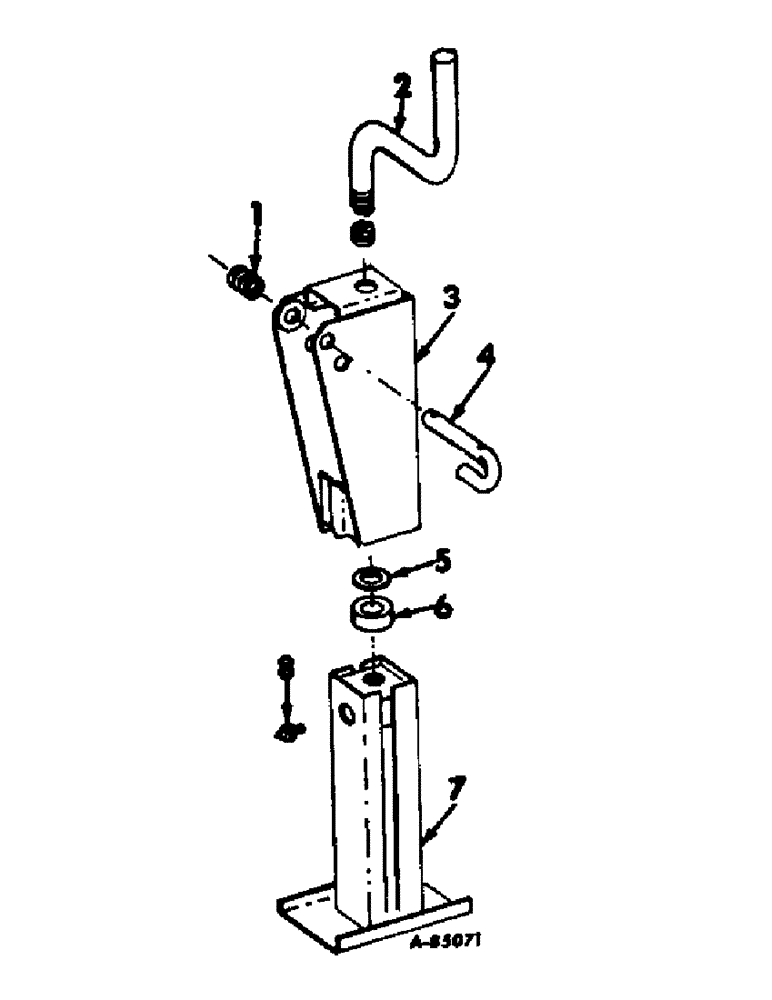

Запчасти Case IH 440 (F-57) - LIFTING JACK

1

269920R2

SPRING

jack

1шт.

2

673921R1

PRESS

HANDLE, jack

1шт.

3

673912R1

FRAME

ASSY, jack

1шт.

4

673924R1

ROD

jack pivot

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

3шт.

5

673923R1

THRUST WASHER

jack handle bearing

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

22234R1

PIN,1/4" x 7/8", Slotted

1шт.

6

673922R1

BUSHING

BEARING, jack handle

1шт.

7

673917R1

SUPPORT

ASSY, jack

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.
