Запчасти Case IH 440 (F-55) - TRAILER HITCH ATTACHMENT, WHEN ORDERED

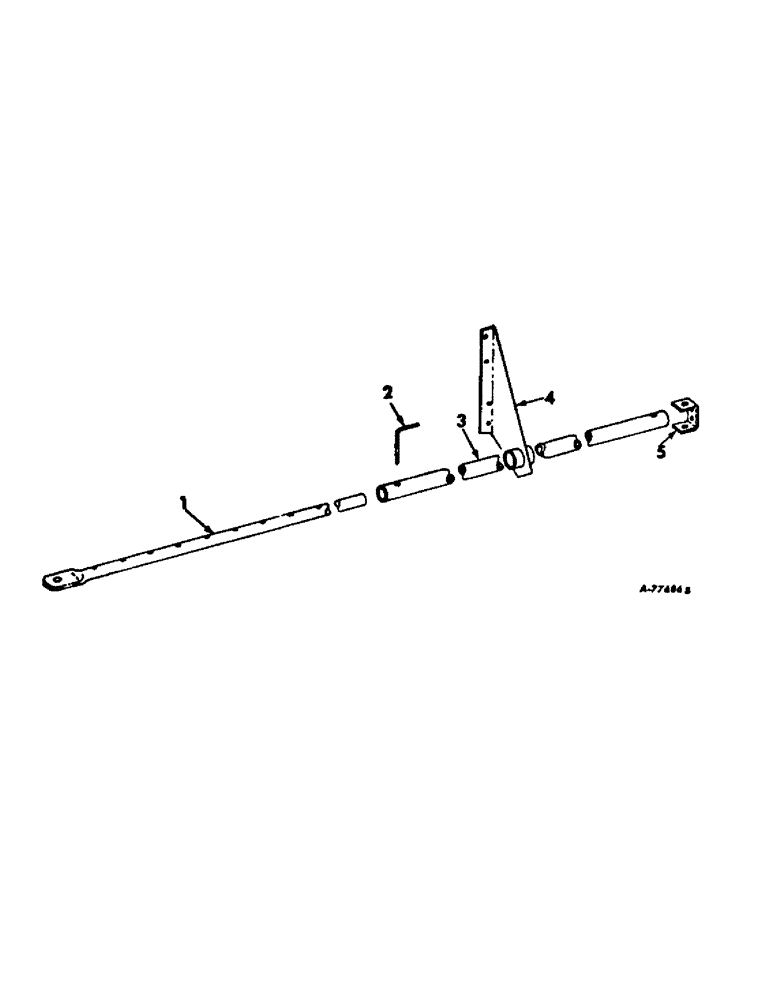

Схема запчастей Case IH 440 - (F-55) - TRAILER HITCH ATTACHMENT, WHEN ORDERED
5
3
4
1
2

Артикул

Название

Примечание

Количество

1

669018R1

BAR

trailer hitch adjusting

1шт.

2

662438R1

PIN

trailer hitch adjusting

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

3

662437R2

PIPE

trailer hitch

1шт.

4

674394R1

TRAILER HITCH

HITCH ASSY, trailer

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cap hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

669015R2

ANCHOR

trailer hitch

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

Выбрано товаров: 19
