Запчасти Case IH 440 (F-04) - HITCH

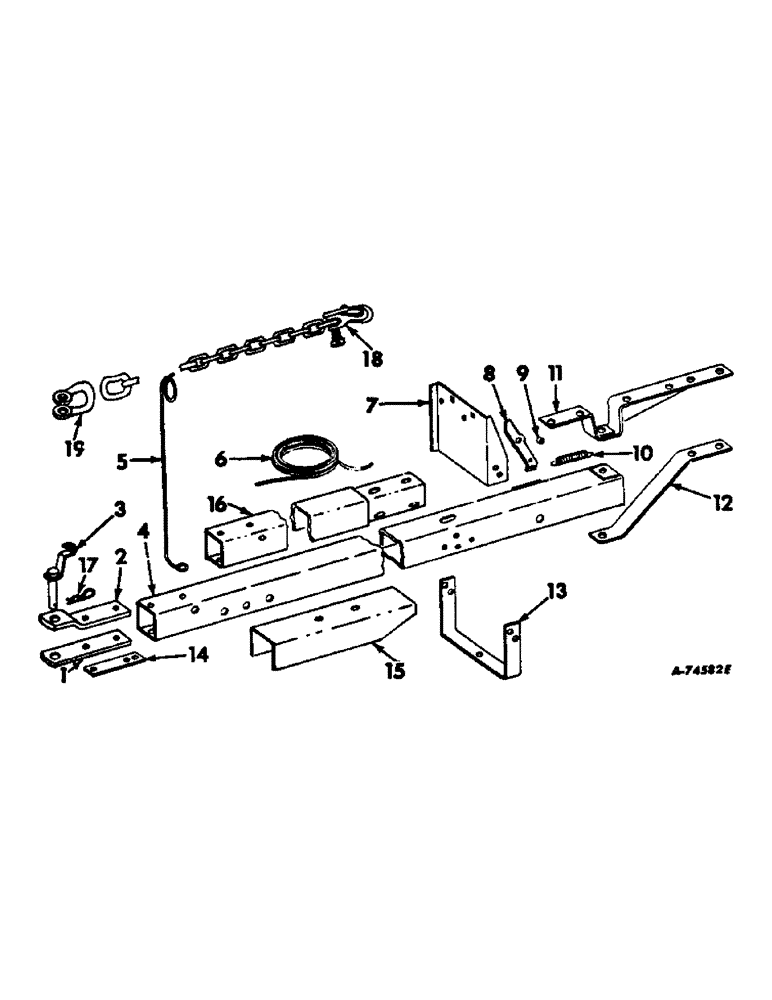

Схема запчастей Case IH 440 - (F-04) - HITCH

Артикул

Название

Примечание

Количество

1

662145R1

STRAP

hitch clevis upper (replaces 662144R1)

1шт.

IS A BENT STRAP

1шт.

2

662144R1

STRAP

hitch clevis lower (replaces 662145R1)

1шт.

IS A STRAIGHT STRAP.

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 PHC hex.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

668406R91

PIN ASSY, hitch, for 440T std Balers

1шт.

4

667608R92

SPARE PART

HITCH ASSY, for 440 custom Baler

1шт.

5

668037R1

SUPPORT

rope, used w/3 knuckle drive shaft

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

6

ROPE, hitch latch, purchase locally 3/8 in. x 12 ft. hemp rope

1шт.

7

674109R2

PLATE

hitch support, for 440 custom Balers

1шт.

7

674108R2

SUPPORT

PLATE, hitch support, for 440T std Baler

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

5шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

5шт.

366866C1

LOCK WASHER,5/8"

5/8"

5шт.

8

667622R2

LEVER

hitch

1шт.

9

667623R1

BUSHING

PIVOT, hitch lever

1шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

10

165

SPRING

hitch lever

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

11

674110R1

PIVOT

ASSY, hitch

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 znd hex-hd cap

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

114607

LOCK, Ext Tooth, 7/16"

2шт.

662560R1

BOLT,Hex, 1" - 14 x 6 1/2"

1-14 x 6-1/2 C-Z hitch anchor

1шт.

70121D

NUT

1-14 hex. slt jam

1шт.

21162R1

WASHER

1-1/32 x 2 x 7 ga C-Z

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

1шт.

12

667628R1

ANGLE

STRAP, anchor hitch pivot

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

425-110

5/8-18 hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

2шт.

13

204109C1

BRACKET

ASSY, hitch support, for 440 custom Balers

1шт.

13

667620R2

BRACKET

hitch support, for 440T std Baler

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

668758R1

SPACER

hitch plate

1шт.

15

673164R1

EXTENSION

SECTION ASSY, hitch extension, used w/3 knuckle drive shaft for 440T std Baler

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 PHC hex.

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

21759R1

WASHER

21/32 x 2

2шт.

16

671095R91

CHANNEL

ASSY, hitch extension, used w/3 knuckle drive shaft for 440T std Baler

1шт.

17

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot., 440T std Baler 3 knuckle drive shaft, 440T std Baler, 440 custom Balers

2шт.

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-3/4 std, 440 custom Balers, 440T std Baler 3 knuckle drive shaft

1шт.

63550C1

PACKAGE, safety chain, 10500 lbs.

1шт.

18

100682C1

CHAIN (AG)

CHAIN, safety, 10500 lbs

1шт.

19

S9173A

CLEVIS

safety chain

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

LOCKNUT, 5/8-11 prevailing torque hex.

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

1шт.

18444R1

NUT,3/4"-10, GB

LOCKNUT, 3/4-10 prevailing torque hex

1шт.

26512R1

WASHER

.781 x 2.00 x .164 znd

1шт.

Выбрано товаров: 68
