Запчасти Case IH 440 (F-51) - POWER TAKE-OFF DRIVE SHAFTS,THREE KNUCKLE

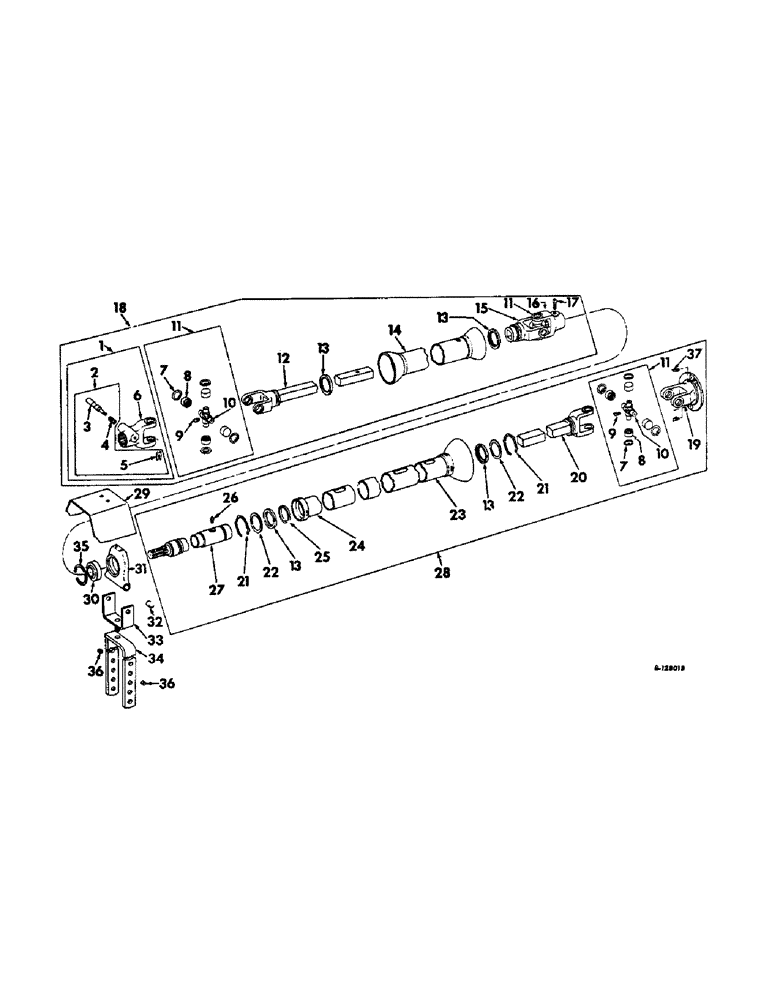

Схема запчастей Case IH 440 - (F-51) - POWER TAKE-OFF DRIVE SHAFTS,THREE KNUCKLE

Артикул

Название

Примечание

Количество

1

660484R21

FORK

YOKE W/LOCK PIN

1шт.

2

455346R21

PIN

lock

1шт.

3

NOT SERVICED SEPARATELY, order 455346R21

1шт.

4

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

5

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock

1шт.

6

NOT SERVICED SEPARATELY, order 660484R21

1шт.

7

495962R1

RING

SNAP RING

12шт.

8

NOT SERVICED SEPARATELY, order 660116R91

1шт.

9

271284

YOKE

1/8-27 65 deg

3шт.

10

NOT SERVICED SEPARATELY, order 660116R91

1шт.

11

660116R91

NUT

KIT, cross repair

3шт.

12

666741R91

YOKE

AND SHAFT

1шт.

22970R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

4шт.

14

666742R91

SHIELD

1шт.

15

666743R1

YOKE

1шт.

16

660489R1

YOKE

splined

1шт.

17

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

18

666731R91

GASKET

SHAFT, front half

1шт.

19

674862R2

YOKE

flanged

1шт.

20

666744R91

YOKE

AND SHAFT

1шт.

21

613436R1

CLAMP

SNAP RING

2шт.

22

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

23

666745R91

SHIELD, outer

1шт.

24

666746R91

RETAINER

SHIELD, inner

1шт.

25

613439R1

BRACKET

BEARING, inner shield

1шт.

26

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 str lub

1шт.

27

666747R91

TUBE ASSY.,2.125" OD, 24.625" Length

TUBE AND SLEEVE

1шт.

28

674861R92

SHAFT, rear half

1шт.

29

674737R11

SHIELD

W/DECAL, power take-off brg box

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

613174R91

BALL BEARING,35 mm ID x 72 mm OD x 25 mm

ASSY, propellar shaft front

1шт.

31

662022R1

BOX

power take-off bearing center

1шт.

32

674733R1

SPACER

BUSHING, power take-off pedestal

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

SCREW, 1/2-13 x 4-3/4 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

33

674734R1

BRACKET

PIVOT ASSY, bracket

1шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 two way lock

1шт.

20825R1

WASHER

25/32 x 2 x 11 ga C-Z

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

34

674729R1

RING

PEDESTAL ASSY, power take-off

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

1шт.

35

UA20551

RING

propellar shaft bearing snap

1шт.

36

674732R1

SPACER

BUSHING, power take-off pedestal

2шт.

37

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap lub

2шт.

Выбрано товаров: 50
