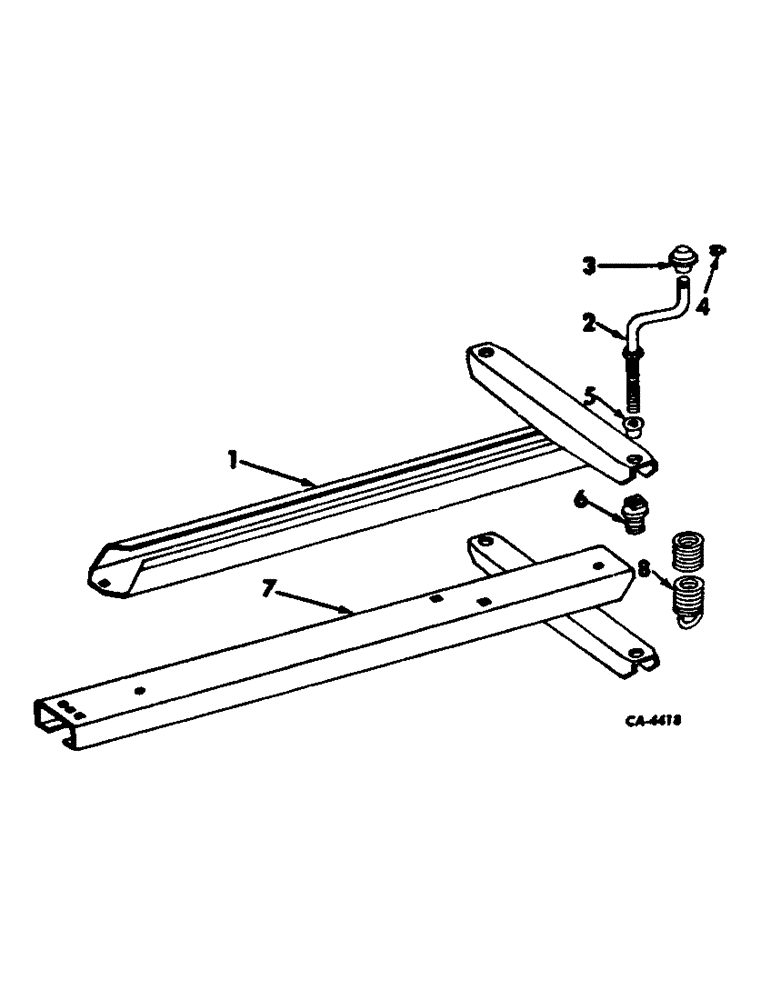

Запчасти Case IH 440 (F-44) - MANUAL BALE TENSION DEVICE

1

674373R1

CHANNEL

ASSY, upper tension

1шт.

2

200673C1

CRANK

SCREW ASSY, tension adjusting

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

3

201397C1

KNOB

ASSY, bale tension

2шт.

4

321935C1

SNAP RING,#62, Ext

Ring, Snap, , bale tension knob #62, Ext

2шт.

5

656934R1

BUSHING

PILOT, tension adj screw

2шт.

6

662028R1

PLUG

spring

2шт.

7

201696C1

CHANNEL

ASSY, lower tension

1шт.

8

203186C1

SPRING

tension channel

2шт.
