Запчасти Case IH 440 (F-42) - BALE LENGTH CONTROL

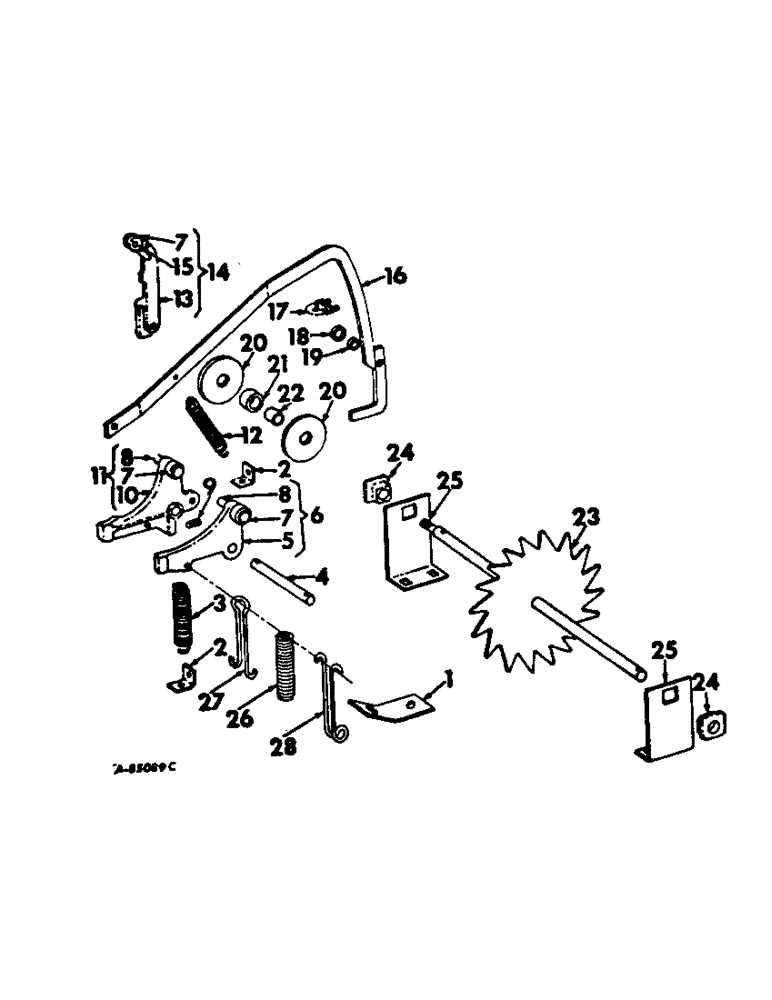

Схема запчастей Case IH 440 - (F-42) - BALE LENGTH CONTROL

Артикул

Название

Примечание

Количество

1

201692C1

ANCHOR

spring trip, 440 custom wire baler

1шт.

2

668082R1

ANCHOR

spring trip, 2 for twine balers, 1 for wire balers

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

101330H

SPRING

trip, for twine balers

1шт.

4

674190R1

STUD

trip arm, for twine balers

1шт.

4

664778R1

PIN

STUD, trip arm, for wire balers

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z (as required)

3шт.

5

NOT SERVICED SEPARATELY, order 201690C91

1шт.

6

201690C91

ARM

ASSY, trip, for wire baler

1шт.

7

662019R1

ROLLER,28.57mm OD x 12.7mm L

trip arm, 2 for twine balers, 1 for wire balers

1шт.

8

662020R1

STUD

trip arm roller

1шт.

21996R1

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

477242R1

WASHER

13/32 x 1 x 22 ga C-Z

1шт.

9

131DS

SPRING

lockout latch, for twine baler

1шт.

23301R1

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, 5/16" x 1 1/4", Slotted

1шт.

10

NOT SERVICED SEPARATELY, order 674417R11

1шт.

11

674417R11

ARM

ASSY, trip, for twine balers

1шт.

12

204009C1

SPRING

trip rod, replaces 6646, when 6646 or 6646-1 is ordered furnish 204009C1

1шт.

13

NOT SERVICED SEPARATELY, order 204141C91

1шт.

14

204141C91

LATCH

ASSY, lockout, for twine balers

1шт.

15

674193R1

LARGE PIN

STUD, trip lockout roller

1шт.

16

674187R1

ROD

ASSY, trip, for twine balers

1шт.

16

674188R1

ROD

ASSY, trip, for wire balers

1шт.

17

667502R91

SUPPORT

CLAMP ASSY, trip rod

1шт.

18

674021R1

ROLLER,22.23mm OD x 9.65mm L

trip rod

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

1шт.

19

674020R1

BUSHING,6.55mm ID x 9.53mm OD x 10.67mm L

trip rod

1шт.

20

667782R1

SHEAVE

trip rod

2шт.

21

3100851R1

ROLLER,35.05mm OD x 13.49mm L

trip rod

1шт.

22

3100852R1

SPACER,16.94mm ID x 22.23mm OD x 12.7mm L

trip rod roller

1шт.

23

204616C1

DRIVE SPROCKET

WHEEL ASSY, meter, replaces 674014R1

1шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z (as required)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

24

668999R1

BUSHING

meter wheel

2шт.

25

674013R1

BRACKET

meter wheel shaft brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

26

665025R1

SPRING

BODY, spring trip, 440 custom wire baler

1шт.

27

665026R1

HOOK

LOOP, spring trip, 440 custom wire baler

1шт.

28

665027R1

HOOK

spring trip, 440 custom wire baler

1шт.

Выбрано товаров: 51
