Запчасти Case IH 440 (F-39) - LOCK TWIST TWISTER

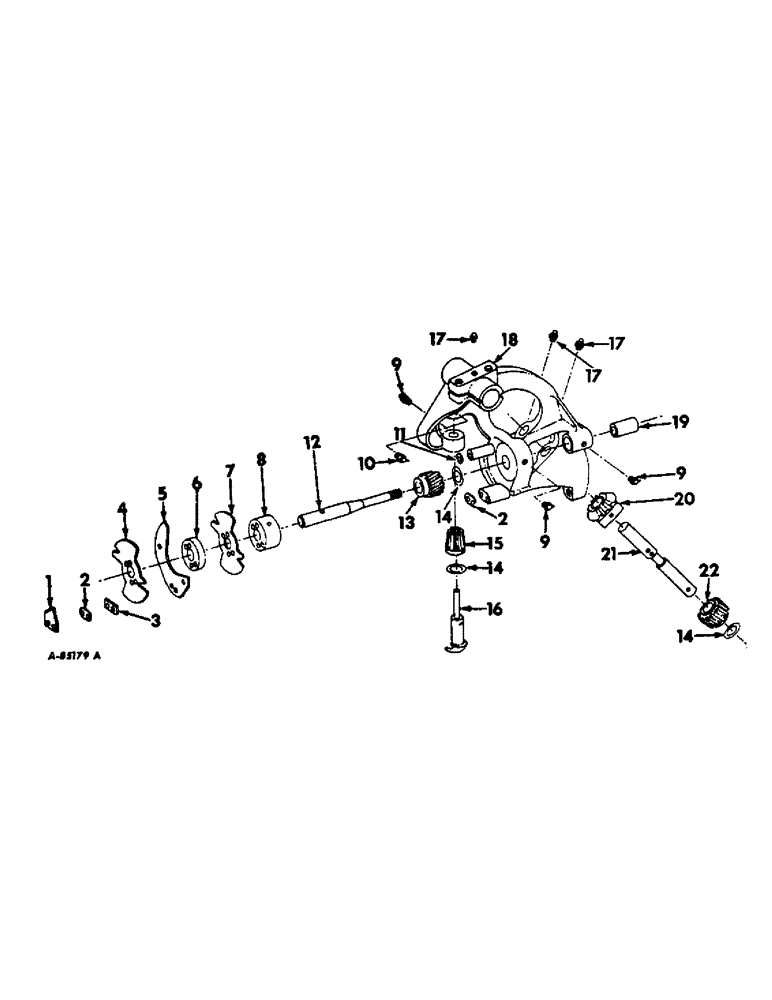

Схема запчастей Case IH 440 - (F-39) - LOCK TWIST TWISTER

Артикул

Название

Примечание

Количество

201676C91

TWISTER

ASSY

2шт.

1

657188R3

KNIFE

wire

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

657164R1

SHIM

wire knife and keeper blade .010

8шт.

2

203188C1

SHIM

wire .003 (as required)

1шт.

2

203189C1

SHIM

wire .007 (as required)

1шт.

3

657128R1

SPACER

wire knife

1шт.

4

657126R2

HOLDER

DISC, wire holder lower

1шт.

133846

SCREW,Sl Flat Hd, 5/16" - 18 x 1 1/2"

4шт.

5

657127R3

BLADE

wire holder keeper

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

657124R2

SPACER

wire holder disc

1шт.

7

201679C1

DISC

wire holder upper

1шт.

8

656893R1

HUB

wire holder disk

1шт.

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

3шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg angle self-tap, lub

1шт.

11

657163R1

SHIM

keeper blade .010

3шт.

12

656948R1

SHAFT

wire holder

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

120371

NUT,1/2"-20, G5

1шт.

124934

HOSE

1/2-20 znd hex. jam

1шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z (as required)

2шт.

13

656947R1

BLOCK DRIVER

PINION, wire clamp and cutter helical driver

1шт.

14

658967R1

SHIM

disk pinion adjusting (as required)

2шт.

15

201680C1

GEAR

PINION, twister hook

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

16

201681C91

HOOK

ASSY, wire twister

1шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z (as required)

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

21758R1

WASHER

25/32 x 1-1/4 x 14 ga C-Z (as required)

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z (as required)

1шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

3шт.

18

201676C91

TWISTER

FRAME W/CAP BOLTS, twister (replaces 202105C91)

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

657001R1

BUSHING

wire holder shaft

1шт.

20

656912R2

DISC

PINION, disk

1шт.

22981R1

ROLL PIN,1/4" x 2 1/4", Slotted

Pin, 1/4" x 2 1/4", Slotted

1шт.

22920R1

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

201678C1

SHAFT

disk pinion

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z (as required)

4шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z (as required)

2шт.

21758R1

WASHER

28/32 x 1-1/4 x 14 ga C-Z (as required)

4шт.

22

656946R1

PINION

wire clamp and cutter helical drive

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

23277R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

Выбрано товаров: 52
