Запчасти Case IH 440 (F-33) - KNOTTER, ALL TWINE

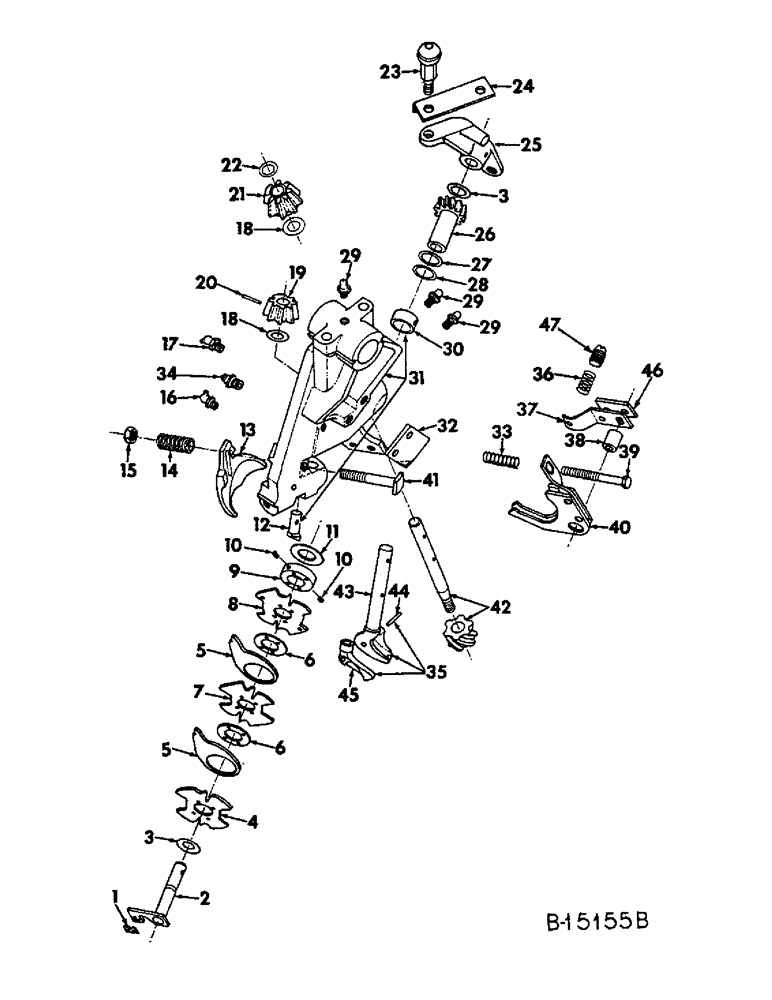

Схема запчастей Case IH 440 - (F-33) - KNOTTER, ALL TWINE

Артикул

Название

Примечание

Количество

201608C95

KNOTTER

ASSY, LH

1шт.

201646C95

KNOTTER

ASSY, RH

1шт.

1

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8/32 x 3/16 znd pan-hd slt mach

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

2

201629C1

LARGE PIN

BODY ASSY, twine knife

1шт.

3

201632C1

SHIM

knife body (as required)

3шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z (as required)

1шт.

4

201625C1

DISC

DISK, cord holder front

1шт.

5

201626C1

CLEANER

cord holder

2шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

10-24 x 1 znd slt-f-hd mach

4шт.

6

201622C1

SPACER

cord holder disk

2шт.

7

201624C1

DISC

DISK, cord holder center

1шт.

8

201623C2

DISC

DISK, cord holder rear

1шт.

9

201621C1

HUB

cord holder disk

1шт.

10

202015C2

SET SCREW

SCREW, 1/4-20 x 3/8 hex-soc half dog pt set w/nylon pellet

2шт.

11

201627C1

SHIM

cord holder tube 24 ga (as required)

1шт.

12

V618H

SPACER

PIECE, knotter frame wearing

1шт.

117898

PIN

5/32 x 1-1/16 sq-end str

1шт.

13

667563R2

CAM

knotter jaw closing

1шт.

14

U13033

SPRING

knotter closing cam

1шт.

15

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex lock

1шт.

16

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

17

19630R91

LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive

FITTING, 1/8-27 PTF 90 deg angle self tap lub

1шт.

18

667239R1

DISC

SHIM, knotter hook shaft (as required)

3шт.

19

495197R4

GEAR

PINION, bill hook

1шт.

20

Q3854

PIN

knotter pinion

1шт.

21

495192R3

GEAR

PINION, cord holder drive bevel

1шт.

22

202207C1

SHIM

cord holder spindle

1шт.

23

201634C1

GUIDE

FOLLOWER ASSY, cam

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

201705C2

CLIP

spring

1шт.

25

201633C1

ARM

acutating LH

1шт.

25

201647C1

ARM

acutating RH

1шт.

17176R1

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

26

201617C1

TUBE,0.507" ID, 1.4" OD, 2.88" Length

cord holder helical

1шт.

27

202205C1

SHIM

cord holder tube 24 ga (as required)

1шт.

28

201628C1

SHIM

cord holder tube .010 (as required)

2шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF str self tap lub

3шт.

30

201611C1

BUSHING

knotter disk shaft

1шт.

31

201609C95

FRAME

W/BEARING PIECE, bushing and cap bolts, knotter

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

2шт.

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 znd hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

15/32 x 7/8 x 7 ga C-Z

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

32

201734C1

GUIDE

needle

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 znd hex-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga (as required)

2шт.

33

131DS

SPRING

keeper pressure

1шт.

34

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 spec taper drive thd lub

1шт.

35

201612C91

HOOK

ASSY, knotter

1шт.

36

313678R1

SPRING

twine end retainer helper, use with 201609C93

1шт.

36

204716C1

SPRING

twin end retainer helper, use with 201609C95

1шт.

37

201637C2

SPRING

twine end retainer, use with 201609C93

1шт.

37

204714C1

SPRING

twine end retainer, use with 201609C95

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

1шт.

38

201642C1

BUSHING

PIVOT, keeper blade

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

39

201643C1

SCREW

keeper blade adjustment

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 cdp hex. lock

1шт.

NLS

NO LONGER SERVICED

5/16-18 znd hex. jam

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z (as required)

2шт.

40

201638C1

HOLDER

KEEPER ASSY, cord holder

1шт.

41

667533R1

BOLT,3/8" - 16 x 2 7/8"

3/8-16 x 2-7/8 znd special knotter jam cam

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

42

202206C91

SHAFT

AND PINION ASSY, cord holder drive

1шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

15/32 x 7/8 x 7 ga C-Z

1шт.

LEC271506

SHIM

7/16-20 znd hex.

2шт.

Q5066

PIN

.1905 x 31/32 str

1шт.

21810R1

WASHER

19/32 x 15/16 x 22 ga C-Z

1шт.

21811R1

WASHER

19/32 x 15/16 x 20 ga C-Z

2шт.

43

(Not serviced separately)

1шт.

44

666515R1

PIN

knotter hook jam

1шт.

45

201613C91

HOOK

JAM ASSY, knotter hook

1шт.

46

204715C1

SHEET

PAD, shim, for use with frame, 201609C95

1шт.

47

NLS

NO LONGER SERVICED

SCREW, 1/2-13 x 1-1/2 sq-hd dog-pt set, for use w/frame, 201609C93

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

21739R1

WASHER

.344 x .562 x .054

1шт.

47

204717C1

ADJUSTMENT SCREW

spring adjusting, for use w/frame, 201609C95

1шт.
