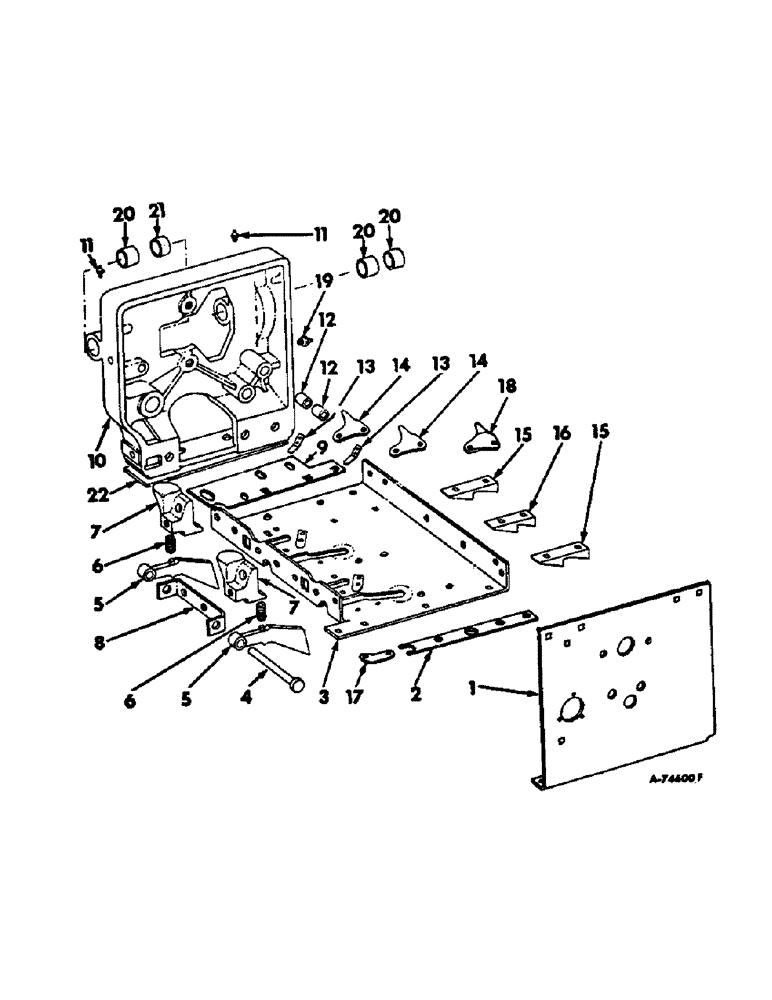

Запчасти Case IH 440 (F-31) - KNOTTER DRIVE FRAME AND BREAST PLATE, FOR TWINE BALERS

1

674100R2

SUPPORT

knotter shaft brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znp sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znp

2шт.

2

202584C1

LARGE PLATE

FILLER, breast plate LH

1шт.

3

667779R31

PLATE

ASSY, breast

1шт.

4

22803R1

PIN,1/2" x 9 1/4"

1/2 x 9-1/4 C-Z std hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

5

662007R2

RETAINER

hay

2шт.

6

668869R1

SPRING

hay retainer

2шт.

7

662009R4

ANCHOR

knotter

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

8

662146R1

BRACKET

hay retainer pivot upper

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

202585C2

FILLER

breast plate RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znp sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znp

2шт.

10

667810R21

FRAME

W/BUSHING, knotter drive

1шт.

189619R1

BOLT, 5/8 x 2-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

12

667811R1

BUSHING

trip arm stud

2шт.

13

662112R1

SPRING

twine retainer

2шт.

216378

RIVET

1/4 x 7/16 znp csk-hd small solid

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

19009R1

CARRIAGE BOLT,#3, 5/16" - 18 x 1 1/2", Gr 2

BOLT, 5/16 x 1-1/2 znd no. 3 plow

2шт.

19007R1

PLOW BOLT,#3, 5/16" - 18 x 1", Gr 2

BOLT, 5/16 x 1 plow

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

204631C91

FINGER

W/RIVETS, base plate, replaces 495412R71 and 668975R12

2шт.

216380

RIVET

1/4 x 7/8 znp csk-hd small solid

4шт.

123821

RIVET

1/4 x 5/8 znp csk-hd small solid

4шт.

15

495929R2

WEDGE

hay retainer narrow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

495930R1

WEDGE

hay retainer wide

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

17

STRIP, base plate wear, see note A, not for service, for service order 204017C92

2шт.

113225

RIVET,Csk, 3/16" x 9/16"

3/16 x 9/16 90 deg csk-hd

4шт.

18

FINGER ASSY, breast plate, see note A, 668975R12 replaced with 204631C91

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap, lub

1шт.

20

674263R1

BUSHING

packer crank

3шт.

21

674263R1

BUSHING

packer crank

1шт.

22

674101R1

FILLER

knotter drive frame upper

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20803R1

WASHER

13/32 x 1 x 16 ga C-Z, see note A, long wear part

2шт.

204017C92

STRIP

BREAST PLATE WEAR STRIP PKG., consists of

1шт.

PAD, breast plate wear, replaces strip, breast plate wear

2шт.

113225

RIVET,Csk, 3/16" x 9/16"

3/16 x 9/16 90 deg csk-hd solid

4шт.

204226C92

KNOTTER DISK SERVICE PKG., consist of

1шт.

1

201623C2

DISC

DISK, cord holder rear

2шт.

2

313678R1

SPRING

twine end helper

2шт.

3

201637C2

SPRING

twine end retainer

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znd

2шт.
